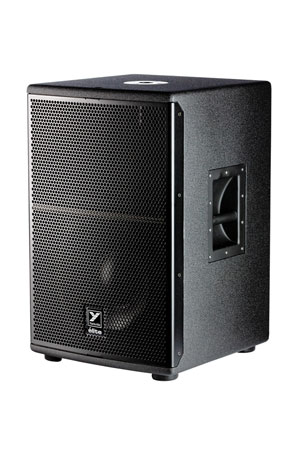

Yorkville ES12P

Elite 12" Powered Subwoofer

The ES12P is a premium subwoofer with an integrated amplifier. Featuring a 12-inch driver and 2400 watts of peak power, this active sub produces an astonishing amount of low end to extend the range of your sound system.

It joins the Elite lineup of subwoofers to offer a compact, accessible solution for club and concert settings. The ES12P enclosure was meticulously designed to be nearly 25% lighter than the 15-inch ES15P while preserving the series' signature punch.

Suitable for touring or fixed installations, the cabinets are constructed of 15 mm 11-ply Baltic birch, with rugged internal bracing to reduce resonance and increase durability, and finished with anti-resonant metal grilles.

With proprietary DSP-based limiters, three DSP-based voicing options, link ports to easily connect multiple ES Series speakers, and Bluetooth control using the free companion app, the ES12P blends classic performance, modern convenience, and uncompromising sound.

Features

• 2400 W Peak Power (1200 W Program)
• Custom-Designed 12" Woofer with 4" Voice Coil
• Proprietary DSP-Based Limiters
• 3 DSP-Based Voicing Modes (Punchy, Smooth, Deep)
• iOS and Android App for Added Subwoofer Control
• Made in Canada

Specifications

• System Type Rear Horn Loaded Powered Subwoofer
• Power Rating 2400 W Peak (1200W Program)
• Max SPL 132 dB Peak (126 dB Continuous)
• Frequency Response (Hz +/- 3dB) 48 Hz - 150 Hz
• Driver Configuration 12"
• LF Driver(s) 12" Cast Frame Woofer with 4" Voice Coil, +/- 15mm Max Travel
• LF Protection Thermal / Overcurrent (X-max) / Clip
• Power Consumption 120 V (4.0 A / 5.6), 230 V (2.0 A / 2.8)

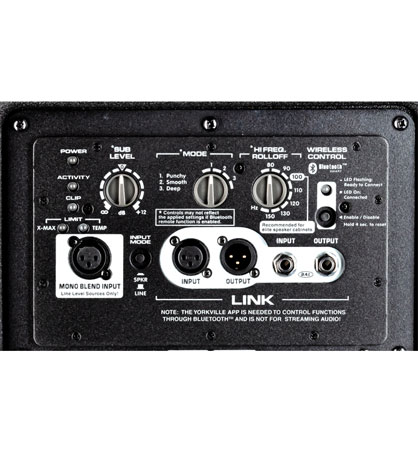

• Outputs 1/4" Link Output, XLR Link Output
• Inputs - 1/4 IN Jacks Link Input
• Inputs - XLR Link Input, Mono Blend Input
• Controls Mode Control (Punchy, Smooth, Deep), High Frequency Rolloff (10 Hz Steps from 80 Hz to 150 Hz
• Level Controls Master - Sub Level
• LED Indicators Power, Activity, Protection (Clip, X-Max, Temp), Bluetooth
• Bar Handles 2 (1 Left Side, 1 Right Side)
• Pole Mount Adapter (1 3/8 1 (Top)
• Enclosure Materials 15 mm (5/8") 11-ply Russian Birch
• Grille Perforated Metal
• Covering / Finish Black Ultrathane Paint
• Dimensions (DWH) 17" x 17" x 27" (43 cm x 43 cm x 68.6 cm)
• Weight 85 lbs / 38.5 kg
