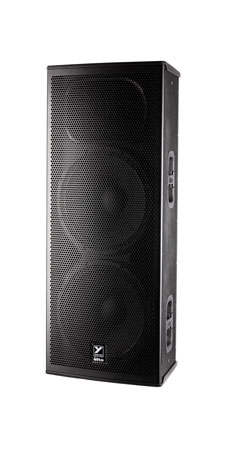

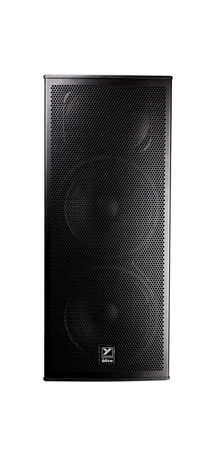

Yorkville EF215P

Elite 2x15" Powered Loudspeaker

The EF215P is a 2-way active loudspeaker with innovative processing. It is the only double 15-inch cabinet in the Elite series, and offers the best low-frequency projection of any full-range loudspeaker in the Yorkville catalog. It has been meticulously designed to sound absolutely massive.

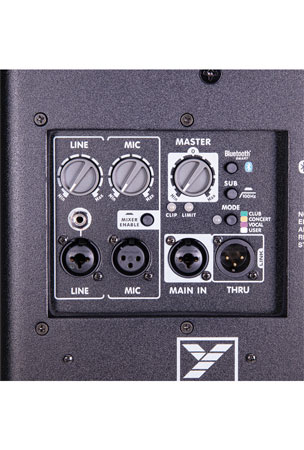

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4" TRS line level connections. An internal mixer can be engaged to add 1/8" TRS and 1/4" TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn't required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 15-inch woofers, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.

Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 95 pounds while maintaining classic Elite ruggedness and durability.

The multi-angle enclosure, pioneered for the Elite line, enables the EF215P to operate vertically on a stand or horizontally as a stage monitor.

Features

• 2400 W Peak Power (1200 W Program)
• 2x 15" Neodymium Woofers with 3" Voice Coils
• 3" Titanium-Diaphragm Compression Driver
• Multiband DSP Limiting with 4 Preset Playback Performance Modes
• iOS and Android App for Added Cabinet Control
• ABS-Coated Birch Plywood Cabinet Construction
• Made in Canada

Specifications

• System Type Powered Loudspeaker
• Active or Passive Active
• Power Rating 2400 W Peak (1200 W Program)
• Max SPL 133 dB Peak (127 dB Continuous)
• Frequency Response (Hz +/- 3dB) 43 Hz - 16 kHz
• Crossover Frequency 1100 Hz
• Driver Configuration 2x 15" / 3"
• HF Driver(s) 3" Voice Coils (Titanium Diaphragm)
• HF Dispersion (°H x °V) 60° x 40°
• LF Driver(s) 15" Neodymium Magnets with 3" Voice Coils
• LF Power Amplifier (Watts) 900 W
• LF Amplifier Type Class D
• Power Cable Removeable IEC
• Power Switch YES
• In / Out Connections 1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru
• Inputs 1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input
• Input Impedance (Bal/UnBal) 95KO / 90KO
• Input Sensitivity (Vrms Sine) +4 dBv / 1.23 V
• Controls Mixer Enable, DSP Mode (Club, Concert, Vocal, Custom), Bluetooth Enable, Sub (100 Hz HP Filter)
• Level Controls Mic Input Level, Line Input Level
• Master Volume Control Yes

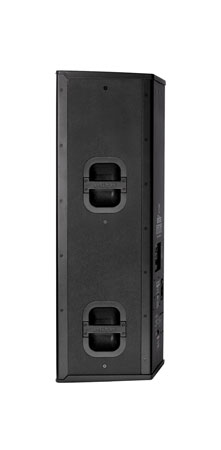

• Bar Handles 5 (2 Each Side, 1 Top)
• Flypoints 8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback
• Flying Hardware 1/4 - 20
• Pole Mount Adapter (1 3/8 No
• Enclosure Materials ABS Coated Baltic Birch Plywood
• Grille Perforated Metal
• Dimensions (DWH) 14" x 18.5" x 44.5" (35.5 cm x 47 cm x 113 cm)
• Weight 93 lbs / 42 kg
