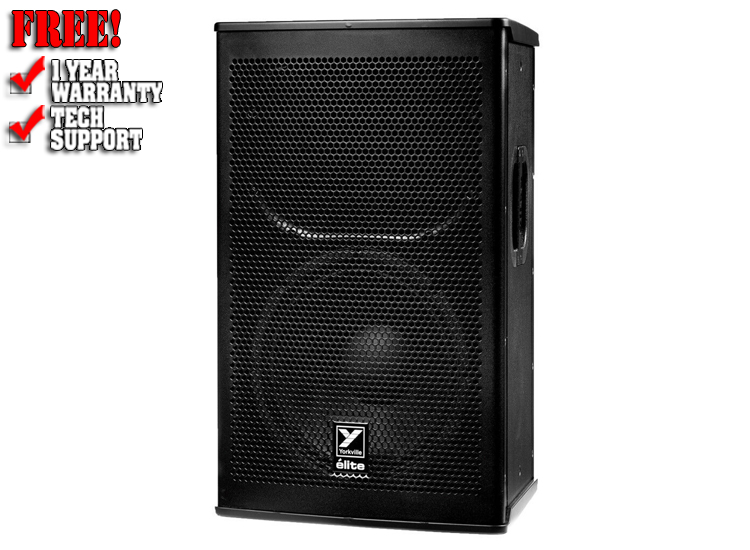

Yorkville EF12P Active 12" Powered PA Speaker 2400W Amplified Elite Series

Features:

• High Output, High Quality and extremely durable Dedicated Front of House box
• Completely Redesigned Next Generation Elite Cabinet
• ABS Coated Birch Plywood Cabinet Construction
• Multiband DSP Limiting with 4 Preset Playback Performance Modes
• 3-inch Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
• 12-inch Neodymium Woofer with 3-inch Voice coil
• iOS and Android App for Added Cabinet Control (Coming Soon)

Specifications:

• System Type : 2-Way
• Active or Passive : Active
• Program Power (Watts) : 1200 Watts (2400 Watts Peak)
• Max SPL (dB) : 131dB Peak (125dB Continuous)
• Frequency Response (Hz +/- 3dB) : 47 - 16k (Hz +/- 3dB)
• Crossover Frequency (Hz) : 1100
• Driver Configuration : 12-inch, 3-inch Diaphragm
• HF Driver(s) : 3-inch Voice coil (Titanium Diaphragm)
• HF Dispersion (°H x °V) : 60x40
• LF Driver(s) : 12-inch Neo magnet w/3-inch Voice coil
• HF Power Amplifier (Watts) : 300
• HF Amplifier Type : 3-Tier High Headroom
• LF Power Amplifier (Watts) : 900
• LF Amplifier Type : Class-D
• Power Cable : 25 ft (7.6m) Heavy Gauge Detachable IEC
• • In / Out Connections : 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
  • 1 x XLR microphone Input
  • 1 x XLR & 1/4-inch Combi-jack Main Input
  • 1 x XLR-M Thruput
• Input Impedance (Bal/UnBal) : 95KOhms / 90kOhms
• Input Sensitivity (Vrms Sine) : +4dBv / 1.23V
• • Controls : Mixer Enable
  • Mic Input w/level
  • Line Input w/level
  • DSP Mode (Club, Concert, Vocal, Custom)
  • Sub (100Hz HP Filter)
  • Bluetooth Control Enable
  • Master Level
• Bar Handles : 2 x Side / 1 x Top
• Flypoints : 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
• Pole Mount Adapter (1 3/8"-3.5cm) : 1 Bottom (1 3/8-inch / 3.5cm)
• Enclosure Materials : ABS Coated Baltic Birch Plywood
• Dimensions (DWH xbackW, inches) : 14.5 x 18.6 x 28.2 x 11.1
• Dimensions (DWH xbackW, cm) : 36.8 x 47.25 x 71.6 x 28.2
• Weight (lbs/kg) : 59 / 26.8
