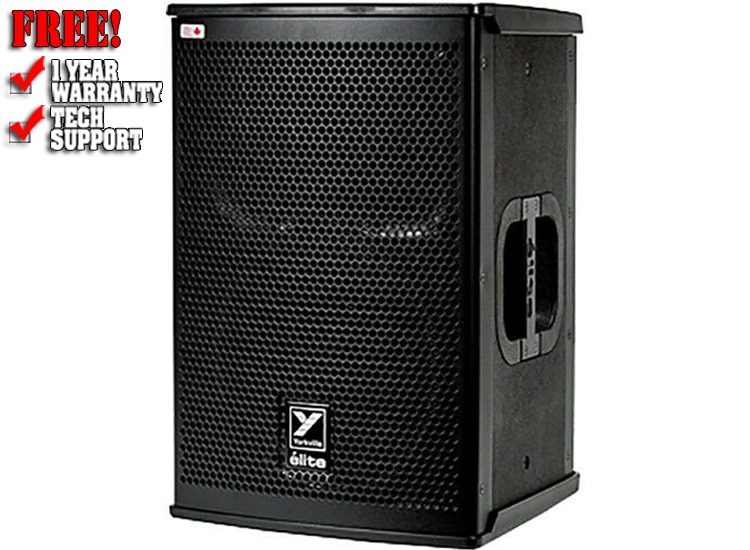

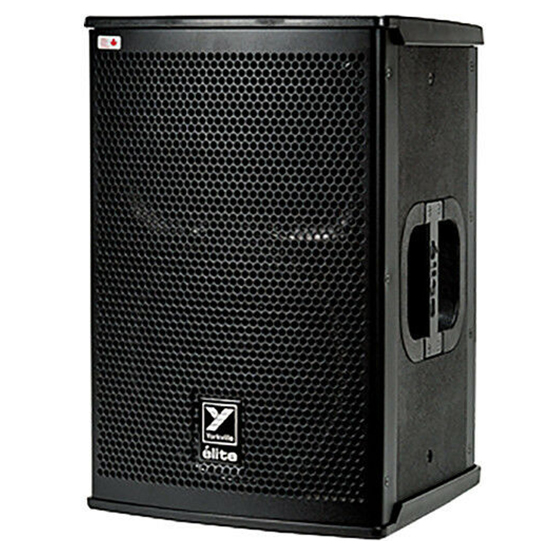

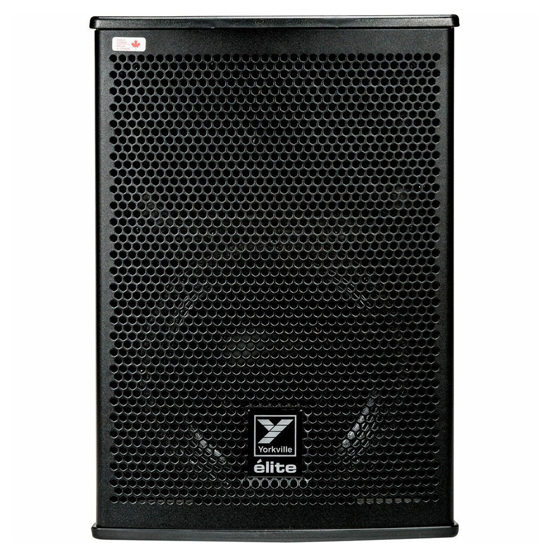

Yorkville EF10P Elite Series 10" 1200 Watts 2-Way Active PA Pro DJ Loud Speaker

Building upon the success of the original Elite series, the Yorkville EF10P is a powered, full-range loudspeaker with an integrated mixer, DSP, and Bluetooth control app. The unit utilizes a bi-amp module which delivers 500W to the 10" neodymium woofer and 100W to the 1.5" titanium compression driver; combined, they deliver a frequency response of 48 Hz to 20 kHz with a maximum SPL of 129 dB peak.

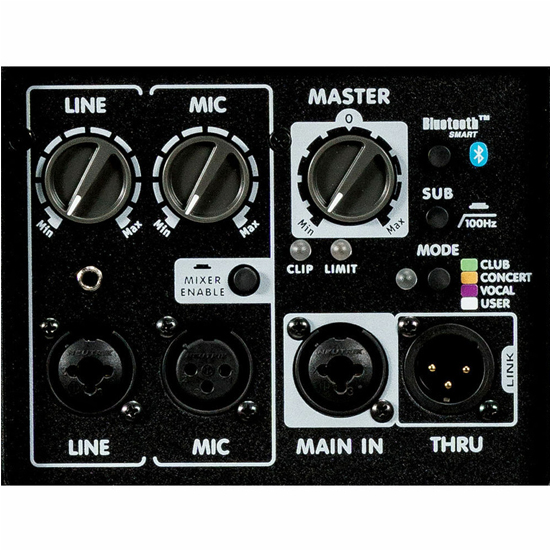

The rear panel offers a variety of inputs and outputs including a combination XLR-1/4" line input, an 1/8" TRS line input, and an XLR mic input. Additionally, there is a combo XLR-1/4" main input and an XLR thru output for connecting additional loudspeakers (up to 16). The built-in DSP offers four voice modes including club, concert, vocal, and user which is accessed and controlled via the free Yorkville control app available for iOS and Android. The Yorkville EF10P includes a 25' IEC power cord.

Features:

• For Live Stage, Theatre, DJ Setups
• 10" Neodymium Woofer
• 1.5" Titanium Compression Driver
• Frequency Response: 48 Hz to 20 kHz
• Bi-Amp Power Module: 600W
• Multiband DSP Limiting
• Four Playback Performance Modes
• Bluetooth Control App
• ABS-Coated Birch Plywood Enclosure
• Includes 25' Power Cord
• Redesigned Elite 600W front of house loudspeaker
• ABS-coated birch plywood cabinet construction
• Multiband DSP limiting with four playback performance modes
• Club
• Concert
• Vocal
• User
• 100 Hz HPF for use with subwoofer
• 1.5" titanium-diaphragm compression driver
• 10" neodymium woofer with 2.5" voice coil
• iOS and Android app for added cabinet control
• Connectors
• Mic Input: XLR
• Line Input: XLR-1/4" combo + 1/8" TRS
• Main Input: XLR
• Main Thruput: XLR

Specifications:

• Type2-way
• Active or PassiveActive
• Power600 W (1200 W Peak)
• Max SPL Level129 dB peak (123 dB continuous)
• Frequency Response48 Hz to 20 kHz (±3 dB)
• Crossover Frequency1.4 kHz
• DriversLF: 10.0" / 254.0 mm with neodymium magnet and 2.5" / 63.5 mm voice coil
• HF: 1.5" / 38.1 mm voicecoil (titanium diaphragm)
• Dispersion90° H x 30° V
• AmplifierHF Power Amplifier: 100 W
• HF Amplifier Type: 2-tier high headroom
• LF Power Amplifier: 500 W
• LF Amplifier Type: Class-D
• ConnectorsLine: 1 x combo XLR-1/4" / 6.3 mm, 1 x 1/8" / 3.5 mm TRS
• Mic: 1 x XLR
• Main Input: 1 x combo XLR-1/4" / 6.35 mm Thruput: 1 x XLR-M
• Input ImpedancesBalanced: 95 kOhms
• Unbalanced: 90 kOhms
• Input SensitivityInput Sensitivity (Vrms Sine): +4 dBv / 1.23 V
• ControlsMixer enable
• Mic input with level
• Line input with level
• DSP Mode: Club, Concert, Vocal, Custom
• Sub: 100 Hz HP filter
• Bluetooth Control: Enable
• Master level

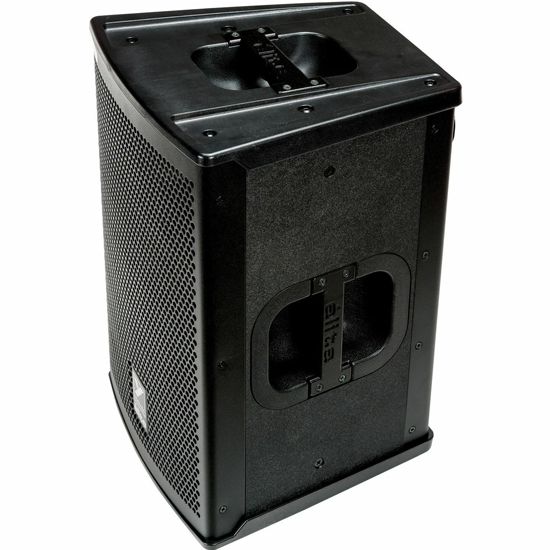

• Handle1 x side
• 1 x top
• MountingFlypoints: 8 x 0.25" / 6.35 mm-20 (2 x top, 2 x bottom, 2 x each side) + 1 pullback (back)
• Pole Mount Adapter: 1-3/8" / 3.5 cm
• Enclosure MaterialABS coated Baltic birch plywood
• Dimensions (D x W x H)13.0 x 13.7 x 20.0" / 33.0 x 34.8 x 50.8 cm
• Back Width: 11.1" / 28.2 cm
• Weight43.0 lb / 19.5 kg
