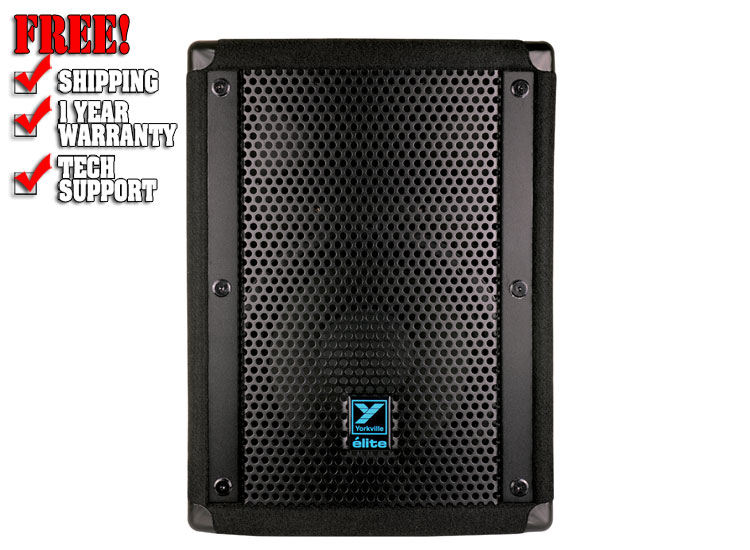

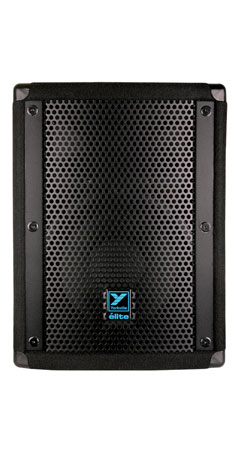

Yorkville E10P

Elite 10" Powered Loudspeaker

The E10P is a compact 2-way active speaker with innovative processing. Use it as a front-of-house loudspeaker, personal monitor wedge, or self-contained compact PA for paging and playback with no mixer required.

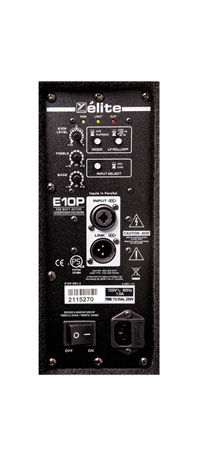

The input jack accepts XLR or 1/4" TRS connections, and the Input Select switch toggles between mic and line levels to accommodate a variety of sources.

Expanding the system is easy. The Link jack allows the connection of up to ten E10Ps, and the switchable low-frequency rolloff means an external crossover isn't required when using a subwoofer. The Live/Playback switch changes the EQ and limiting behaviour, optimizing the sound for your application.

Live mode emphasizes vocal frequencies and is tuned for live performance, while Playback mode is voiced for pre-recorded music. A 300-watt amplifier powers the 10-inch woofer, and a two-tier 50-watt amplifier drives the 1-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.

Despite its power, the E10P is refreshingly lightweight. The Class D amplifier, neodymium speaker magnet, and birch construction keep the total weight below 35 pounds while maintaining classic Elite ruggedness and durability.

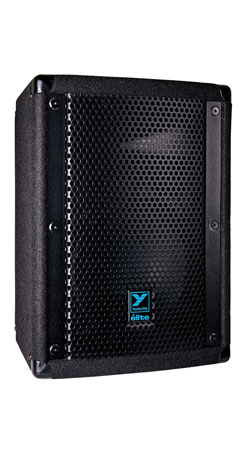

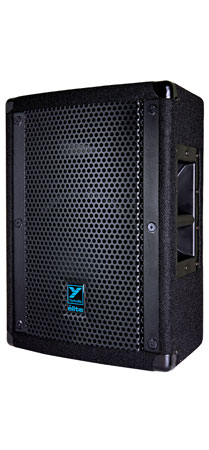

The multi-angle enclosure, pioneered for the Elite line, enables use vertically on a stand or horizontally as a stage monitor.

Features

• 700 W Peak Power (350 W Program)
• 10" Woofer / 1" Compression Driver
• Combi-Jack XLR and 1/4" Input
• 2-Band EQ with LF Rolloff and Live/Playback Mode Switch
• Solid 5/8" (15 mm) Birch Plywood Construction
• Integrated All-Metal Speaker Standmount Adapter
• Made in Canada

Specifications

• System Type Powered Loudspeaker
• Power Rating 700 W Peak (350 W Program)
• Max SPL 129 dB Peak (123 dB Continuous)
• Frequency Response (Hz +/- 3dB) 65 Hz - 20 kHz
• Crossover Frequency 1500 Hz
• HF Driver(s) 1"
• HF Dispersion (°H x °V) 100° x 25°
• HF Protection Peak and Average Limiting
• LF Driver(s) 10"
• LF Protection Excursion, RMS
• Cooling Scheme Convection
• Inputs 1 Combi-Jack (XLR / 1/4")
• Input Impedance (Bal/UnBal) 4KO / 2KO
• Input Sensitivity (Vrms Sine) Line In 1.4 at Center, 0.35 at Max
• Level Controls Gain
• EQ Controls Bass, Treble
• Master Volume Control Yes
• Limiter Peak and Average Limiting on Horn and Woofer
• LED Indicators Power, Clip
• Other Controls / Features Live / Playback Modes / LF Rolloff
• Corners Metal
• Bar Handles 1 (Side)
• Flypoints 4 (2 Top, 2 Bottom), 1 Pullback
• Flying Hardware 1/4" Threading
• Pole Mount Adapter (1 3/8 1 (Bottom)
• Enclosure Materials 15 mm (5/8") 11-ply Russian Birch
• Port(s) Rear
• Grille Perforated Metal
• Covering / Finish Black Ozite (Carpet)
• Dimensions (DWH) 12" x 13" x 18.5" (30 cm x 33 cm x 45 cm)
• Weight 34 lbs / 15.5 kg
