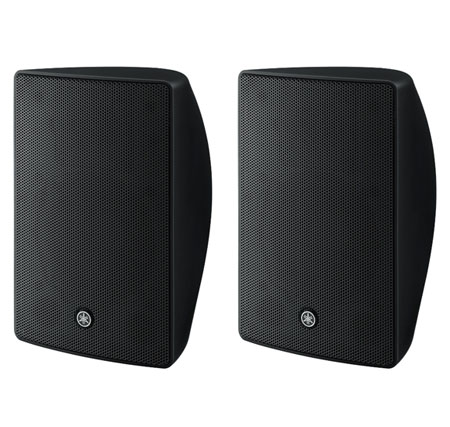

Yamaha VXS5

Minimalist design with an eye toward function

In the design of the VXS Series, Yamaha hit the nail on the head with a merger of sleek, elegant enclosure and intuitive functionality. Not only does the external design look alluring, but the VXS Series shines with features like hexagonal grilles that improve sound clarity, pan and tilt after installation, and paintable enclosures. Mount these excellent speakers to the wall or ceiling and revel in the superb sound quality and attractive design.

Features

• High-quality sound for commercial applications in a sleek, elegant speaker design
• Perfect for shopping malls, meeting spaces, restaurants, and more
• High-impedance and low-impedance connections are supported; easily switch between the 2 once installed
• 2-way system with 5.25-inch woofer and 0.75-inch tweeter outputs clear, high-quality sound
• Bass reflex design enhances the low frequency via a tuned port
• Paintable exterior to match any space
• Designed for safe and easy installation

SPECIFICATIONS

• Powered: No
• Power Configuration: 2-way
• Quantity: Pair
• LF Driver Size: 5.25" cone driver
• HF Driver Size: 0.75" soft dome tweeter
• Power Rating: 150W Program
• 70V/100V Output: 70V/100V: 30W, 15W, 7.5W, 3.8W (70V only)
• Impedance: 8 ohms
• Inputs: 1 x 4-pin Euroblock
• Frequency Range: 62Hz-20kHz (-10dB)
• Crossover Frequency: 3kHz
• Maximum Peak SPL: 114dB
• Horizontal Coverage Angle: 120 Degrees
• Vertical Coverage Angle: 120 Degrees
• Enclosure Material: ABS
• Application: Indoor
• Mounting Options: Wall-mount
• Height: 11"
• Width: 6.9"
• Depth: 6.4"
• Weight: 7.9 lbs.
