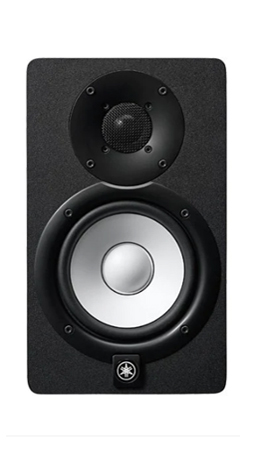

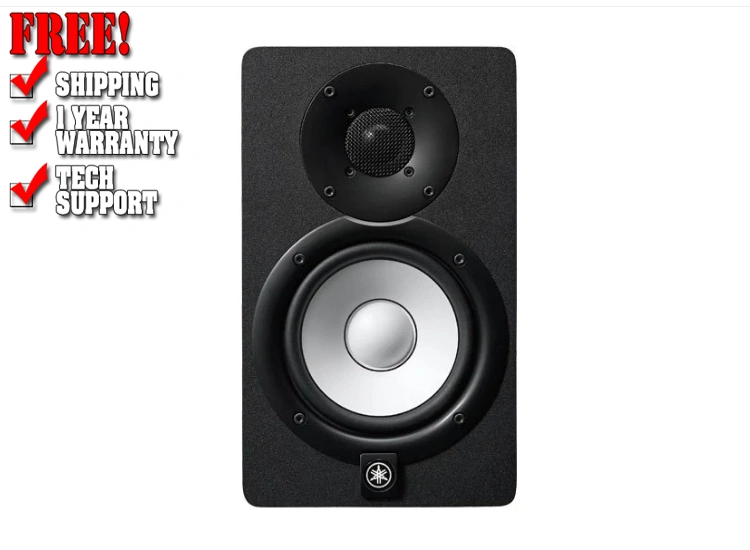

Yamaha HS5

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
• 54Hz - 30kHz frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Sound Philosophy of HS Series Studio Monitors

When selecting studio reference monitors for mixing and music production, one consideration takes precedence above all others - accuracy.

Beginning with the legendary NS-10M, and continuing with the MSP and previous HS Series, this new lineup shares a design philosophy that emphasizes sonic purity without any coloring or alternation of the original sound. While many manufacturers seek to enhance the sound of their monitors to make them sound impressive, Yamaha studio monitors are designed to achieve the best possible mix by ensuring that the sound from your speakers is true to the original. HS Series nearfield reference monitors are the embodiment of this philosophy, delivering a concise sound image, high resolution, and flat response.

Newly Developed Transducers

The HS Series features newly developed transducers that achieve astonishingly smooth response over a wide range of bandwidth. These transducers utilize an advanced magnetic field design that regulates the flow of magnetic response to provide seamless, natural sonic transitions. Each component's materials and design were carefully re-examined, then optimized, to drastically improve the accuracy of signal reproduction throughout the audio spectrum.

Tweeter

The HS Series features a newly designed, highly efficient 1" dome tweeter that extends the usable frequency range considerably and delivers superb high-resolution sound. Utilizing a thick wave guide designed to minimize vibration the new tweeter is able to deliver smooth, distortion-free high end up to 30 kHz.

Woofer

With newly designed, ultra-responsive woofers that utilize large, carefully selected magnets, HS Series monitors produce low distortion sound with a well-defined bottom end at any output level. All of the components in these high-power woofers, including the woofer ring and the basket further contribute to the HS Series' stunning bass while providing clear, accurate mids.

High Performance Amp Unit

HS Series speakers employ an amplifier unit perfectly matched to the transducers utilized in each model of the series. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker consistently delivers high-resolution sound with exceptionally flat response across the sound spectrum.

General specifications

• Speaker type 2-way bi-amp powered studio monitor
• Frequency range (-10dB) : 54Hz - 30kHz
• Components : LF 5" cone
  HF 1" dome
• Crossover : 2kHz
• Output power : 70W (LF:45W, HF:25W)
• I/O connectors : XLR3-31 type (balanced), PHONE (balanced)
• Power consumption : 45W
• Shape : Bass-reflex type
• Cabinet material : MDF
• Dimensions W : 170mm (6.7")
• H : 285mm (11.2")
• D : 222mm (8.7")
• Net weight : 5.3kg (11.7 lbs.)
• Others : LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
