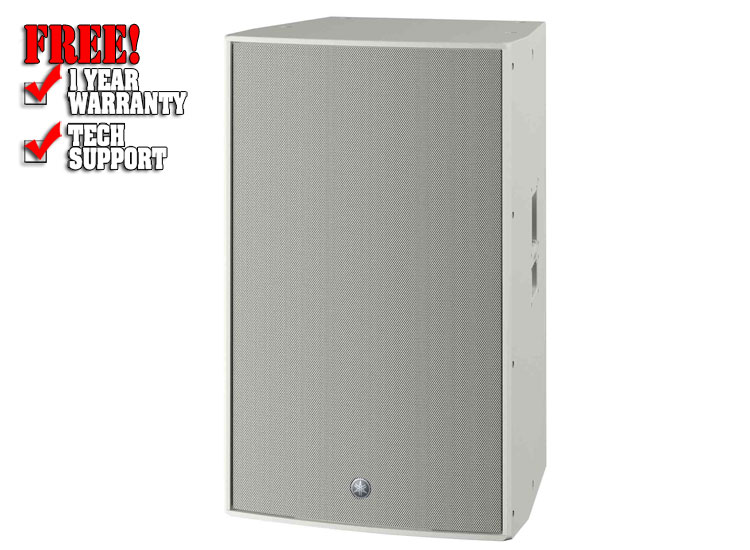

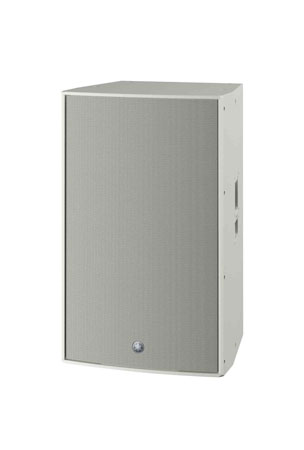

Yamaha DZR315W 15" 2000W 3-Way Bi-Amped White Powered Loudspeaker

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction-the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction- the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha's accrued sound reinforcement, acoustics, and signal processing technology expertise-particularly with the introduction of our Dante-enabled models-DZR represents Yamaha's first fully-integrated, smart/editable speaker range of professional, powered loudspeakers. Not for the faint of heart, the newest DXS XLF's go deeper than any model before, with an extended low frequency of 30Hz- perfect for professional touring musicians, DJ's, and sound engineers who need that extra-low, thundering bottom end that you just can't get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.

96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha's newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation. An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF Series in combination. Users can easily transfer saved settings to a USB flash drive. D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality. A perfect complement to the DZR's versatile cabinet design, D-CONTOUR provides two different settings, FOH/MAIN or MONITOR mode, offering more detailed tuning of your sound relative to your PA's configuration. FOH/MAIN mode boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors. Both of these presets were perfected by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level. One of the advantages of active loudspeakers is that the combination of transducers and amplifiers can be perfectly matched and optimized for the best possible performance. During the development of the DZR and DXS XLF Series, we measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points for each model using precise DSP control. Employing many of the same protection functions used in our high-end professional power amplifiers, our state-of-the-art DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels, to protect each component in order to maintain optimum performance while extending component life and usability.

Yamaha DZR315W 15" 3-Way White Powered Speaker Features:

• 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF.
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA.
• High power 2000W Class-D amplifier module.
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency.
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion.
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display.
• D-Contour and highly reliable protection circuits.
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating.
• Optional speaker cover (SPCVR-DZR315.)
• Durable White finish.

Yamaha DZR315W Specifications:

General specifications

• Speaker type 3-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB) 31Hz - 20kHz
• Coverage area H75° x V50°

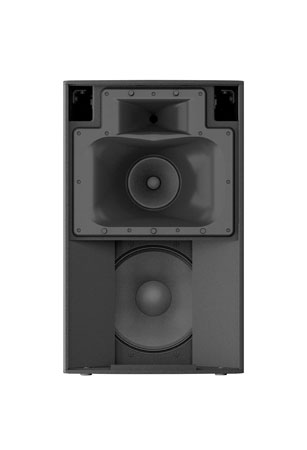

• Components LF 15" Cone, 3" Voice Coil, Neodymium magnet
  MF 8" Cone, 1.5" Voice Coil, Ferrite magnet
  HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover 700Hz (FIR-X), 2.5kHz (Passive)
• Sampling frequency rate Internal 96kHz and FIR Filter
• A/D D/A Converters 96kHz AD/DA
• Maximum output level (1m; on axis) 143dB SPL *1
• Power rating Dynamic 2000W (LF: 1000W, MF/HF: 1000W) *2
  Burst (20ms) 1100W (LF: 1000W, MF/HF: 100W)
  Continuous 950W (LF: 850W, MF/HF: 100W)

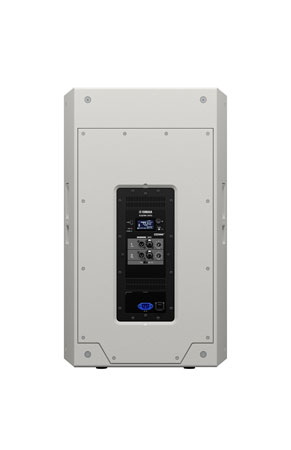

• I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
  AC IEC AC inlet x1 (V-Lock)
• Amplifier class Class-D
• Cooling Fan cooling, Variable speeds
• Power consumption 45W (Idle), 150W (1/8)
• Handle Aluminium die-cast, Side x2
• Rigging M10 x16
• Dimensions W 550 mm (21.6")
  H 897 mm (35.3") (with rubber feet)
  D 520 mm (20.5")
• Net weight 41.6kg (91.7lbs)
• Options Cover: SPCVR-DZR315
• Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
• Floor Monitor Angle -
• Pole socket -

WHAT'S IN THE BOX

Each DZR315W Retail Box Includes:

• (1) Yamaha DZR315W 15" 2000W 3-Way Bi-Amped White Powered Loudspeaker
