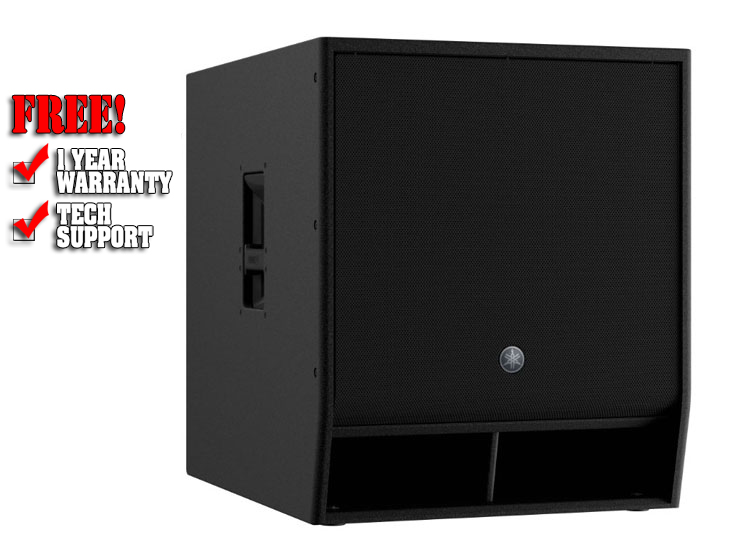

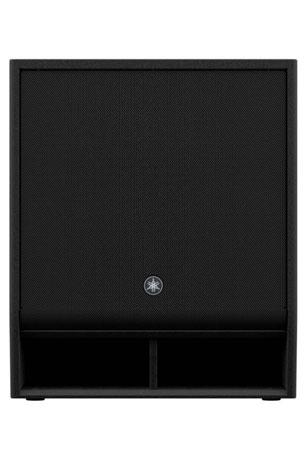

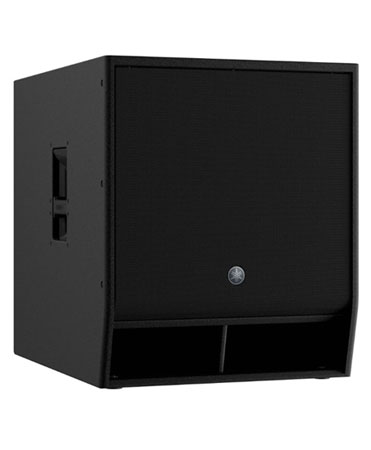

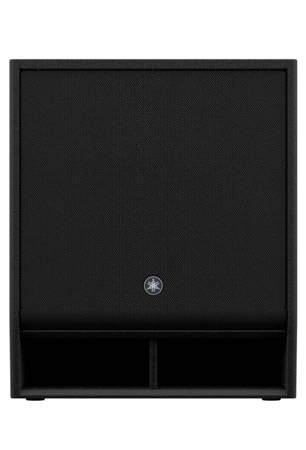

Yamaha DXS18XLF-D 1600W 18" Powered Subwoofer with Dante

Power, Performance, and Easy System Integration

The Yamaha DXS18XLF-D offers thunderous low end, superb clarity, and best-in-class SPL performance. This powered bass-reflex subwoofer boasts a high-power 1,600-watt Class D amplifier, a 30Hz-150Hz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. Built-in Dante capabilities enable smart system integration with Yamaha consoles and other Dante devices. This sub employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating. The DXS18XLF-D is a must-have for completing your full-range DZR system.

Sophisticated DSP processing

Yamaha's D-XSUB LF processing gives you total command of your low end. Choose between a NORMAL mode that offers balanced low-frequency response and a BOOST mode that provides tighter, more focused bass with extra punch. Beyond that, XTENDED LF mode drops your low-end even lower, yielding chest-thumping low-frequencies that must be heard to be believed. Ensure a clean stage monitoring environment, thanks to the DXS18XLF-D's Cardioid Mode, which effectively decreases the sound pressure onstage while increasing the low-frequency output directed towards your audience. Despite all this powerful DSP, the DXS18XLF-D remains easy to use, thanks to optimized factory presets and an intuitive LCD screen.

Custom-designed transducer

The Yamaha DXS18XLF-D is loaded with a great-sounding, custom-designed transducer. Its durable die-cast aluminum frame and 4-inch voice coil deliver impressive bass response, even at cranked volumes. Experience extraordinary low-frequency linearity, thanks to the DXS18XLF-D's dual damper, which mitigates unwanted vibration during high-output situations.

Built-in Dante capabilities

Integrating the DXS18XLF-D with Yamaha consoles and other Dante devices is a breeze. The DXS18XLF-D features a built-in 2-in/2-out Dante interface, along with sample rate conversion, allowing 48kHz device compatibility. Benefit from simplified patching with Yamaha's CL/QL digital consoles from their I/O device display, while TF console users can select Quick Config for fast, easy setup. You can also combine the DXS18XLF-D's Analog I/O with Dante I/O, supplying you with flexible routing and system configuration. Or use the Dante break-IN and break-OUT function to act as a simple I/O box. Beyond that, Yamaha's ProVisionare Control software for Windows and ProVisionare Touch for iPad are also Dante compatible, giving you added remote management of your system.

Yamaha DXS18XLF-D Features:

• Powered subwoofer with 18" LF driver
• A must-have for completing your full-range DZR system
• Boasts a high-power 1,600-watt Class D amplifier and 30Hz-150Hz frequency range
• D-XSUB LF processing gives you total command of your low end with NORMAL, BOOST, and XTENDED LF modes
• Cardioid Mode decreases stage volume while increasing the low-frequency output directed towards your audience
• Optimized factory presets and intuitive LCD screen make operation easy
• Great-sounding, custom-designed transducer
• Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices
• Dual damper ensures extraordinary low-frequency linearity during high-output situations
• Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Tech Specs

• Powered/Unpowered: Powered
• LF Driver Size: 18" Cone, 4" Voice Coil, Ferrite Magnet
• Power Rating: 1230W Continuous
• Total Power: 1600W Peak

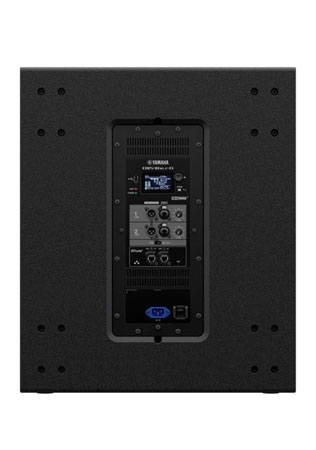

• Inputs: 2 x XLR-1/4" combo
• Outputs: 2 x XLR (thru/output)
• Other I/O: 1 x USB Type A, 2 x EtherCON (Dante)
• Frequency Range: 30Hz-150hz (-10 dB)
• Maximum Peak SPL: 136dB SPL @ 1m
• Signal Processing: EQ, Delay, Cardioid Mode, D-XSUB Processing
• Mounting Options: Floor, Pole Mount with 1.37" (35mm) and M20 sockets
• Power Source: Standard IEC AC cable
• Enclosure Material: Plywood Cabinet with Polyurea Coating, Black Finish
• Height: 25.9" (with feet)
• Width: 21.7"
• Depth: 28.3"
• Weight: 107.8 lbs.
• Manufacturer Part Number: DXS18XLF-D
