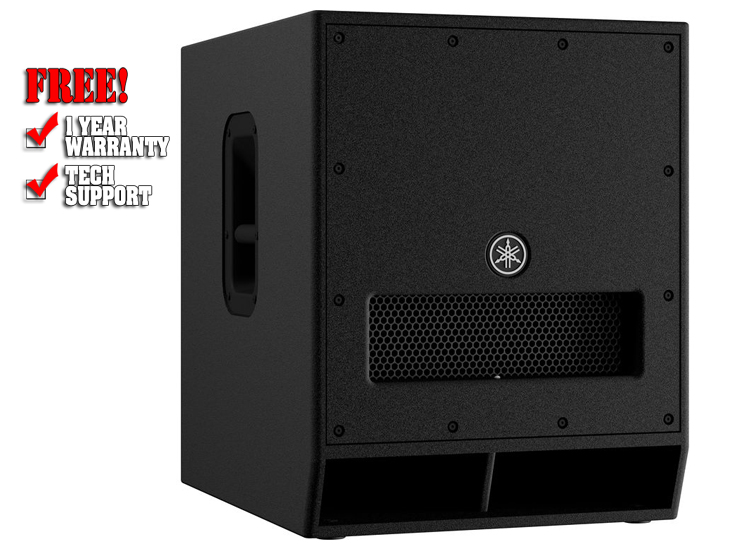

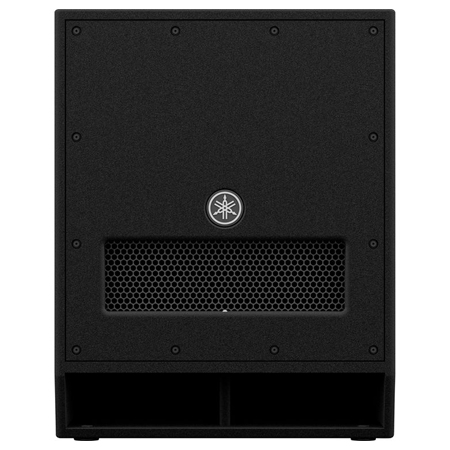

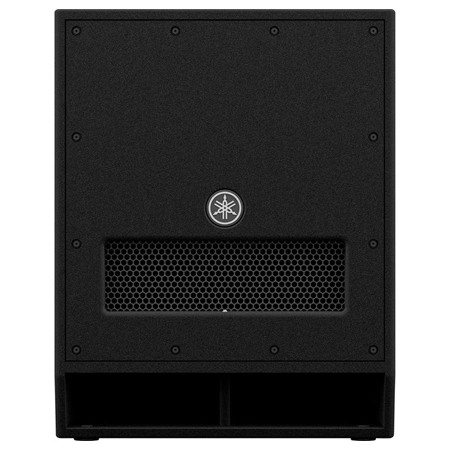

Yamaha DXS15mkII Powered Subwoofer (Black)

Description

The black DXS15mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications.

The powered subwoofer features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS15mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output.

• The DXS high-performance Class-D amplifier produces up to 1020W of power.
• The DXS15mkII features a 2.5" voice coil magnet.
• All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
• Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
• Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.

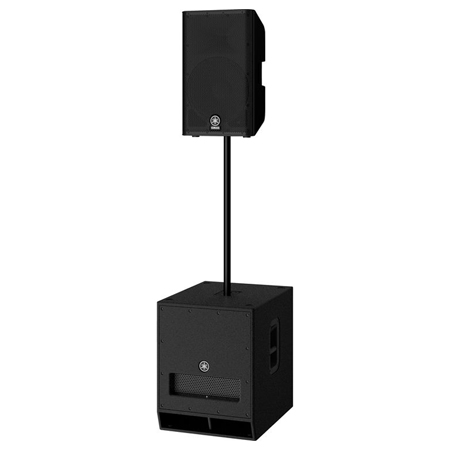

• For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.

Highlights:

• High-Efficiency 1020W Class-D Amplifier
• 15" Woofer
• 2.5" Voice Coil Magnets
• Band-Pass Type Enclosure
• Durable, Portable, and Road-Ready
• Rugged Polyurea Coating for Protection
• D-XSUB Bass Processing
• Dual Pole Socket
• Selectable X-Over 80/100/120 Hz

Specification:

• Speaker Type: 15" powered subwoofer, band-pass type
• Output Power: Dynamic: 1020 W / Continuous: 800 W
• Frequency Range: 40 Hz to 150 Hz
• Components: 15" cone, 2.5" voice coil
• Maximum Output Level: 135 dB

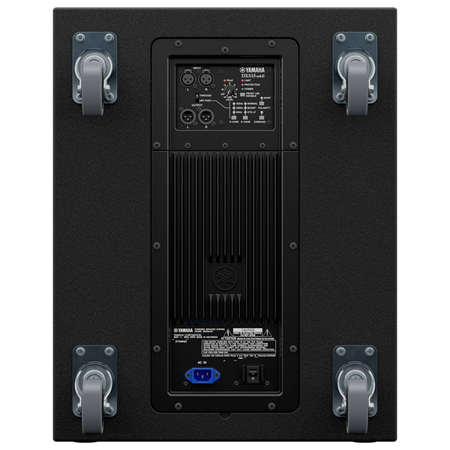

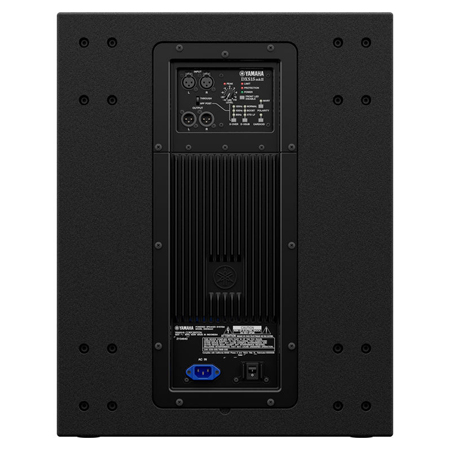

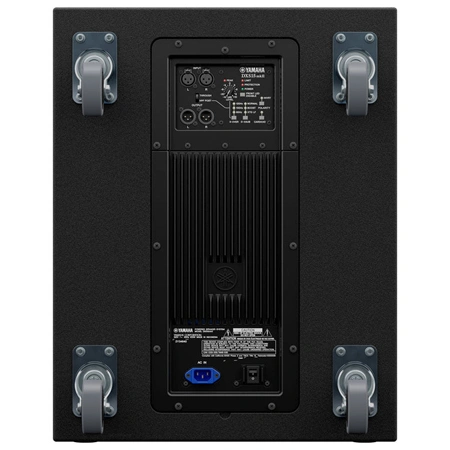

• I/O Connectors: Input: 2 x XLR3-31, Thru: 2 x XLR3-32 (through or HPF post)
• Processors: D-XSUB: Boost, Extended-LF, Normal
• Cooling: Natural convection
• Power Requirements: 100 to 240 VAC, 50 Hz/60 Hz
• Power Consumption: 100 W
• Material of Construction: Meranti plywood, polyurea coating
• Pole Socket: 1.4" / 35.0 mm (depth 3.1" / 80 mm) & M20 (threaded depth 1.0" / 25 mm)
• Dimensions (W x H x D): 18.90 x 24.06 x 24.17" / 480 x 611 x 614 mm
• Weight: 79.4 lb / 36.0 kg

Packaging Info:

• Package Weight: 88.3 lb
• Box Dimensions (LxWxH): 29.5 x 27.4 x 22.3"
