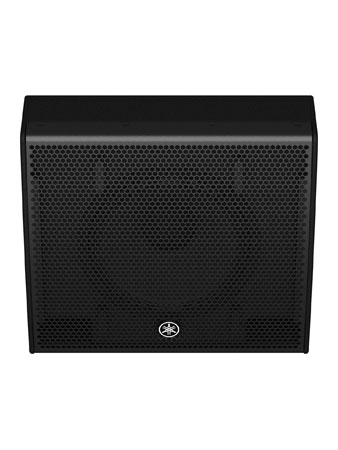

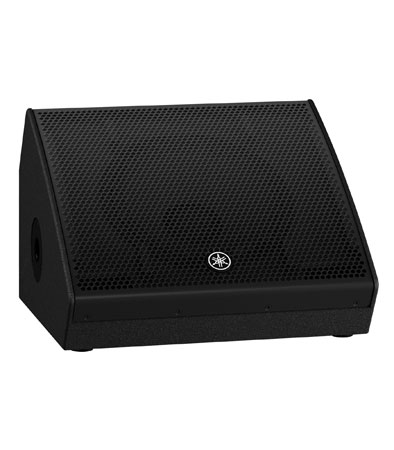

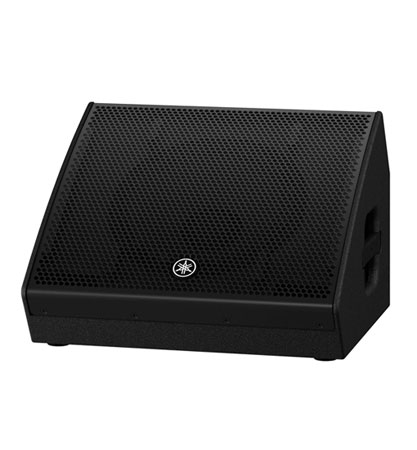

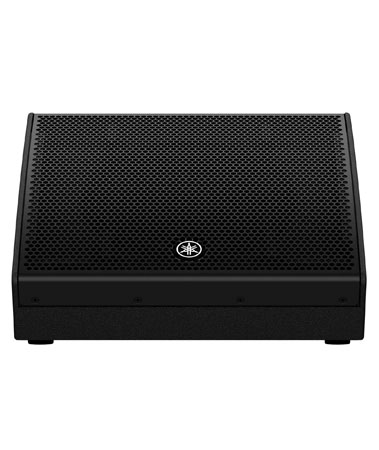

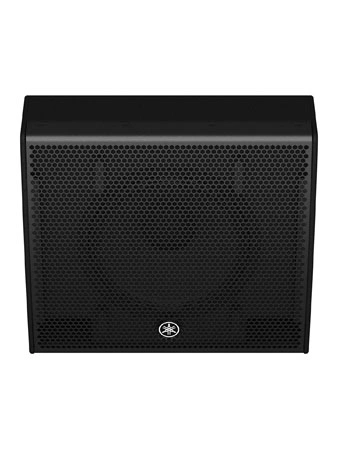

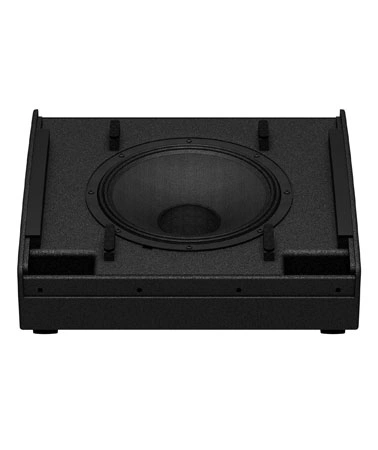

Yamaha DHR12M 1000W 12-inch Powered Loudspeaker

Clear voice reproduction and extreme musicality

Despite its compact, low-profile form factor, the DHR12M packs quite a wallop. This active loudspeaker pumps 1,000 watts of Class D power through a 1.75-inch high-frequency driver, which is coaxially mounted to a high-output 12-inch low-frequency unit. This coaxial driver design yields near-perfect phase response, making the DHR12M one of the most accurate floor monitors in its class. No matter your application, the DHR12M will exceed all expectations with a full-range 52Hz-20kHz frequency response and a rafter-shaking 129dB of maximum SPL. What's more, its 90-degree by 60-degree coverage angle ensures that every seat experiences consistent - and amazing - sound.

Full and detailed imaging from advanced FIR-X tuning

Many loudspeakers exhibit a loss of clarity and/or volume in frequencies near their crossover points, but the Yamaha DHR12M maintains clear sound thanks to advanced FIR-X crossover tuning. Utilizing ultra-precise 48-bit DSP, FIR-X optimizes frequencies and phase relationships to practically eliminate crossover distortion. The result is a smooth, balanced response around the crossover frequencies and a better-sounding performance overall.

Consistent clarity and balance at any volume

While any loudspeaker's tonal balance can vary depending on its output level, the DHR12M features Yamaha's D-Contour intelligent multiband compressor to maintain its sonic integrity at any volume. D-Contour constantly monitors multiple frequency bands and makes real-time adjustments to keep the balance consistent - it won't mess with your mix; it just ensures your mix stays the same at any volume level. And live sound engineers appreciate the flexibility to choose from two operational modes (FOH/Main or Monitor) to optimize the frequency balance depending on your application.

Yamaha DHR12M Powered Speaker Features:

• Compact loudspeaker fueled by 1000W of Class D power

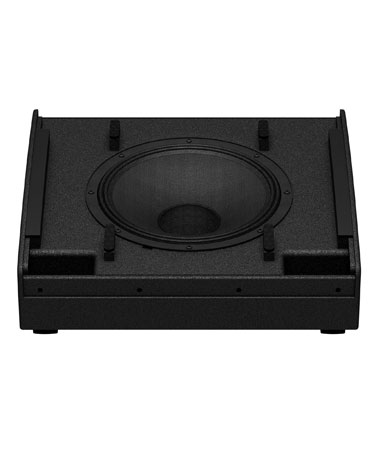

• 1.75-inch high-frequency driver, coaxially mounted to a high-output 12-inch low-frequency unit
• Coaxial driver design yields near-perfect phase response for unparalleled accuracy
• Full-range 52Hz-20kHz frequency response
• Rafter-shaking 129dB maximum SPL
• 90-degree x 60-degree coverage angle ensures consistent, amazing sound throughout the room
• 48-bit DSP optimizes frequencies and phase relationships to mitigate crossover distortion
• D-Contour intelligent multiband compressor maintains sonic integrity at any volume
• Flexible FOH/Main and Monitor operational modes
• Rugged polyurea-coated compact plywood enclosure
• 35mm socket for effortless placement on a stand or pole

Tech Specs

• Powered: Yes
• Power Configuration: Single Amp
• LF Driver Size: 12" woofer
• HF Driver Size: 1.75" High-compression driver
• LF Driver Power Amp: 800W
• HF Driver Power Amp: 200W
• Total Power: 1000W Class D

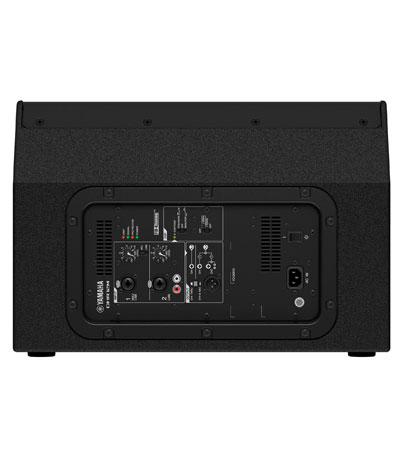

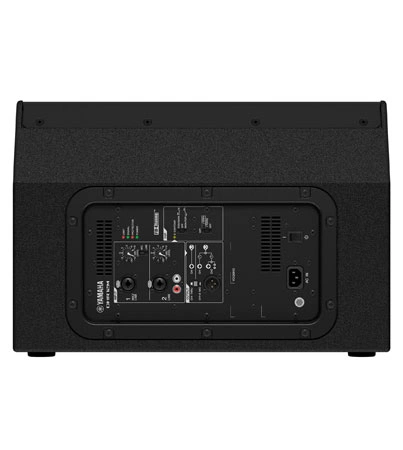

• Inputs: 2 x XLR-1/4" combo
• Outputs: 1 x XLR
• Frequency Response: 55Hz-20kHz (-10 dB)
• Maximum Peak SPL: 129 dB SPL @ 1m
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Signal Processing: 48-bit DSP
• Enclosure Material: Plywood with Polyurea coating
• Mounting Options: Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 13.5"
• Width: 19.75"
• Depth: 18"
• Weight: 36.3 lbs.
