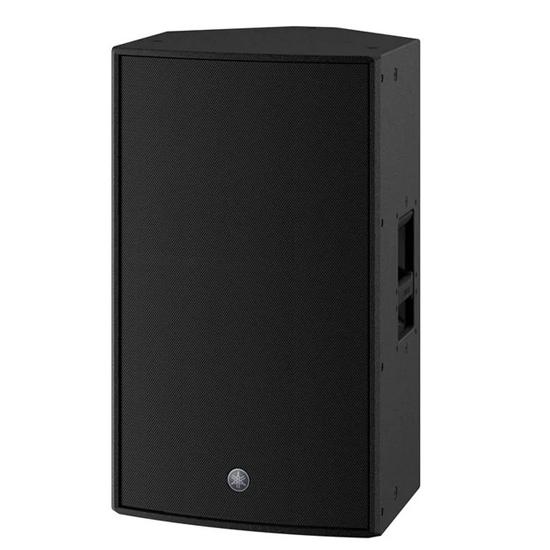

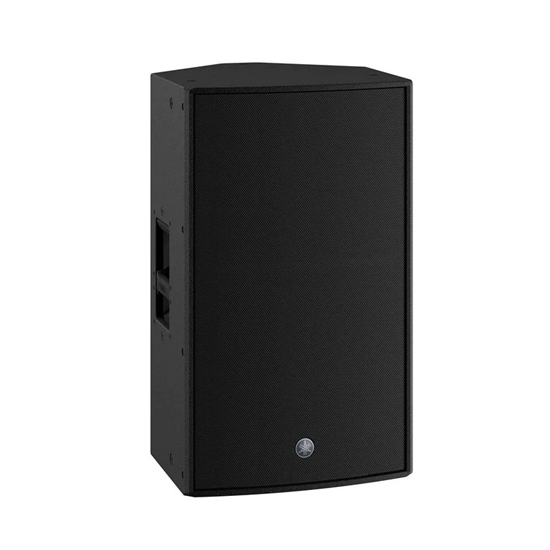

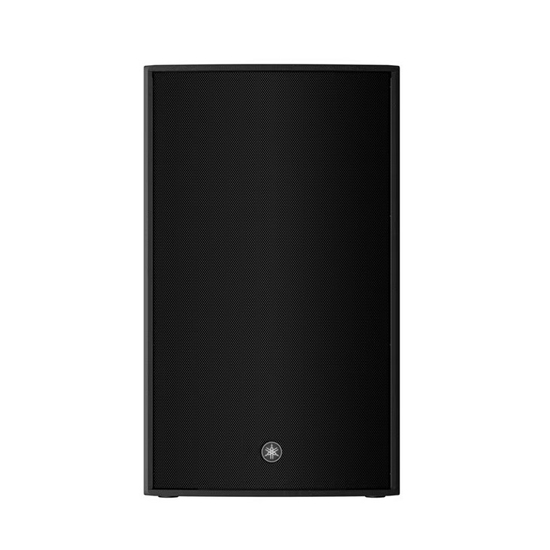

Yamaha CZR12 1600W 12 inch Passive Speaker

The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments-from live bands at outdoor festivals to DJ's in clubs-these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

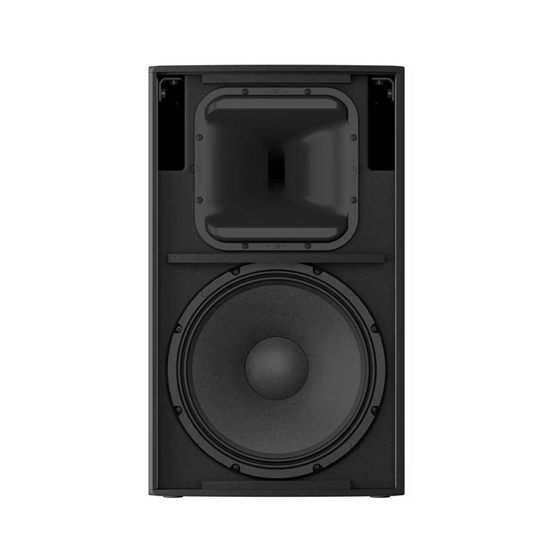

The CZR Series features 15", 12" and 10" models with transducers with die-cast aluminum frames with a 3" voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2" voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.

The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximize performance.

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system's low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

Features:

• 2-way loudspeaker with a 2" HF and a 12" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable

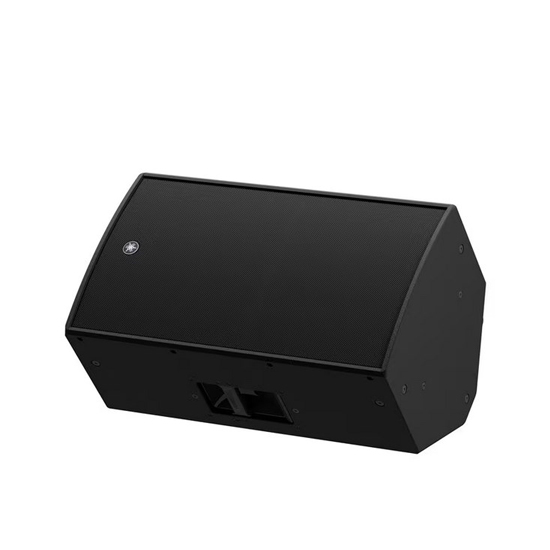

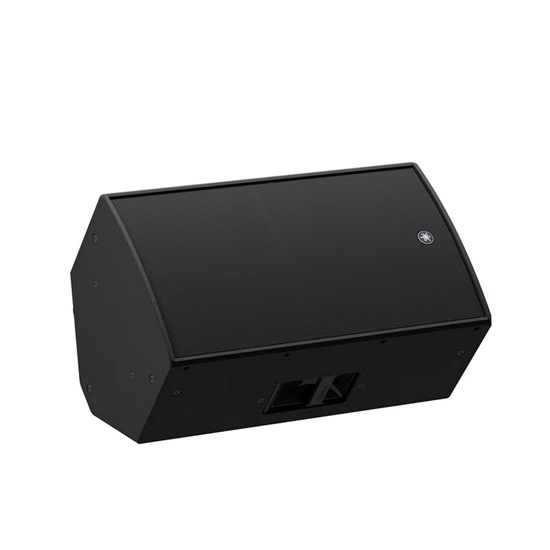

• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement

Specifications:

• Speaker type : 2-way Speaker, Bass-reflex
• Frequency range (-10dB) : Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz
• Coverage area : H90° x V60° Rotatable Constant Directivity Horn
• Floor Monitor Angle : 50° Symmetrical
• Components LF : 12" Cone, 3" Voice Coil, Neodymium magnet, HF : 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover : 2.0 kHz
• Power rating
  • NOISE : Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
  • PGM : Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
  • PEAK : Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
• Nominal impedance : Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
• SPL
  • Sensitivity (1W; 1m on axis) : Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
  • Peak (Calculated) : Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL

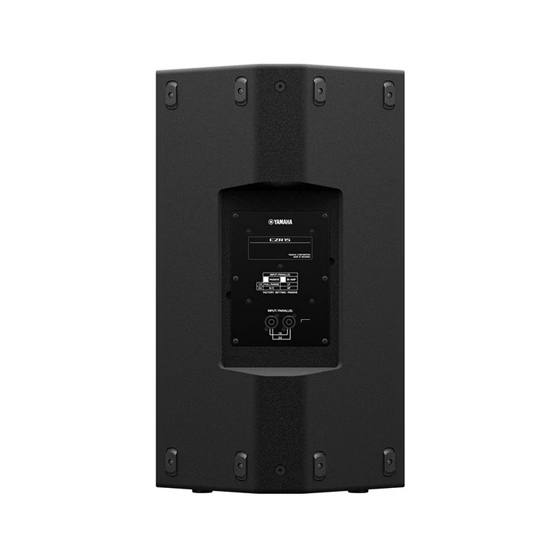

• I/O connectors : SpeakON NL4MP x 2 (Parallel)
• Handle : Aluminium die-cast, Side x2
• Pole socket : ø35mm x2 (0° or -7°)
• Rigging : M10 x 12
• Dimensions
  • Width : 410 mm (16.1")
  • Height : 646 mm (25.4") (with rubber feet)
  • Depth : 394 mm (15.5")
• Net weight : 18.0 kg (39.7 lbs)
• Options : Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
• Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
