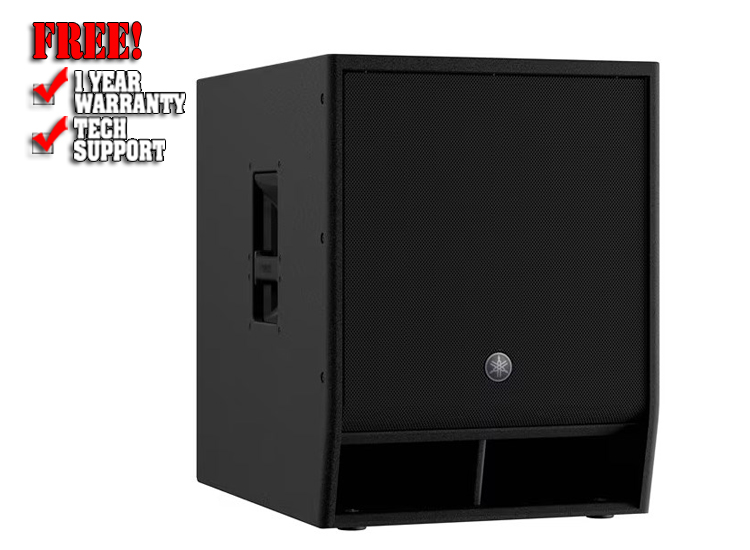

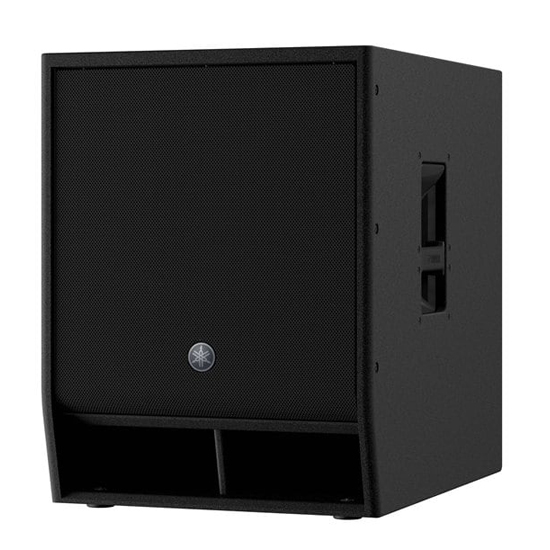

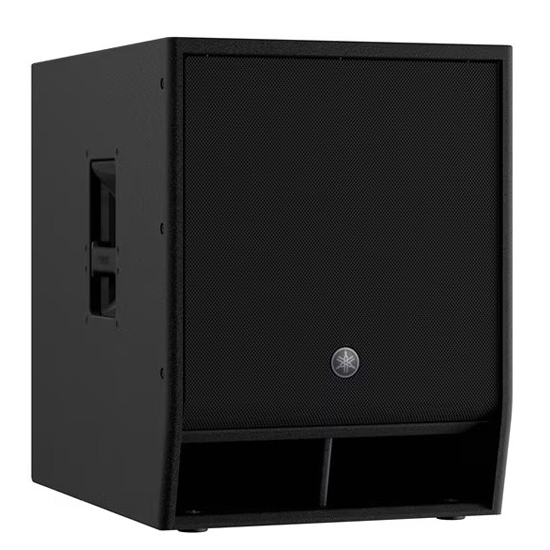

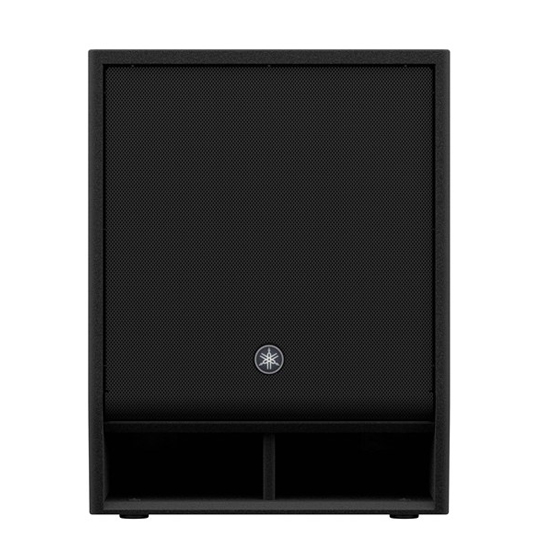

Yamaha CXS15XLF 1600W 15 inch Passive Subwoofer

The CXS XLF Series of consists of two passive subwoofers, the CXS15XLF (15-inch) which can extend the system's low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.

Features:

• 15" subwoofer with 4" Voice Coil
• High power 800W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

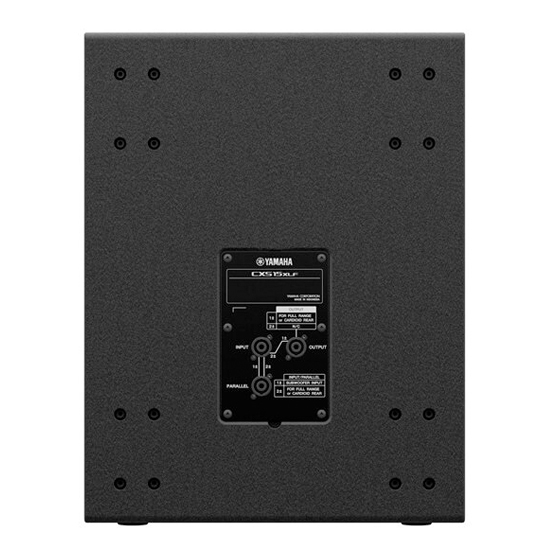

• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Specifications:

• Speaker type : Subwoofer, Bass-reflex
• Frequency range (-10dB) : Passive: 33 Hz - 3.5kHz, Normal (*1): 35 Hz - 150 Hz, Extend (*1): 33 Hz - 150 Hz

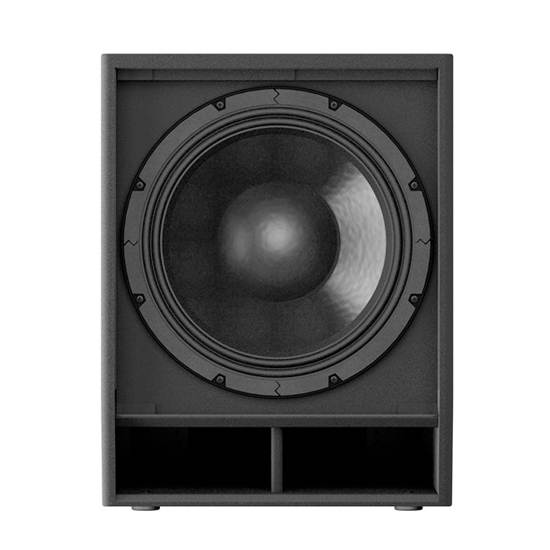

• Components LF : 15" Cone, 4" Voice Coil, Ferrite magnet
• Power rating
  • NOISE : 400 W (EIA 426-A)
  • PGM : 800 W (EIA 426-A)
  • PEAK : 1600 W (EIA 426-A)
• Nominal impedance : 8 Ω
• SPL
  • Sensitivity (1W; 1m on axis) : 98dB *2
  • Peak (Calculated) : 130 dB *2
• I/O connectors : SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Handle : Aluminium die-cast, Side x2
• Pole socket : ø35 mm (depth 80mm), M20 Threaded (depth 25mm)
• Dimensions
  • Width : 450 mm (17.7")
  • Height : 587 mm (23.1") (with rubber feet)
  • Depth : 600 mm (23.6")
• Net weight : 35.6kg (78.5 lbs)

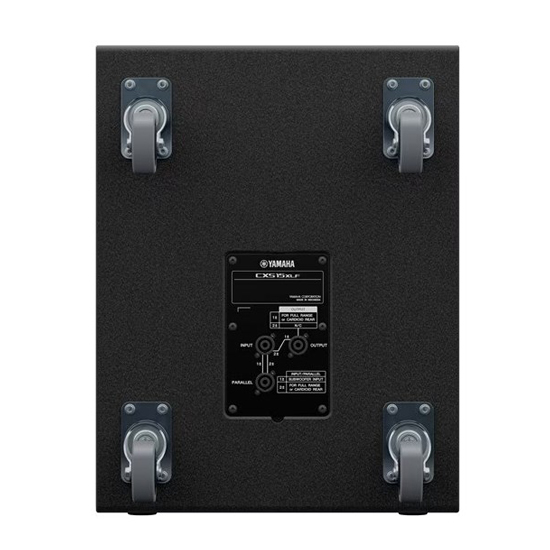

• Options : Cover: SPCVR-DXS15X, Caster: SPW-1
• Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
