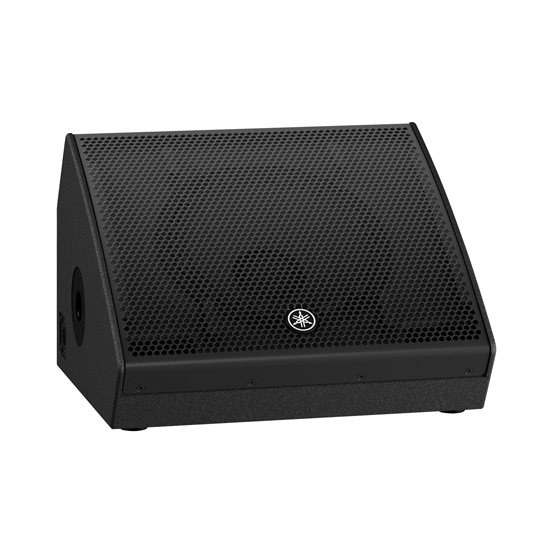

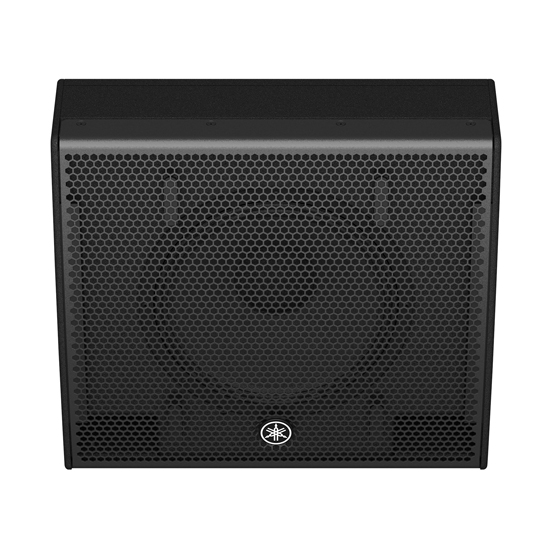

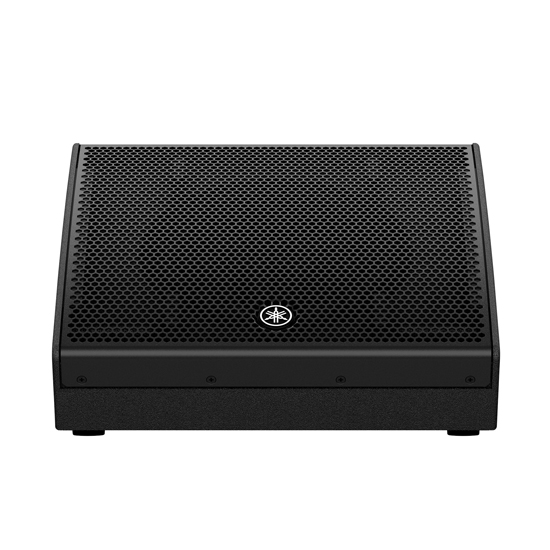

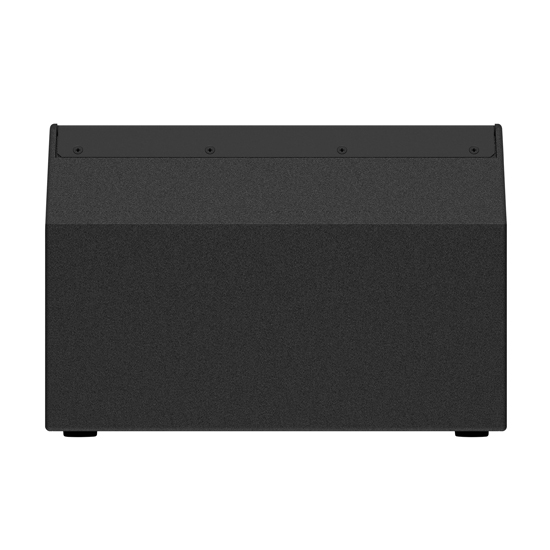

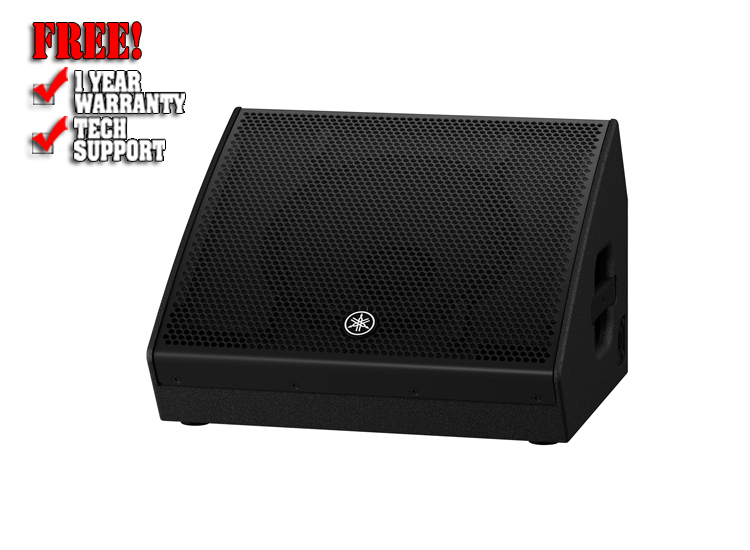

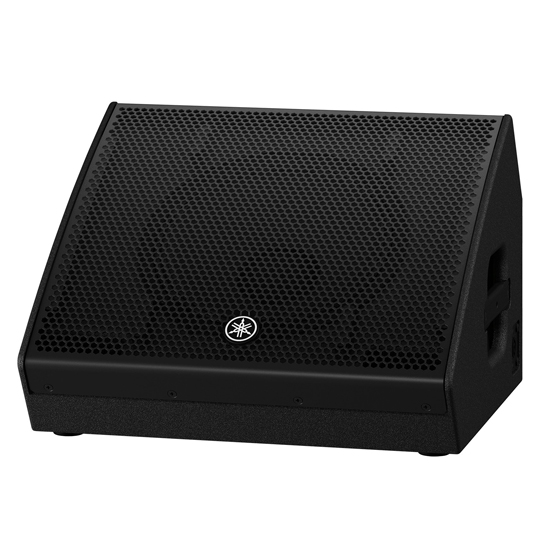

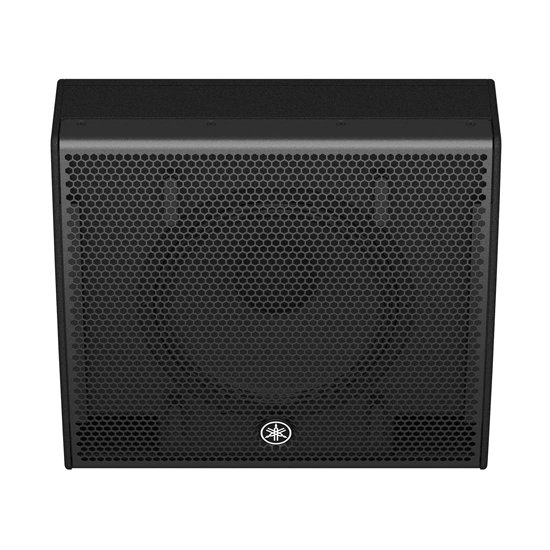

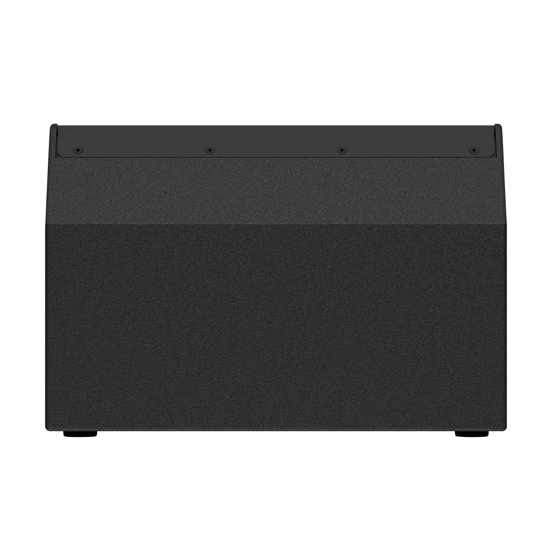

Yamaha CHR12M 1000W 12 inch Passive Speaker

The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha's high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.

Cabinet designs optimized for a range of audio environments

The CHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10" model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12" model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15" model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.

Custom Designed Transducers

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

A Rugged, Highly Portable Cabinet

The CHR series feature plywood enclosures like our acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.

Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.)

Dual-Angle Pole Mount Socket (CHR15)

Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The CHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.

Feautures:

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Specifications:

• Speaker type : 2-way Speaker, Bass-reflex
• Frequency range (-10dB) : 61 Hz - 20 kHz
• Coverage area : H90° x V90°
• Crossover : 1.8 kHz
• Nominal impedance : 8Ω
• SPL
  • Sensitivity (1W; 1m on axis) : 93 dB SPL
  • Peak (Calculated) : 123 dB SPL
• Components

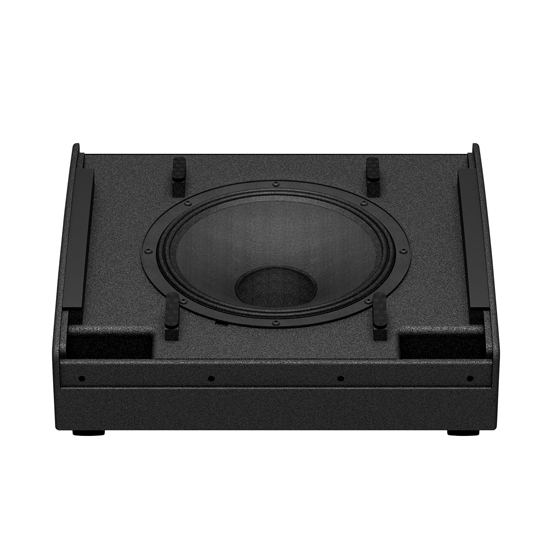

  • LF : Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
  • HF : Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Power rating
  • NOISE : 250 W
  • PGM : 500 W
  • PEAK : 1,000 W

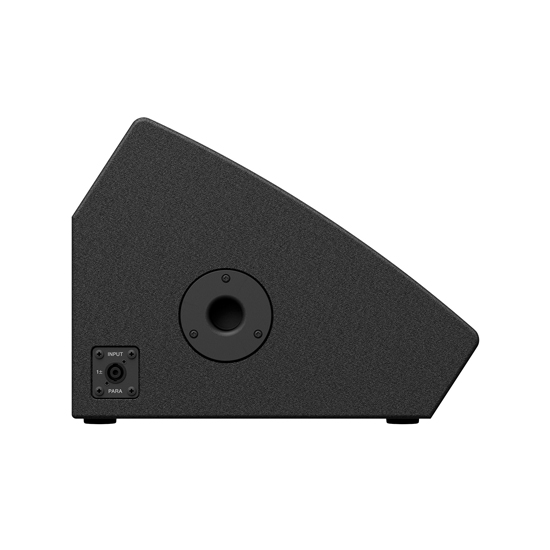

• I/O connectors : SpeakON NL4MP x 2 (Parallel)
• Cabinet material : Plywood
• Finish : Durable Polyurea Painting, Black

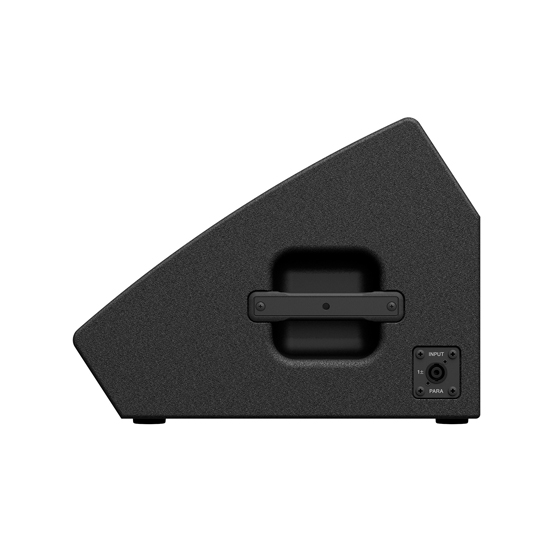

• Handle : Side x1
• Pole socket : Ø35 mm Bottom x 1
• Floor Monitor Angle : 57°
• Dimensions
  • Width : 500 mm (19.7")
  • Height : 343 mm (13.5") (with rubber feet)
  • Depth : 454 mm (17.9")
• Net weight : 15.6 kg (34.4 lbs)
