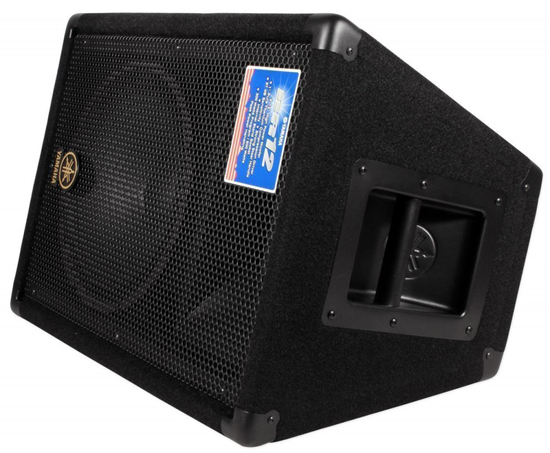

Yamaha BR12

Description

While maintaining the great sound of the Concert Club series, the BR series provides cost-effective speakers in three configurations to match a wide range of applications. Inheriting the excellent portability and placement flexibility that characterized previous models in the series, and featuring the same tasteful design and powerful sound, the BR series is a great choice for bands, clubs, halls, rehearsal studios, retail or school events ... anywhere you need great sound in a medium-scale application.

The new BR-Series from Yamaha combines affordability with high performance.

Five BR models are designed to fit the budgets of performing musicians, small churches, and schools, while delivering the full frequency response and high output of more costly systems. Although their "BR" prefix was chosen to represent "bass reflex," it also proves very appropriate for describing the line's advanced feature set...

Built Right...Combining our knowledge of acoustics and advanced computer controlled woodworking, Yamaha crafts the BR line of sound reinforcement loudspeakers for both great sound and affordability. High power woofers provide amazing punch, and a pure titanium 1" compression driver assures excellent high frequency performance. Each model's large steel handles, corner protectors, and built-in pole sockets, assure both durability and flexibility.

Better Response...BR cabinets are carefully designed for the best balance of small, easy to handle size and great low-frequency response, using Bass Reflex technology. High-frequency response is also enhanced with a new titanium HF driver and 90° by 40° non-resonant horn.

Best Reliability...All BR-Series models are covered by a three-year warranty. With integral protection circuitry built into the passive crossover, you can expect a long life of high output and minimal distortion.

Whichever model you choose, your message is sure to be heard using BR-Series loudspeakers...and you can take the savings to the bank!

HORN

A large non-resonant, constant-directivity horn provides even 90° x 40° high-frequency dispersion.

Superior Audio Quality with Titanium HF Drivers

The BR series speakers were developed and are produced in the USA to carry on the proven audio quality and reliability of Yamaha's acclaimed Concert Club series. Using parts and components carefully selected for audio quality and reliability, Yamaha has optimized critical design parameters to achieve astounding sound at a very affordable price. In particular, the excellent low-frequency response produced by the bass-reflex system and the broad 90° x 40° high-frequency coverage provided by the titanium-dome horn tweeter are the result of painstaking tuning that achieves an outstanding balance between portability and size.

CORNERS

Steel corner protectors keep your cabinets free from dings and damage associated with frequent transport.

Ideal for EMX Series Powered Mixers and P Series Power Amps

The BR series speakers provide dual phone jacks for input and parallel connection. You can set up a simple but high-performance PA system just by connecting a pair of these speakers to an EMX series powered mixer. Or you could use BR series speakers in conjunction with P series power amplifiers and an MG series mixing console to create a range of very versatile live sound systems. The YSP (Yamaha Speaker Processing) switch provided on EMX series mixers and P series amplifiers can be used to achieve optimum matching for significantly enhanced sound.

HANDLES

Large metal handles mounted at each cabinet's center of gravity make them very easy to carry.

Simple but Sophisticated Design

The BR series carries on the simple yet sophisticated design of the Concert Club series. The front grille has been enhanced in terms of both design and durability. In addition to a carpeted finish, the tough exterior features steel corner protectors and heavy duty metal handles for improved portability. The BR series was designed for the rigors of daily use in a portable sound reinforcement system.

Speaker Stand Pole Socket on All Models

All models - front as well as foldback - feature pole sockets for use with speaker stands. These units will fit on standard 1-3/8 inch (35 mm) diameter speaker stands for easy positioning in a wide range of applications.

POLE SOCKET

All models, including the monitors, come with stand/pole sockets for flexibility of use.

PMG BR12

12" (30cm) High Power Woofer 1" (25mm) Pure Titanium Compression Driver 97 dB Sensitivity Strong Steel Handle Stand/pole socket 300 Watt Program/ 600 Watt Peak Power Handling

Features:

• Woofers 12"
• Tweeter (diaphragm) 1" titanium
• Frequency Response (-10dB) 65Hz-20kHz
• Input Terminal Phone x 2
• Power Handling 600 Watts
• Nominal Impedance 8 ohms
• Sensitivity (1 W, 1m) 97dB
• Dimensions 15 3/4" x 22 1/2" x 13 1/4"
• Weight 35.2lbs
