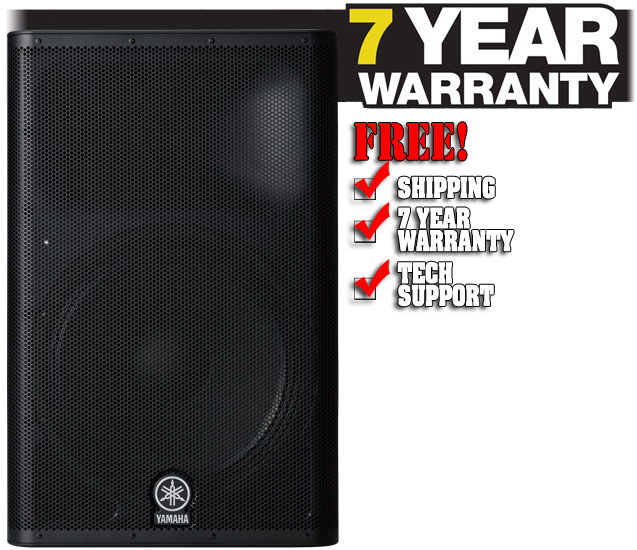

Yamaha DXR15

Features:

• Bass-Reflex ABS Cabinet
• 10" Woofer
• 1.4" Compression Tweeter
• Biamplified Design, 1100W Peak Output
• FIR-X Crossover
• Multifunction Processing/Mixing
• XLR, 1/4", and RCA Inputs
• XLR Thru and Output
• 35mm Pole Socket and M8 Fly Points

Description

The DXR15 10" 1100W 2-Way Active Loudspeaker from Yamaha provides clear audio and high output levels in a compact and durable design, ideal for live sound applications. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The 10" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response. The crossover uses a FIR-X linear phase filter to optimize driver performance.

The speaker has a biamplified design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor, while an onboard mixer eliminates the need for an external mixer. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.

The speaker can be placed on a floor or stage, but also has useful mounting options. A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting.

Specifications:

• The compact and durable ABS cabinet is ideal for a variety of live sound and touring applications
• The bass-reflex cabinet design provides enhanced bass performance with reduced turbulence
• The 10" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response
• The crossover uses a FIR-X linear phase filter to optimize driver performance
• The biamplified design provides a combined peak output power of 1100W for a strong performance with minimal distortion
• A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor, while an onboard mixer eliminates the need for an external mixer
• The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices
• A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting
• Type: Active, 2-way, biamplified
• Frequency Range: 56 Hz - 20 kHz (-10 dB)
• Coverage: 90° H x 60° V
• Woofer: 10" (254 mm) cone woofer with 2" voice coil and ferrite magnet
• Tweeter: 1.4" (36 mm) compression tweeter with 1" throat and ferrite magnet
• Crossover: FIR-X tuning (linear phase FIR filter)
• Amplifier Power: Dynamic: 1100 W (950 W LF, 150 W HF)
• Continuous: 700 W (600 W LF, 100 W HF)
• Output Level: 131 dB SPL max (1 m, on axis)
• Connectors: 1 x XLR input, 2 x 1/4" phone inputs, 2 x RCA inputs, 1 x XLR thru jack (parallel with input), 1 x XLR link output
• Processor: D-contour: FOH/main, monitor, off
• Cabinet: Bass-reflex, ABS with black matte finish
• Mounting: 3 x Fly points (2 top, 1 rear, fits M8 x 15 mm eyebolts), 1 x 35 mm pole socket with 0°/7° 2-way feature
• Power Requirements: 100-240 VAC, 50/60 Hz
• Power Consumption: 90 W
• Dimensions (WxHxD): 12 x 19.75 x 12.25" (305 x 502 x 310 mm)
• Weight: 32.2 lbs (14.6 kg)
