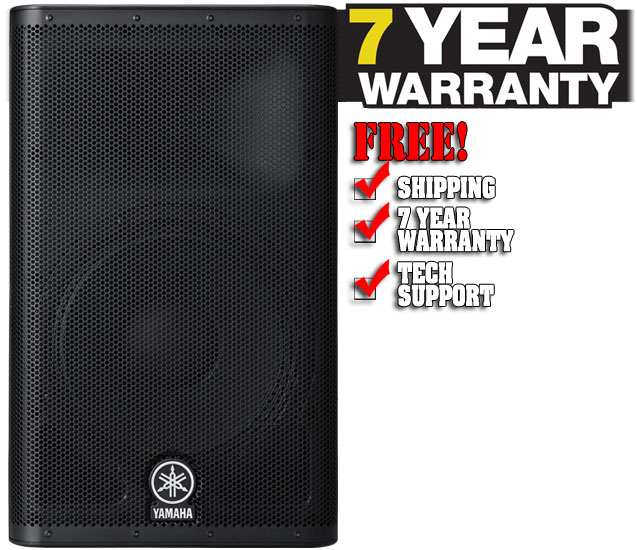

Yamaha DXR12

Description

The DXR12 12" 1100W 2-Way Active Loudspeaker from Yamaha provides clear audio and extremely high output levels in an unobtrusive and durable design, ideal for live sound applications that require wide bandwidth audio reproduction. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The 12" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response. The crossover uses a FIR-X linear phase filter to optimize driver performance.

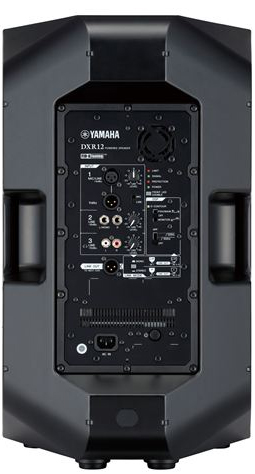

The speaker has a biamplified design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.

The speaker can be placed on a floor or stage, but also has useful mounting options. A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M10 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting.

Features:

• Bass-Reflex ABS Cabinet
• 12" Woofer
• 1.4" Compression Tweeter
• Biamplified Design, 1100W Peak Output
• FIR-X Crossover
• XLR, 1/4", and RCA Inputs
• XLR Thru and Output
• 35mm Pole Socket and M10 Fly Points

Specifications:

• The unobtrusive and durable ABS cabinet is ideal for live sound and touring applications
• The bass-reflex cabinet design provides enhanced bass performance with reduced turbulence
• The 12" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response, perfect for demanding wide bandwidth applications
• The crossover uses a FIR-X linear phase filter to optimize driver performance
• The biamplified design provides a combined peak output power of 1100W for a strong performance with minimal distortion
• A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor
• The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices
• A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M10 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting
• Type: Active, 2-way, biamplified
• Frequency Range: 52 Hz - 20 kHz (-10 dB)
• Coverage: 90° H x 60° V
• Woofer: 12" (305 mm) cone woofer with 2.5" voice coil and ferrite magnet
• Tweeter: 1.4" (36 mm) compression tweeter with 1" throat and ferrite magnet
• Crossover: FIR-X tuning (linear phase FIR filter)
• Amplifier Power: Dynamic: 1100 W (950 W LF, 150 W HF)
• Continuous: 700 W (600 W LF, 100 W HF)
• Output Level: 132 dB SPL max (1 m, on axis)
• Connectors: 1 x XLR input, 2 x 1/4" phone inputs, 2 x RCA inputs, 1 x XLR thru jack (parallel with input), 1 x XLR link output
• Processor: D-contour: FOH/main, monitor, off
• Cabinet: Bass-reflex, ABS with black matte finish
• Mounting: 3 x Fly points (2 top, 1 rear, fits M10 x 18 mm eyebolts), 1 x 35 mm pole socket with 0°/7° 2-way feature
• Power Requirements: 100-240 VAC, 50/60 Hz
• Power Consumption: 110 W
• Dimensions (WxHxD): 14.25 x 23.6 x 13.75" (362 x 601 x 350 mm)
• Weight: 42.5 lbs (19.3 kg)
