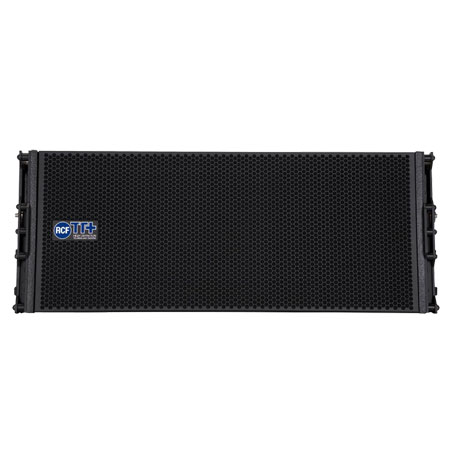

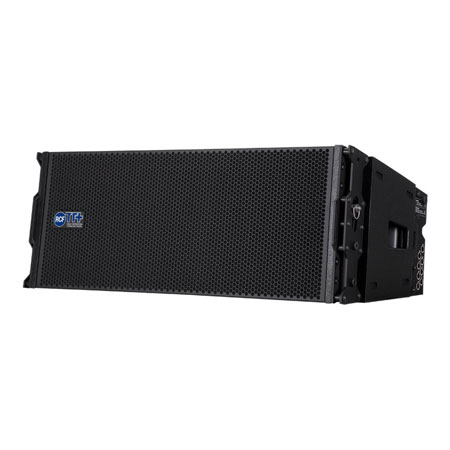

Product Description for the RCF TTL33-A II

The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array.

The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums

Key Features:

FEATURES

• 750 W switching amplifiers
• wide, constant directivity, coverage angle
• 6 high power neodymium transducers
• High quality analog input board
• 96 kHz, 32 bit DSP processing
• Soft limiter and RMS protection
• Maximum output per size available on the market
• RDNet on board

SPECIFICATIONS

• Frequency Response -3 dB:60 Hz ÷ 20000 Hz
• Max SPL:135 dB
• Horizontal coverage angle:100°
• Vertical coverage angle:15°
• Compression Driver:3 X 1.0" neo, 37mm voice coil
• Midrange:8" neo, 64mm voice coil
• Woofer:2 x 8" neo, 64 mm voice coil

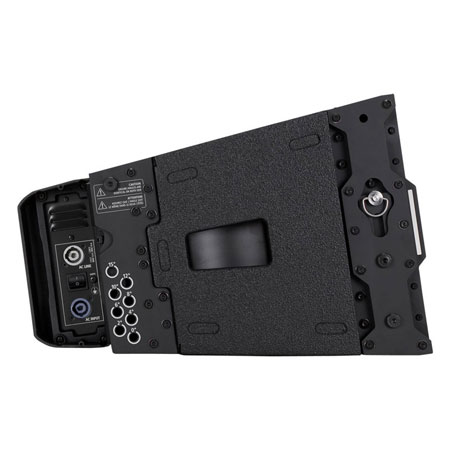

INPUT/OUTPUT SECTION

• Input signal:Bal/unbal
• Input connectors:XLR, RDNet Ethercon
• Output connectors:XLR, RDNet Ethercon
• Input sensitivity:-2 dBu / + 4 dBu

PROCESSOR SECTION

• Crossover frequencies:400 Hz / 1800 Hz
• Protections:Thermal, HF
• Limiter:RMS, fast limiter
• Controls:HF correction, cluster size, HPF

AMPLIFIER SPECIFICATIONS

• Total power:750 W RMS
• High frequencies:D/250 W RMS
• Mid frequencies:D/500 W RMS
• Low frequencies:D/500 W RMS
• Cooling:Convection/forced
• Connections:Powercon in/out

CABINET

• Cabinet Material:Baltic birch
• Hardware:Array side fittings
• Handles:2 on side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:300 / 11.8 mm/inch
• Width:760 / 30.0 mm/inch
• Depth:450 / 18.2 mm/inch
• Net Weight:32.5 / 71.5 kg/lbs
