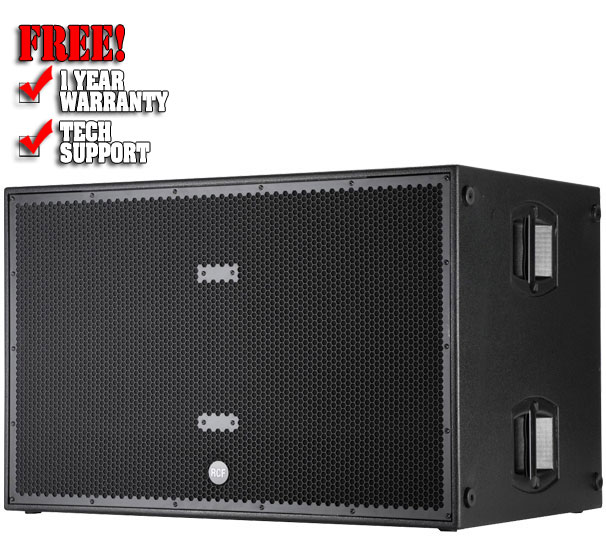

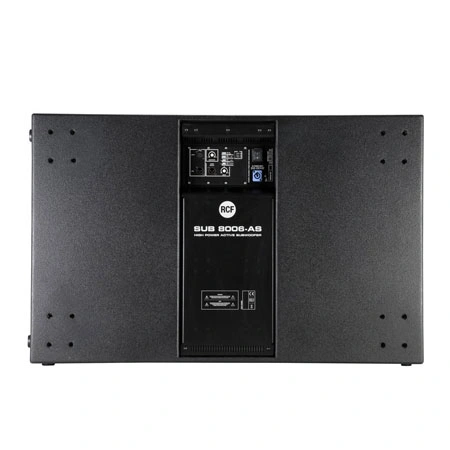

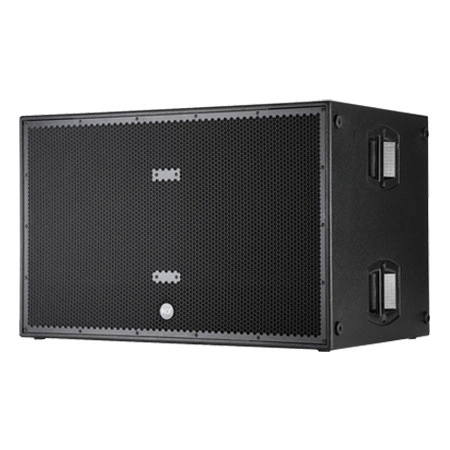

RCF Sub 8006-AS

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Key Features:

FEATURES

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:30 Hz ÷ 120 Hz
• Max SPL:141 dB
• Woofer:2 x 18", 4.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:Selectable 80 Hz - 100 Hz Hz
• Protections:Thermal, RMS
• Limiter:Fast limiter
• Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power:5000 W PEAK
• Low frequencies:5000 W PEAK
• Cooling:Convection
• Connections:Powercon in/out

CABINET

• Cabinet Material:Baltic Birch
• Hardware:Mounting points
• Handles:4 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:709 / 27.91 mm/inch
• Width:1109 / 43.66 mm/inch
• Depth:700 / 27.5 mm/inch
• Net Weight:90 / 198.41 kg/lbs
