RCF SUB 8005-AS

Product Description for the RCF Sub 8005-AS

The SUB 8005-AS is on of the most powerful 21" subwoofers in pro-sound category.

Featuring a high power, hypervented 21" woofer, with 4.5" inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

Key Features:

FEATURES

• 2500 Watt Peak, 1250 Wat RMS
• 137 dB max SPL
• 27 Hz - 120 Hz frequency response

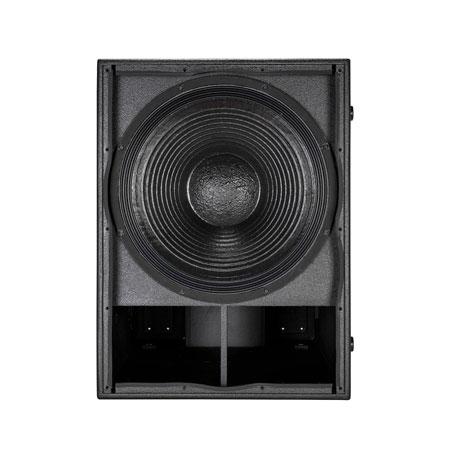

• 21" Woofer, 4.5" voice coil vented woofer
• DSP controlled Input section with selectable presets
• Delay control
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB: 27 Hz ÷ 120 Hz
• Max SPL: 137 dB
• Woofer: 21", 4.5" v.c.

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies: Selectable 90 Hz - 120 Hz Hz
• Protections: Thermal, RMS
• Limiter: Fast limiter
• Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power: 2500 W PEAK
• Low frequencies: 2500 W PEAK
• Total power: 1250 W RMS
• Low frequencies: 1250 W RMS
• Cooling: Convection
• Connections: Powercon in-out

CABINET

• Cabinet Material: Baltic Birch

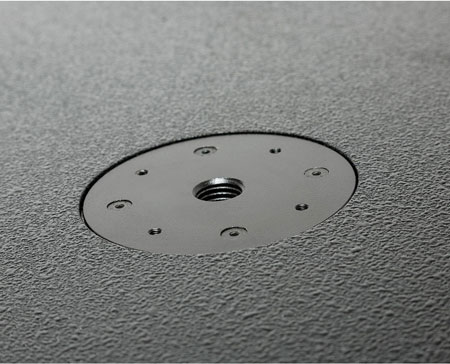

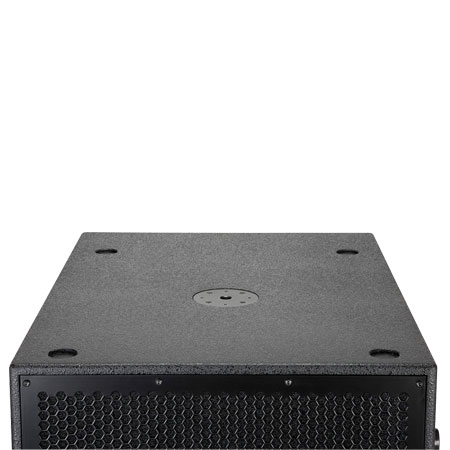

• Hardware: 2xM20, 4 x wheels mounting points
• Handles: 2 side
• Colour: Black

PHYSICAL SPECIFICATIONS

• Height: 825 / 32.48 mm/inch
• Width: 600 / 23.62 mm/inch
• Depth: 805 / 31.69 mm/inch
• Net Weight: 66.6 / 146.8 kg/lbs
