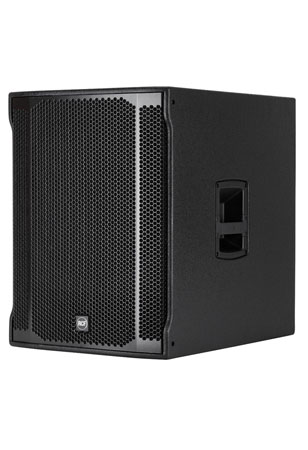

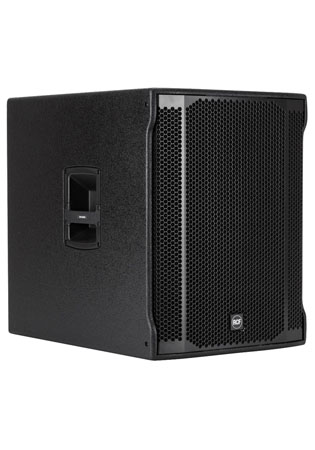

RCF SUB 8003-AS II

The transducers innovators

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

Legendary subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Cabinet & mechanics

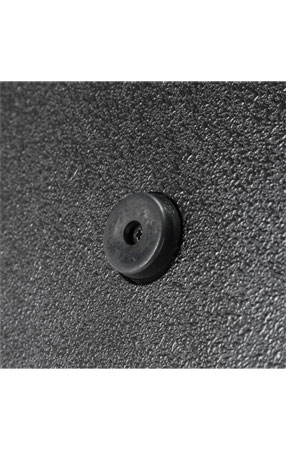

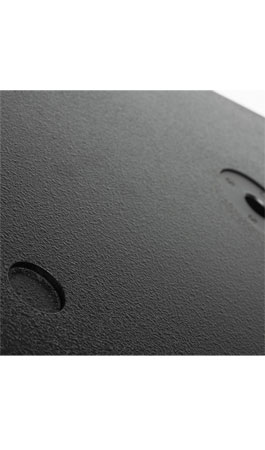

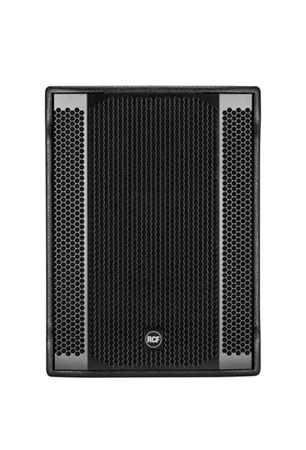

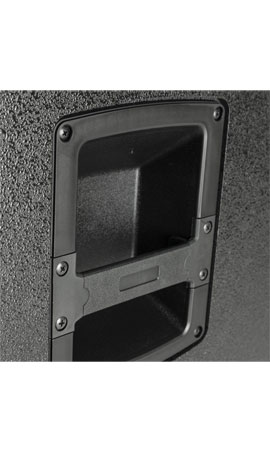

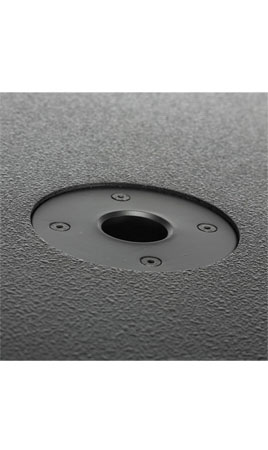

The RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 35 Hz ÷ 120 Hz
• Max SPL @ 1m: 135 dB

TRANSDUCERS

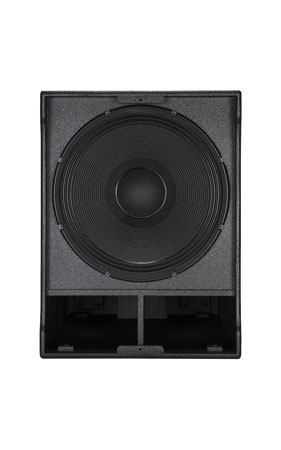

• Woofer: 18'', 4.0'' v.c

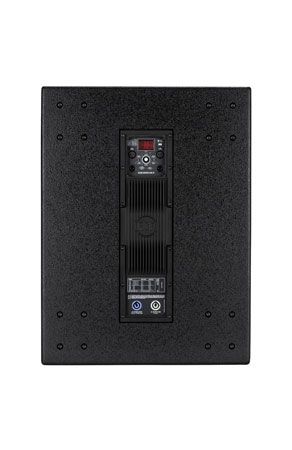

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: Selectable
• Protections: Thermal, RMS
• Controls: Gain, EQ, Phase, Xover, Delay, Cardioid

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• Low frequencies: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Handles: 2 side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 694 mm / 27.32 inches
• Width: 523 mm / 20.59 inches
• Depth: 700 mm / 27.56 inches
• Weight: 42 kg / 92.59 lbs

SHIPPING INFORMATION

• Package Height: 745 mm / 29.33 inches
• Package Width: 760 mm / 29.92 inches
• Package Depth: 580 mm / 22.83 inches
• Package Weight: 51 kg / 112.44 lbs
