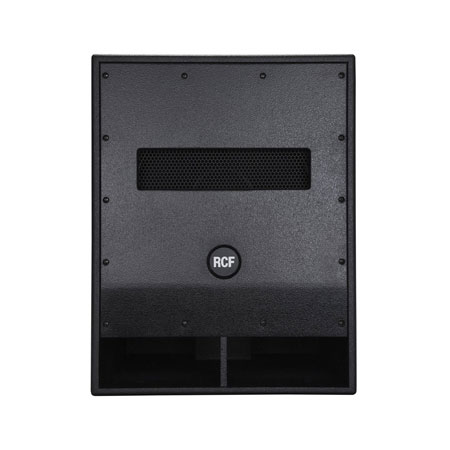

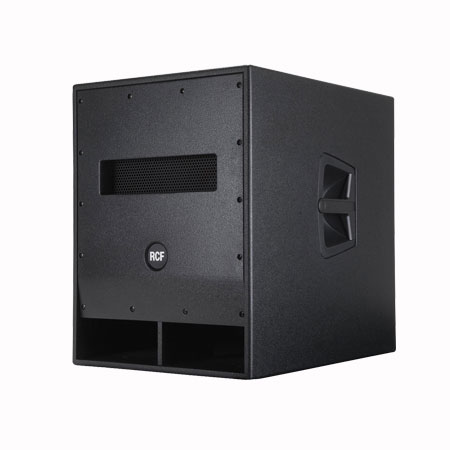

Product Description for the RCF SUB 705-AS

The SUB 705-AS is a powerful and compact subwoofer. It is equipped with a single 15" high power woofer with 3" voice coil and a 700 W digital amplifier.

The SUB 705-AS features strong Baltic birch construction, high quality mechanics and superior acoustic design delivering a powerful and punchy deep bass for any application

Key Features:

FEATURES

• 1400 Watt Peak, 700 Watt RMS digital amplification
• 130 dB max spl
• 15" High power woofer, 3" voice coil
• Xover selector, phase switch and high pass outputs
• Electronic equalization, soft limiter and protection
• Stereo Xlr/Jack combo input, Stereo Xlr signal output

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:40 Hz ÷ Xover point Hz
• Max SPL:130 dB
• Woofer:15", 3" v.c.

INPUT/OUTPUT SECTION

• Input connectors:stereo c. xlr-jack
• Output connectors:stereo xlr
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Controls:Volume, Phase, Xover

AMPLIFIER SPECIFICATIONS

• Total power:1400 W PEAK
• Low frequencies:1400 W PEAK
• Total power:700 W RMS
• Low frequencies:700 W RMS
• Connections:Powercon

CABINET

• Cabinet Material:Balitc birch
• Handles:2 on side
• Pole Mount/Cap:Yes
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:600 / 23.62 mm/inch
• Width:445 / 17.51 mm/inch
• Depth:573 / 22.55 mm/inch
• Net Weight:32.2 / 70.98 kg/lbs
