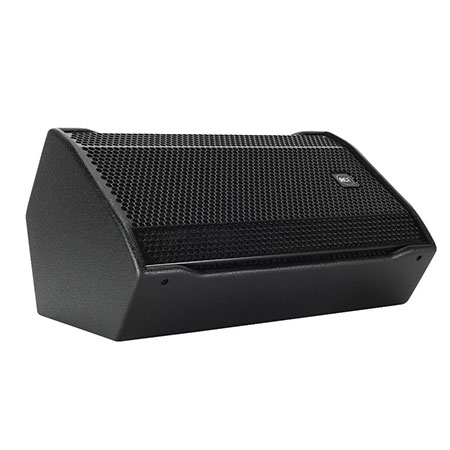

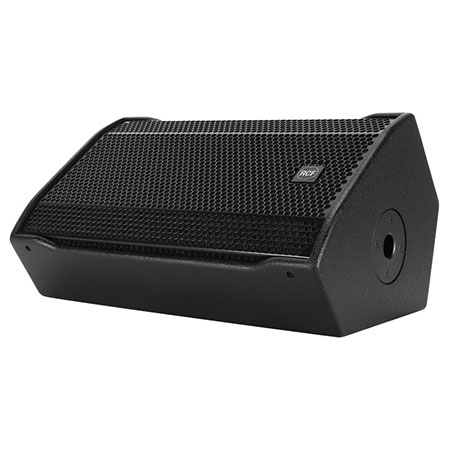

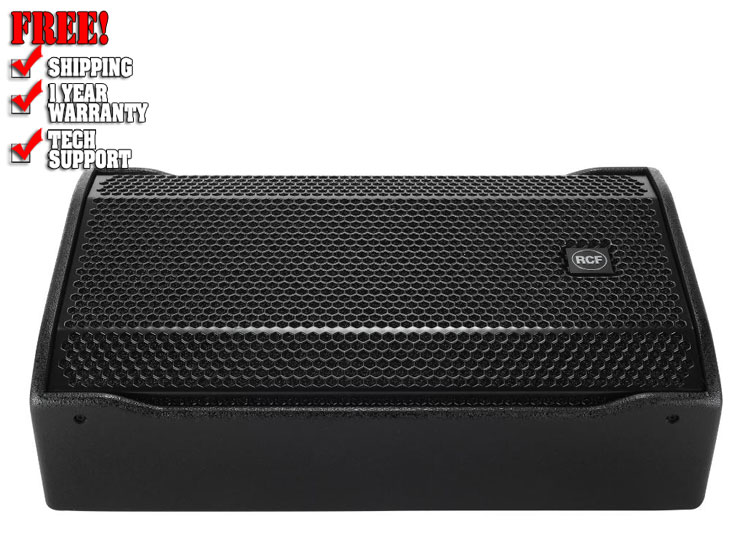

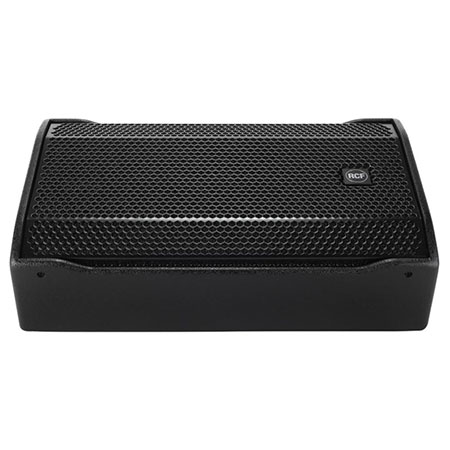

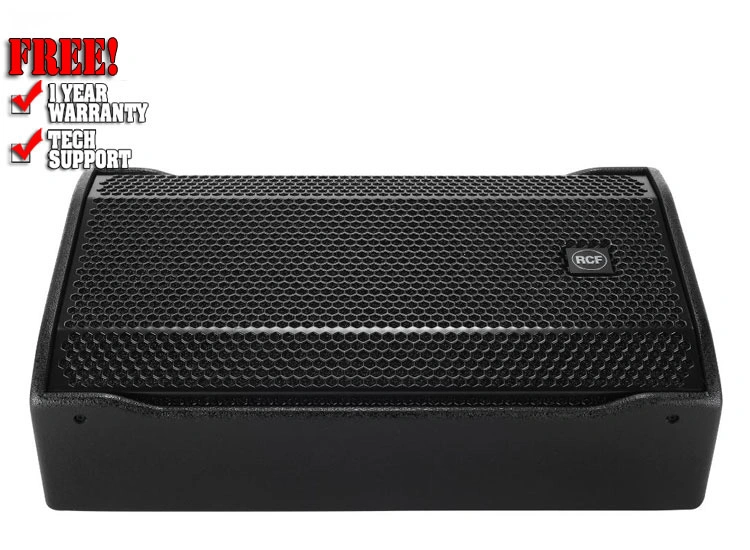

RCF ST 12-SMA

2-Way Active Stage Monitor Speaker

The RCF ST 12-SMA is a 2-Way Active Stage Monitor Speaker. It's offers a practical solution for high-intelligibility speech and audio applications, covering infill or delay, production studios, presentations, and high-power music sound reinforcement with or without subwoofers.

The speaker features a 12" high-power woofer, 2.5’’ voice coil, delivering accurate bass and precise low-frequency control, making it a suitable stage monitor/speaker for personal use and small bands. The custom-made compression driver ensures a transparent midrange and extreme accuracy. It features a high-performance 1” exit throat and 1.4’’ voice coil, with a frequency range up to 20 kHz. A particularly resistant kind of polyimide is used for the diaphragm and suspension, in order to increase the driver’s mechanical strength and stability.

The two-way speakers are equipped with a digital amplifier, resulting in very high output, extremely low distortion, and natural sound. The amplifier section features an 800W switching power-supply module that can be distributed to the two final amplifier sections. Each amplifier section has a maximum output power capability in order to provide, when necessary, maximum output bursts in a specific frequency range.

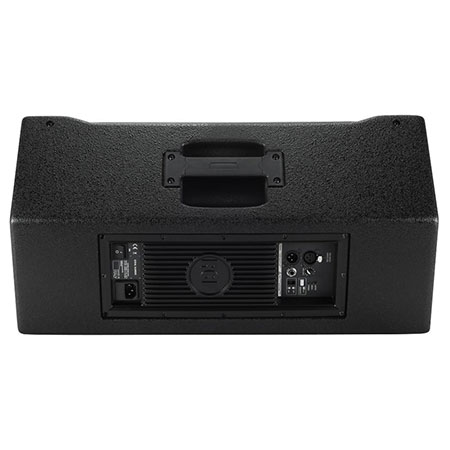

The amplifier consists of XLR and jack inputs, XLR output link, volume, EQ mode (flat/boost), mic/line sensitivity switch, and VDE input connector. It features a solid mechanical aluminum structure which not only increases the amplifier’s stability during transportation, but also helps in heat dissipation. The integrated DSP manages crossover, equalization, soft limiter, compressor, and dynamic bass boost. With an easy 90° rotation and a simple click on the flat/boost switch, the ST 12-SMA turns into a loudspeaker, with the equalization settings in boost mode.

Features:

• 800W peak, 400W RMS
• 131 dB dB max SPL
• 45 Hz to 20 kHz frequency response
• 15" woofer, 2.5" voice coil
• 1" driver, 1.4" voice coil
• Provides a clear reproduction of midrange frequencies, with a specific focus on the voice
• Features RCF transducers that ensure vocal reproduction

Specification:

Acoustical specifications

• FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 129 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 60°

Transducers

• COMPRESSION DRIVER: 1.0'', 1.4'' v.c
• WOOFER: 12'', 2.5'' v.c

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XRL, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES: 1400 Hz
• PROTECTIONS: RMS, HF
• LIMITER: Soft Limiter
• RDNET: Yes

Power section

• TOTAL POWER: 800 W Peak, 400 W RMS
• HIGH FREQUENCIES: 200 W Peak, 100 W RMS
• LOW FREQUENCIES: 600 W Peak, 300 W RMS
• COOLING: Convection
• CONNECTIONS: VDE

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: Baltic birch plywood
• HANDLES: 1 side

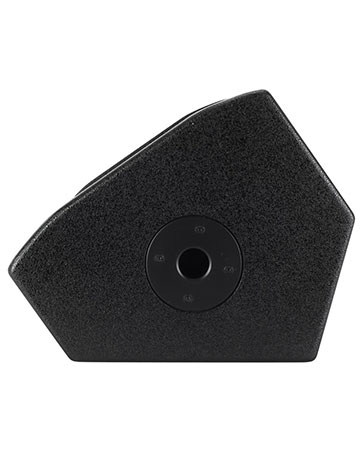

• POLE MOUNT/CAP: Yes
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 318 mm / 12.52 inches
• WIDTH: 594 mm / 23.39 inches
• DEPTH: 400 mm / 15.75 inches
• WEIGHT: 17.3 kg / 38.14 lbs

Shipping informations

• PACKAGE HEIGHT: 604 mm / 23.78 inches
• PACKAGE WIDTH: 352 mm / 13.86 inches
• PACKAGE DEPTH: 412 mm / 16.22 inches
• PACKAGE WEIGHT: 19 kg / 41.89 lbs
