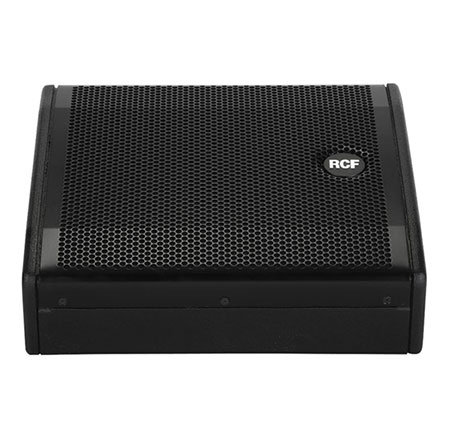

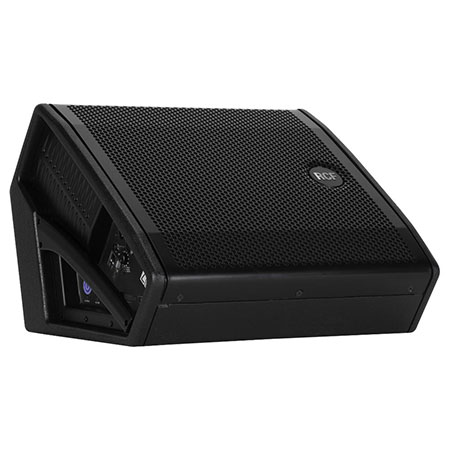

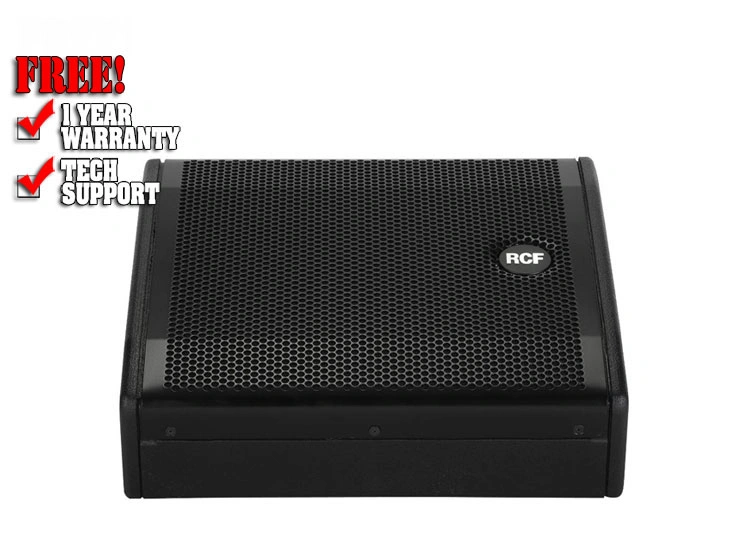

RCF NX 10-SMA

Active Coaxial Stage Monitor

The RCF NX 10-SMA is a Active Coaxial Powered Stage Monitor that can be used as either a floor monitor or mounted for use as a stand-alone PA for small venues. It is capable of up to 800-watts peak performance, providing output up to 127dB SPL. The monitor has integrated DSP for limiting functions as well as a switchable EQ mode that provides optimized performance for stage monitoring or PA applications.

The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes:- Floor, for stage monitoring; Free Field, for the use of the speakers as a stand-alone PA system.Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road.An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

Features

• 1400 Watt Peak, 700 Watt RMS digital bi-amplification
• 130 dB max spl
• 60° x 60° constant directivity horn
• 15" High power neodymium woofer, 2.5" voice coil
• 1.7" kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection
• Combo xlr/jack input, xlr signal output

Specification

Acoustical specifications

• FREQUENCY RESPONSE: 60 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 127 dB
• HORIZONTAL COVERAGE ANGLE: 60°
• VERTICAL COVERAGE ANGLE: 60°

Transducers

• COMPRESSION DRIVER: Coaxial 1.0'' neo, 1.75'' v.c

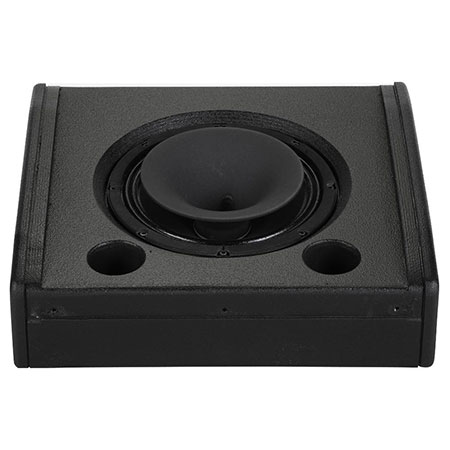

• WOOFER: 10'' neo, 2.5'' v.c

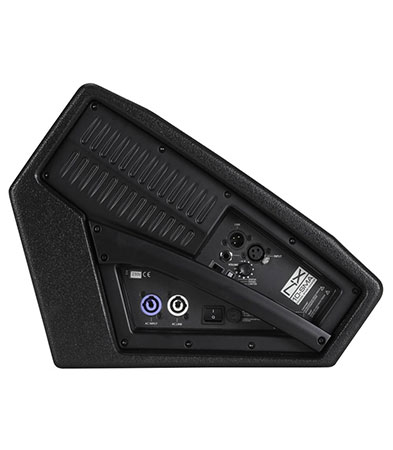

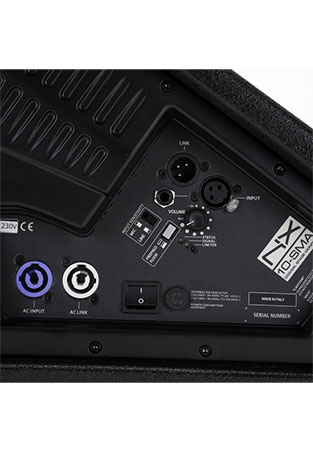

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XRL, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: +4 dBu

Processor section

• PROTECTIONS: RMS, HF
• LIMITER: Soft Limiter
• CONTROLS: Freefield, Floor

Power section

• TOTAL POWER: 800 W Peak, 400 W RMS
• HIGH FREQUENCIES: 200 W Peak, 100 W RMS
• LOW FREQUENCIES: 600 W Peak, 300 W RMS
• COOLING: Convection
• CONNECTIONS: Powercon IN/OUT

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: Baltic birch plywood
• HANDLES: 1 on side

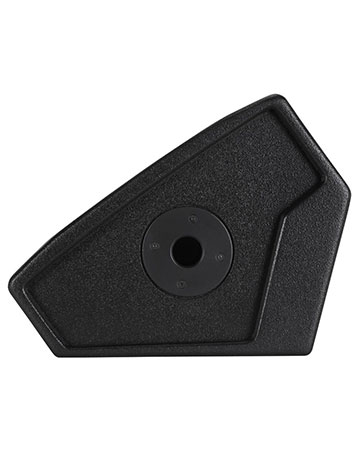

• POLE MOUNT/CAP: Yes
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 324 mm / 12.76 inches
• WIDTH: 450 mm / 17.72 inches
• DEPTH: 417 mm / 16.42 inches
• WEIGHT: 14.3 kg / 31.53 lbs

Shipping informations

• PACKAGE HEIGHT: 504 mm / 19.84 inches
• PACKAGE WIDTH: 504 mm / 19.84 inches
• PACKAGE DEPTH: 404 mm / 15.91 inches
• PACKAGE WEIGHT: 17.4 kg / 38.36 lbs
