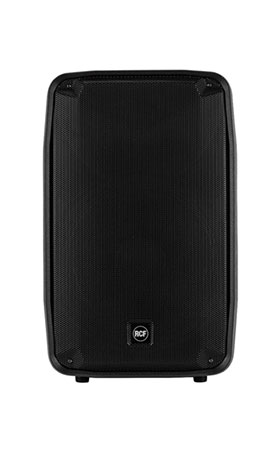

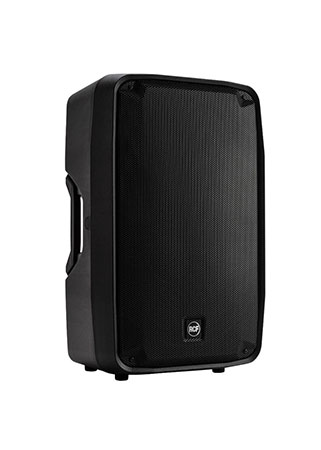

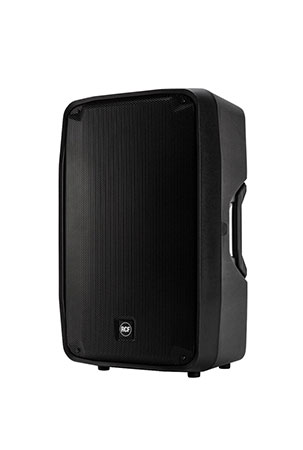

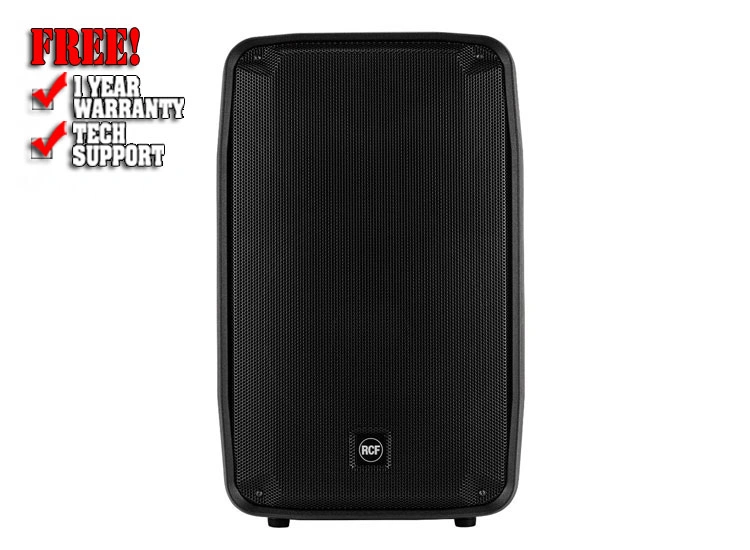

RCF HDM 45-A

ACTIVE TWO-WAY PROFESSIONAL SPEAKER

The HDM 45-A speaker boosts the performance with a top-quality two channel amplifier, RDNet networked management, RCF precision transducers, the FiRPHASE processing, and a rugged cabinet. While being one of the most powerful speakers in composite material in its category, it delivers clear, detailed and smooth sound from low to very high levels, with low distortion and fast transient response. The HDM concept is inspired by the touring industry, packing in an elegant and lightweight cabinet the maximum reliability and strength for intensive use on the road. Perfect as a main front of house speaker in PA systems, high-powered floor monitor, or unobtrusive infill system when combined with the RCF HDL System speakers.

FEATURES

• 133 dB Max SPL
• 2200 Watts two-way power
• Innovative DSP Processing with FiRPHASE
• 650 Hz crossover point for perfect vocal reproduction
• 15" Neodimium Woofer, 3.5" v.c.
• 1.4" throat Titanium Compression Driver, 4.0" v.c. Neodymium
• 90°x60°, wide dispersion constant directivity horn
• RDNet compatible
• Silent Fanless Class-D Amplifier
• Ultra-Light weight

RCF RDNet

Networked control and much more

RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers-you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Powerful class D amplifiers

Constant linearity from very low-level signals to the maximum amplifier output. A 32-bit floating-point DSP with 48 kHz processing takes care of:

• 2-way crossover and transducer alignment
• 8 programmable equalizations
• Programmable output time delay
• Input Sensitivity reduction
• Soft limiter for very high signal inputs
• RMS monitoring and transducer protection
• Input noise reduction

A specially developed algorithm takes care of the frequency dependent soft limiter offering to the listener the same linearity of the system, from very low-level signals to the maximum amplifier output.

Rental proof

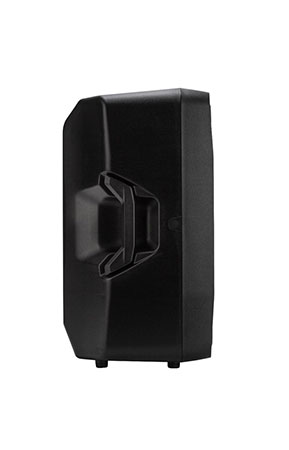

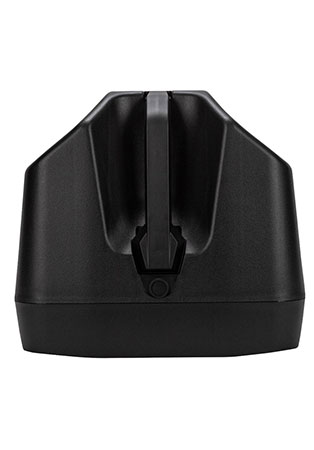

D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.

High demand applications

The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 133 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

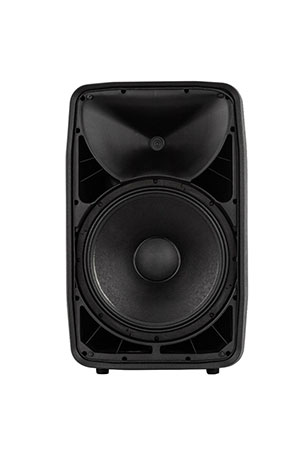

TRANSDUCERS

• Compression Driver: 1.4'' neo, 4.0'' v.c
• Woofer: 15'' neo, 3.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 650 Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: proces., 8 sel. presets
• RDNet: Yes

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1600 W Peak, 800 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant
• EN54-16 certified: Yes

PHYSICAL SPECIFICATIONS

• Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
• Handles: 1 Top, 2 Side

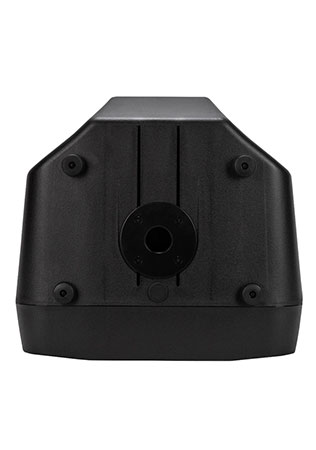

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 714 mm / 28.11 inches
• Width: 442 mm / 17.4 inches
• Depth: 397 mm / 15.63 inches
• Weight: 22 kg / 48.5 lbs

SHIPPING INFORMATION

• Package Height: 750 mm / 29.53 inches
• Package Width: 440 mm / 17.32 inches
• Package Depth: 480 mm / 18.9 inches
• Package Weight: 24.5 kg / 54.01 lbs
