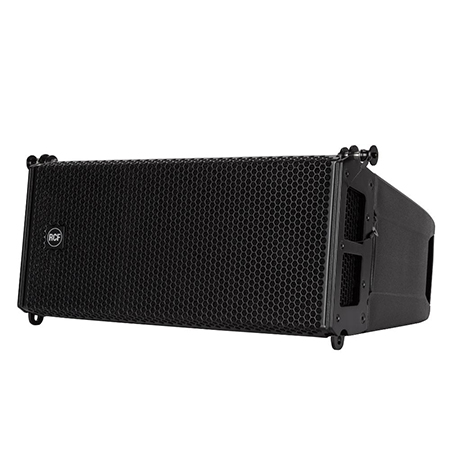

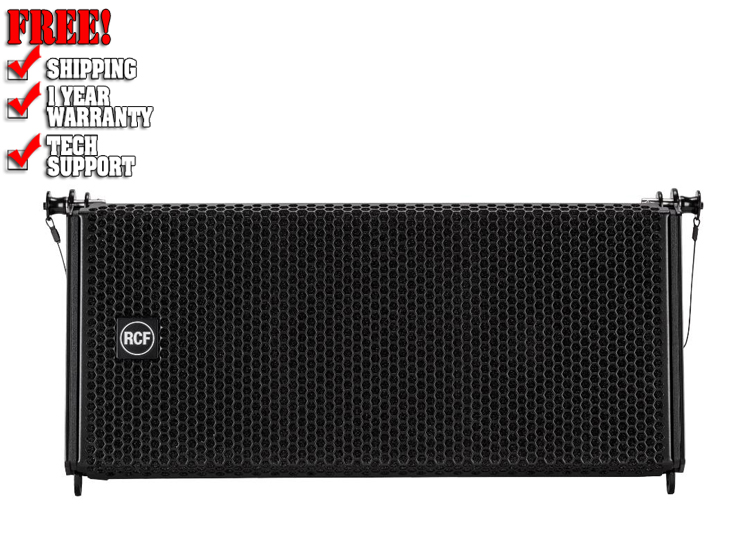

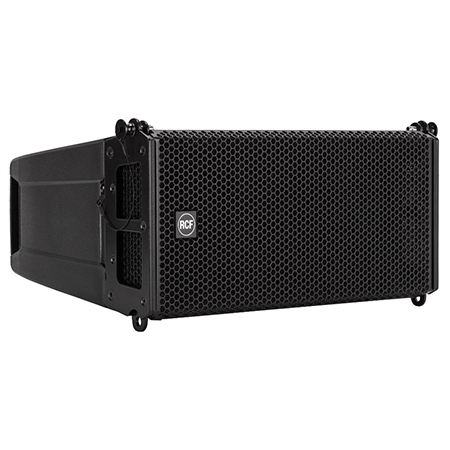

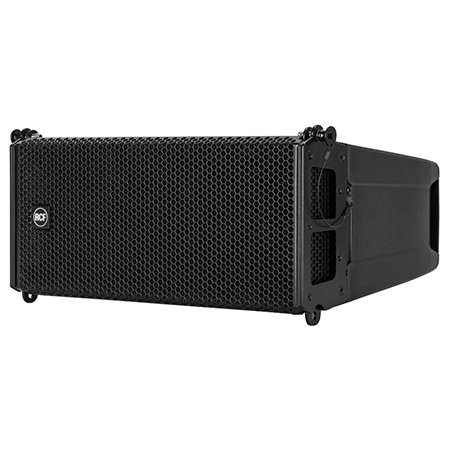

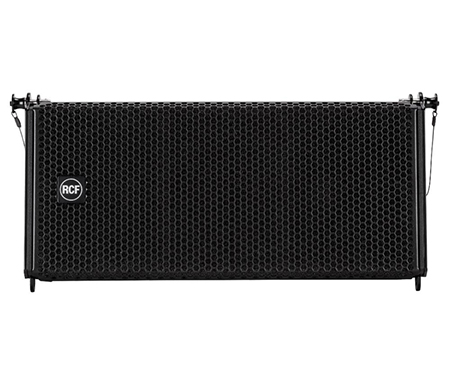

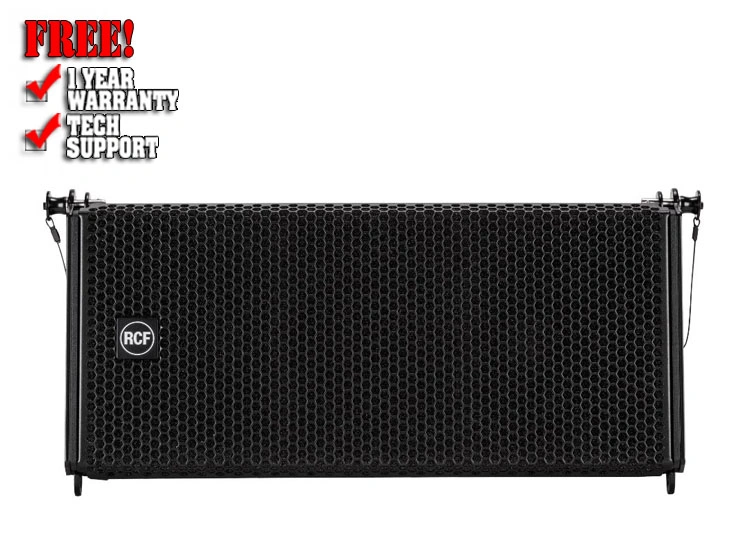

RCF HDL-6A

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers ? two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Features

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

Specification

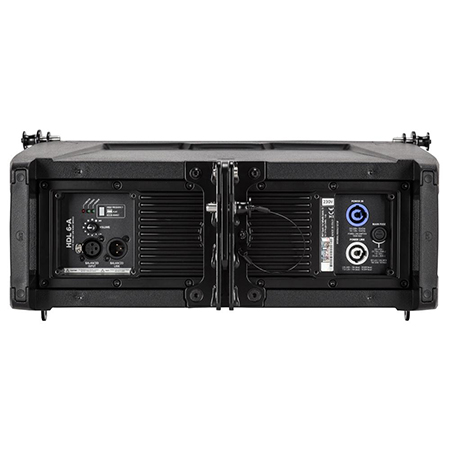

Input

• Input Connectors XLR male
• Output Connectors XLR female
• Input Sensitivity +4 dBu
• Power Indicators Power cord is connected and the power switch is turned on this indicator lights green
• Signal Indicator Signal indicator lights green if there is signal present on the main XLR input
• Limiter Built-in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers

Processor

• Crossover Frequencies 900 Hz
• Protection Thermal, RMS
• Limiter Soft limiter
• Controls HF correction

Amplifier

• Peak Power Total: 1400 W
• High Frequencies: 400 W
• Low Frequencies: 1000 W
• RMS Power Total: 700 W
• High Frequencies: 200 W
• Low Frequencies: 500 W
• Cooling Convection
• Connection VDE connector in

Physical

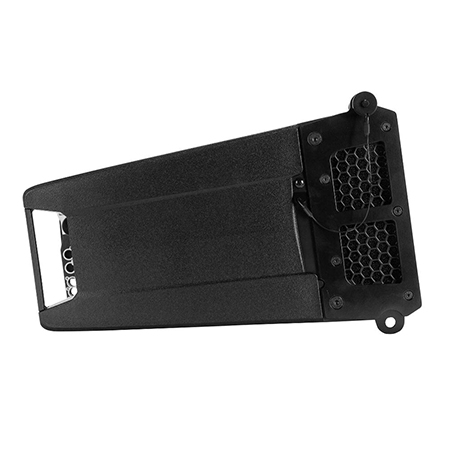

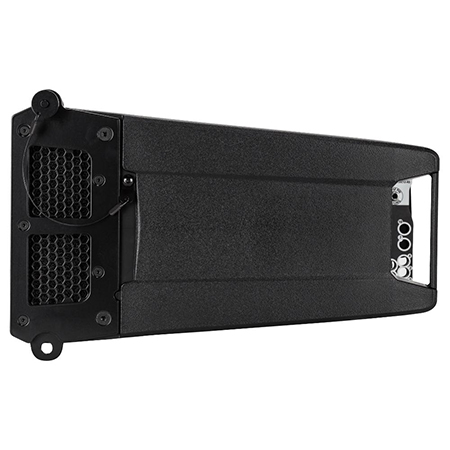

• Hardware Array fittings
• Cabinet Composite PP
• Handles 2 back
• Dimensions 9.3 x 18.5 x 15" (23.7 x 47 x 37.7 cm)
• Weight 25.4 lb (11.5 kg)
• Frequency Response (-3 dB) 65 Hz to 20 kHz
• Maximum SPL 131 dB
• Horizontal Coverage Angle 100°
• Vertical Coverage Angle 10° maximum
• Compression Driver 1.0" (2.5 cm) neo, 1.7" (4.3 cm) voice coil
• Woofer 2 x 6" (15.2 cm) neo, 2.0" (5.1 cm) voice coil
