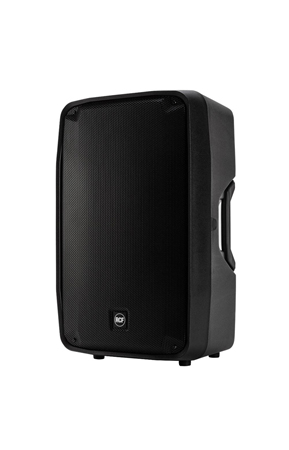

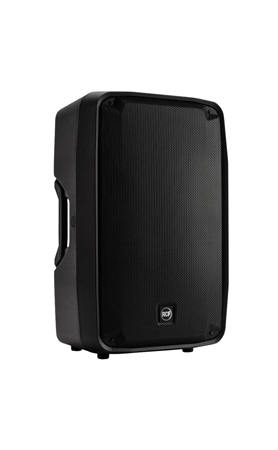

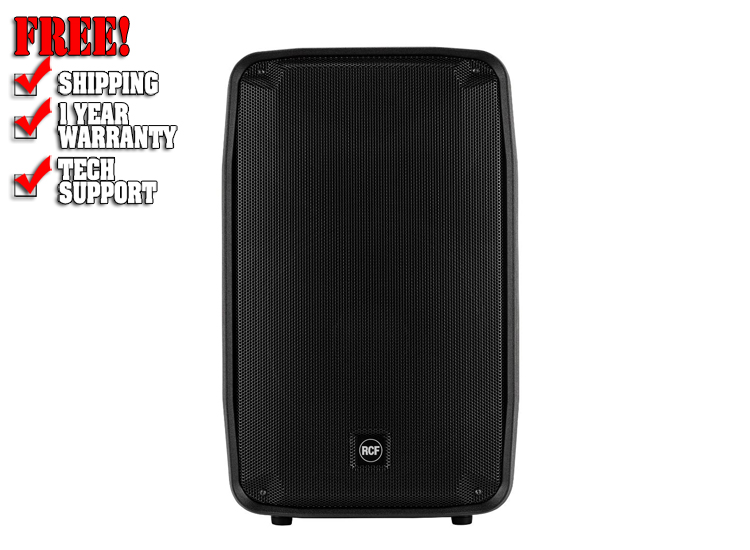

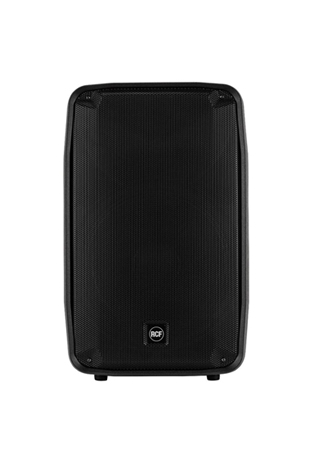

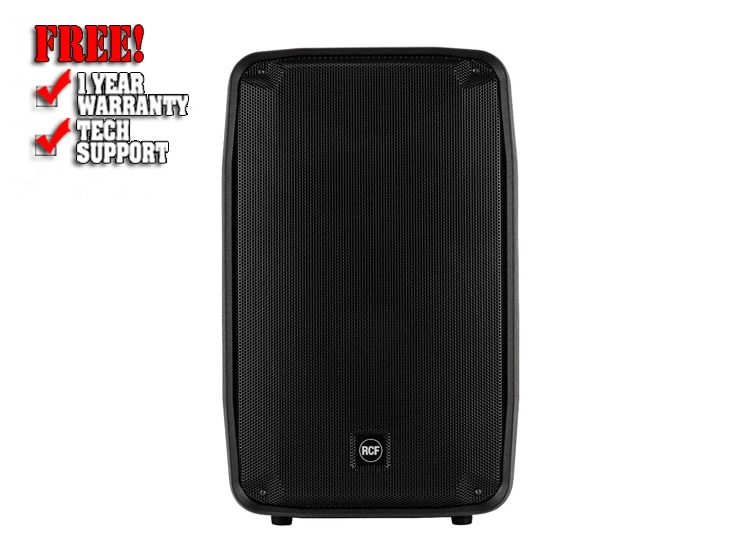

RCF HD 35-A

ACTIVE TWO-WAY SPEAKER

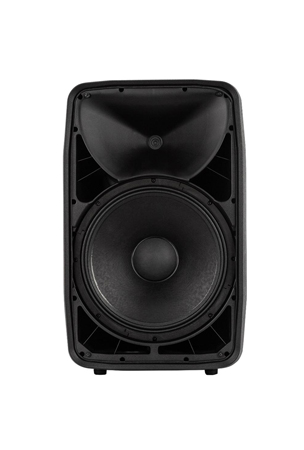

The titanium dome, voice coil neodymium compression driver offers unique vocal clarity and sound projection on the The titanium dome, 3.0" voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15" woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.

FEATURES

• 132 dB Max SPL
• 1400 Watts 2-way peak power
• DSP Processing with FiRPHASE
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 15" Woofer, high power
• 800 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• Silent Fanless Class-D Amplifier

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D-Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Rental proof

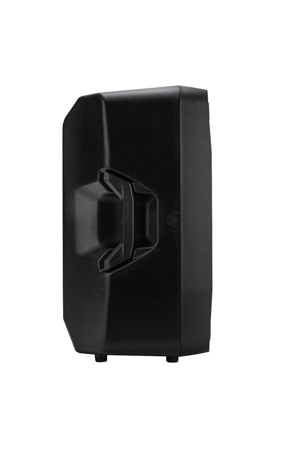

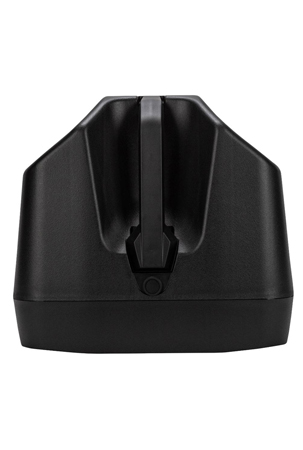

D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.

High demand applications

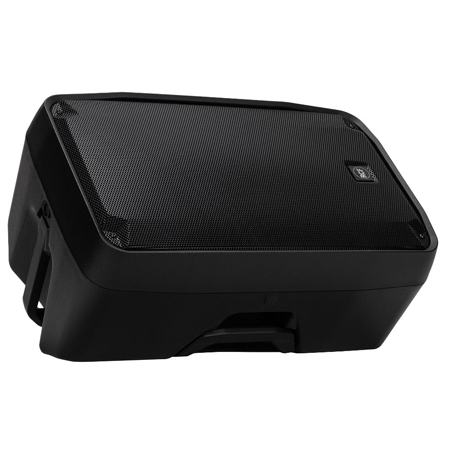

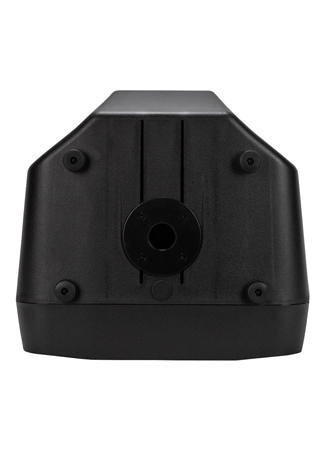

The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1.4'', 3.0'' v.c
• Woofer: 15'', 3.0'' v.c

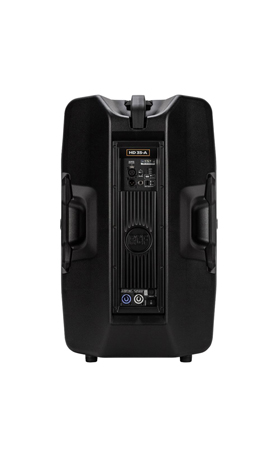

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

POWER SECTION

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS

• Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
• Handles: 1 Top, 2 Side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 714 mm / 28.11 inches
• Width: 442 mm / 17.4 inches
• Depth: 397 mm / 15.63 inches
• Weight: 22 kg / 48.5 lbs

SHIPPING INFORMATION

• Package Height: 750 mm / 29.53 inches
• Package Width: 440 mm / 17.32 inches
• Package Depth: 480 mm / 18.9 inches
• Package Weight: 24.5 kg / 54.01 lbs
