RCF EVOX 5

Description

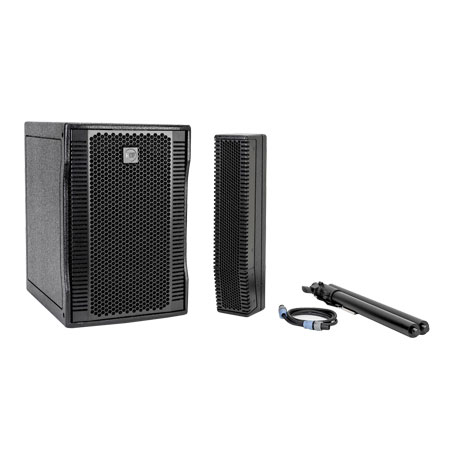

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0" full range transducers in the line source satellite and a deep sounding 10" woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

EVOX TWO-WAY ARRAYS

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array

LIVE SOUND

Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.

DJs

Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.

Conferences

Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.

Key Features:

FEATURES

• 800 Watt
• 125 dB max SPL
• 45 Hz 20 kHz frequency response
• 10" Woofer, 2.0" v.c.
• 5 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing

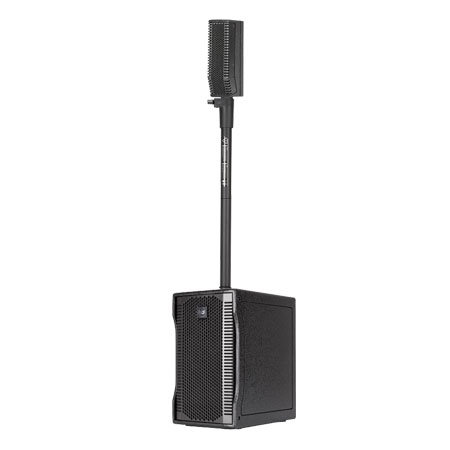

• Pole mountable, easy set-up and transportation

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB: 45 Hz ÷ 20 Hz
• Max SPL: 125 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 5 x 2", 1.0" v.c.

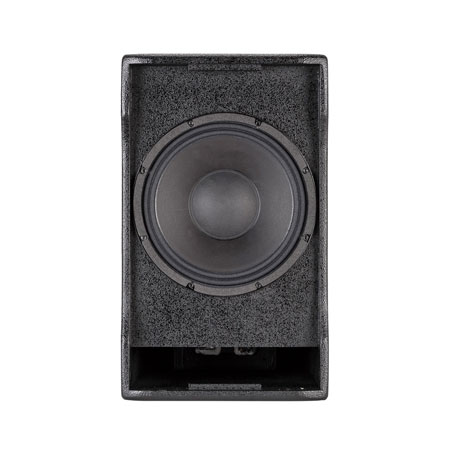

• Woofer: 10", 2.0" v.c.

INPUT/OUTPUT SECTION

• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

PROCESSOR SECTION

• Crossover frequencies: 220 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, xover

AMPLIFIER SPECIFICATIONS

• Total power: 800 W PEAK
• High frequencies: 200 W PEAK
• Low frequencies: 600 W PEAK
• Total power: 400 W RMS
• High frequencies: 100 W RMS
• Low frequencies: 300 W RMS
• Cooling: Convection
• Connections: VDE connector

CABINET

• Cabinet Material: Baltic birch plywood
• Hardware: 2 x M6
• Handles: 1 top
• Pole Mount/Cap: Yes
• Colour: black

PHYSICAL SPECIFICATIONS

• Height: 490/19.29 mm/inch
• Width: 288/11.34 mm/inch
• Depth: 427/16.81 mm/inch
• Net Weight: 19.2/42.32 kg/lbs
