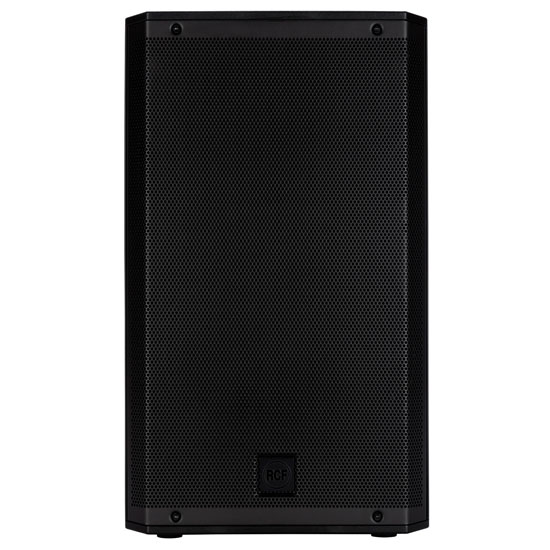

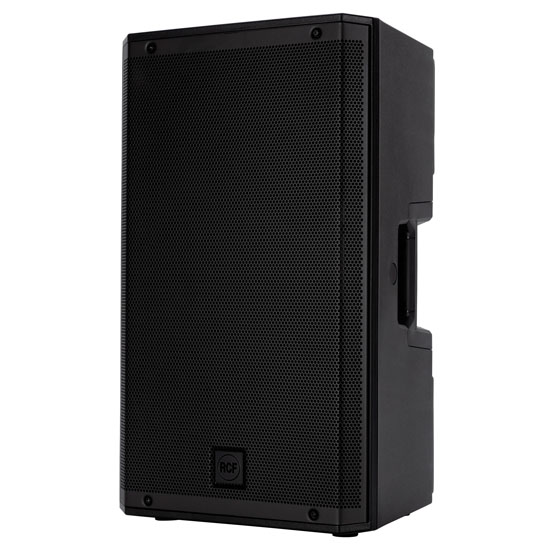

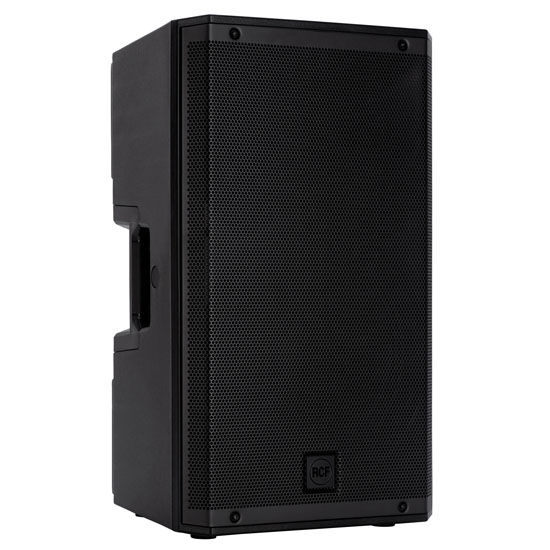

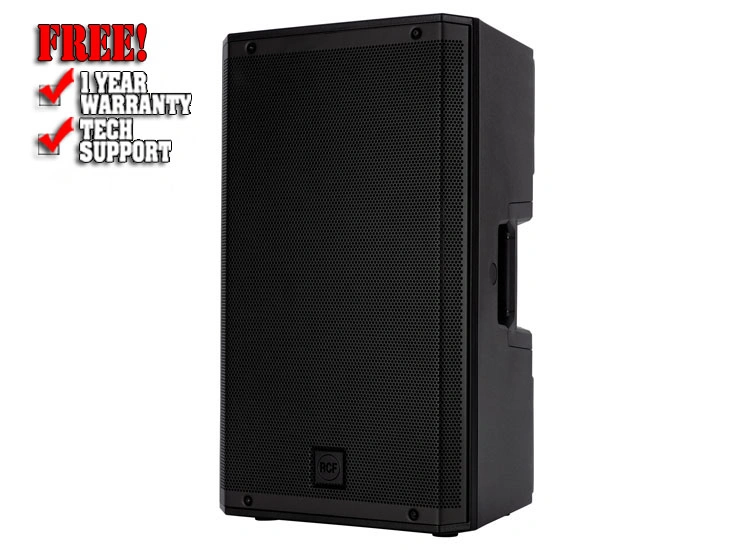

RCF ART 932-A

Professional Active 12" Speaker

The RCF ART 932-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 3" titanium/neodymium compression driver, 12" woofer - two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 132 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 932-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

Features:

• Up to 132 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 45-20000 Hz linear frequency response
• 3" Titanium/Neodymium Compression Driver
• 12" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management

Specification

Acoustical specifications

• FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 132 dB
• HORIZONTAL COVERAGE ANGLE: 100°
• VERTICAL COVERAGE ANGLE: 60°

Transducers

• COMPRESSION DRIVER: 1 x 1.4'' neo, 3.0'' v.c
• WOOFER: 12'', 2.5'' v.c

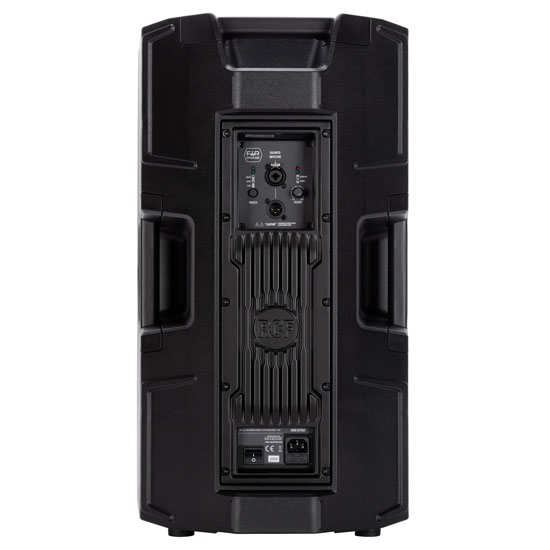

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES: 700Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Linear, Boost, Stage, Volume

Power section

• TOTAL POWER: 2100 W Peak
• HIGH FREQUENCIES: 700 W Peak
• LOW FREQUENCIES: 1400 W Peak
• COOLING: Convection
• CONNECTIONS: VDE

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: PP Composite
• HARDWARE: 1 x M10 Top, 1 x M10 each side

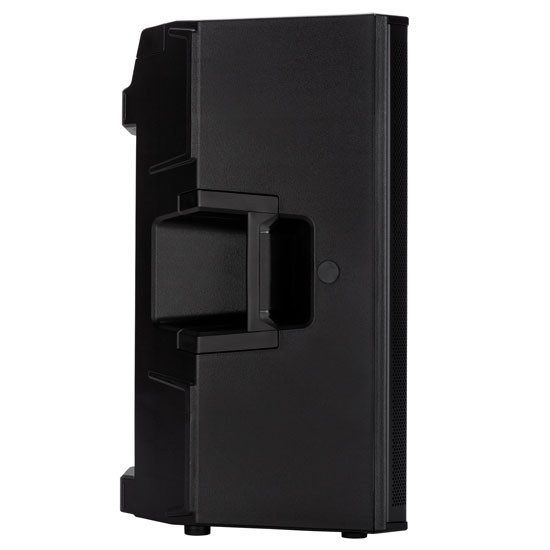

• HANDLES: 1 Top , 1 each side

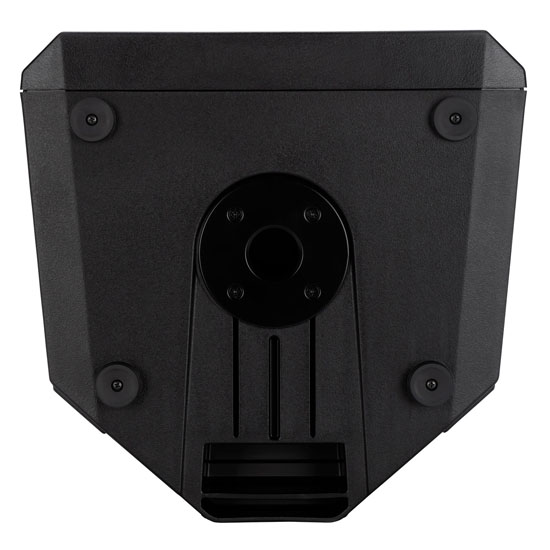

• POLE MOUNT/CAP: Yes
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 642 mm / 25.28 inches
• WIDTH: 370 mm / 14.57 inches
• DEPTH: 363 mm / 14.29 inches
• WEIGHT: 18.8 kg / 41.45 lbs

Shipping informations

• PACKAGE HEIGHT: 685 mm / 26.97 inches
• PACKAGE WIDTH: 430 mm / 16.93 inches
• PACKAGE DEPTH: 423 mm / 16.65 inches
• PACKAGE WEIGHT: 21 kg / 46.3 lbs

What's Included

• Users Manual
• Power Cord
