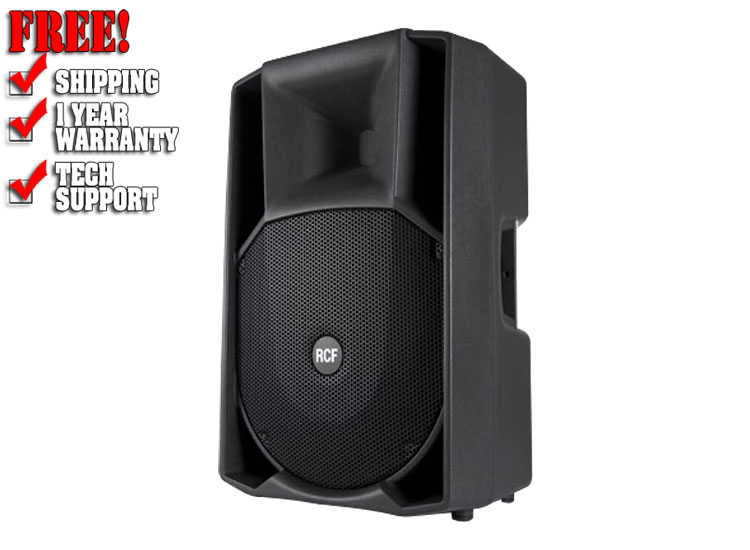

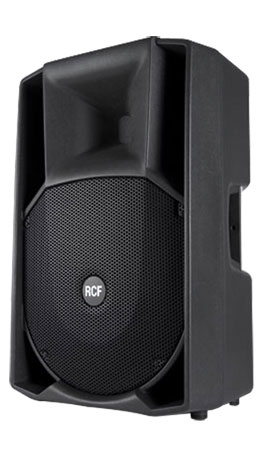

RCF ART 715-A MK II

Overview

ACTIVE TWO-WAY SPEAKER

Well, why not try the ART 715-A as a stage monitor. This is the perfect speaker for live sound situations where you need extra punch in bass reproduction and extremely accurate high frequency response to hear the voice when the band is playing at full throttle.

Features

• 1400 Watt Peak, 700 Watt RMS digital amplifier
• 130 dB max spl
• x 60, Wide dispersion constant directivity horn
• 15" woofer, high power 3.0" voice coil
• 1" HF driver, Mylar dome, 1.75" voice coil
• DSP Processing

APPLICATIONS

• Nearfield & portable PA
• Foreground/background PA, distributed PA, frontfill and sidefill
• Houses of worship, video monitoring, retail, clubs, performance theatre, theme parks
• Compact voice reinforcement systems
• Stage monitoring

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:50 Hz ÷ 20000 Hz
• Max SPL:130 dB
• Horizontal coverage angle:90°
• Vertical coverage angle:60°
• Compression Driver:1", 1.75" v.c.
• Woofer:15", 3.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal / unbal
• Input connectors:xlr-jack
• Output connectors:xlr
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:1700 Hz
• Protections:Thermal, rms
• Limiter:Soft limiter
• Controls:Volume, EQ shape

AMPLIFIER SPECIFICATIONS

• Total power:1400 W PEAK
• High frequencies:400 W PEAK
• Low frequencies:1000 W PEAK
• Total power:700 W RMS
• High frequencies:200 W RMS
• Low frequencies:500 W RMS
• Cooling:Convection / forced
• Connections:VDE connector in

CABINET

• Cabinet Material:Composite PP
• Hardware:2xM10 flying p.
• Handles:2 side, 1 top
• Pole Mount/Cap:Yes
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:708 / 27.87 mm/inch
• Width:437 / 17.2 mm/inch
• Depth:389 / 15.31 mm/inch
• Net Weight:19.4 / 42.76 kg/lbs
