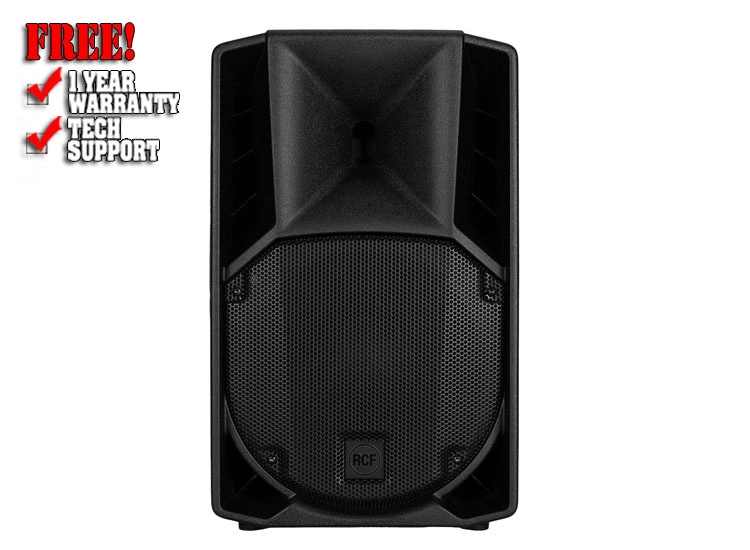

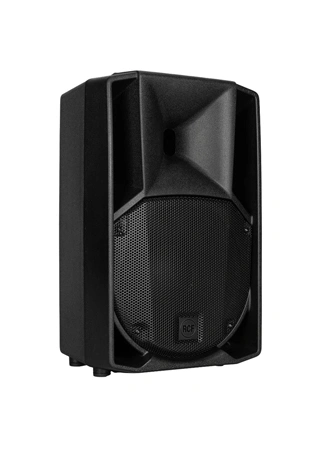

RCF ART 710-A MK5

ACTIVE TWO-WAY SPEAKER

ART 710-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 10" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior Transducers

Woofers and compression drivers are precision built taking advantage of RCF's technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

High Frequencies The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer. Low Frequencies Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 7.

Experience The Depths of Sound

XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

Your Ideal Stage Partner

The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Bring ART With You

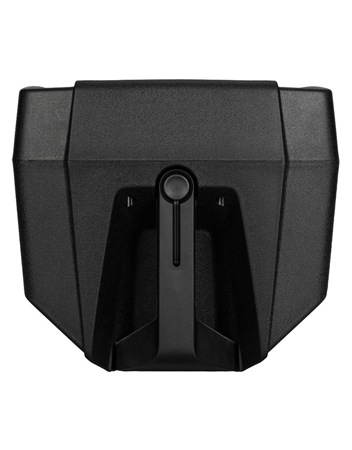

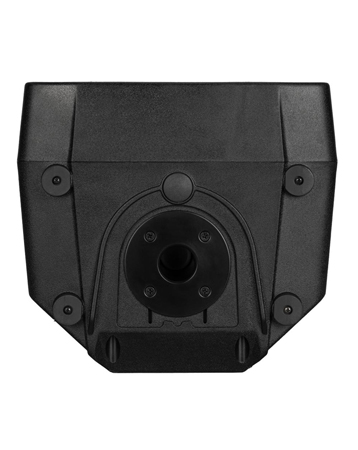

The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to also be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

FEATURES

• 129 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 70°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 1,75" Compression Driver
• 10" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 129 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 10'', 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 1600
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line

POWER SECTION

• Total Power: 1400 W Peak
• High frequencies: 400 W Peak
• Low frequencies: 1000 W Peak
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 2 x M10
• Handles: 1 on top
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 548 mm / 21.57 inches
• Width: 340 mm / 13.39 inches
• Depth: 305 mm / 12.01 inches
• Weight: 14.2 kg / 31.31 lbs

SHIPPING INFORMATION

• Package Height: 585 mm / 23.03 inches
• Package Width: 425 mm / 16.73 inches
• Package Depth: 405 mm / 15.94 inches
• Package Weight: 16.8 kg / 37.04 lbs
