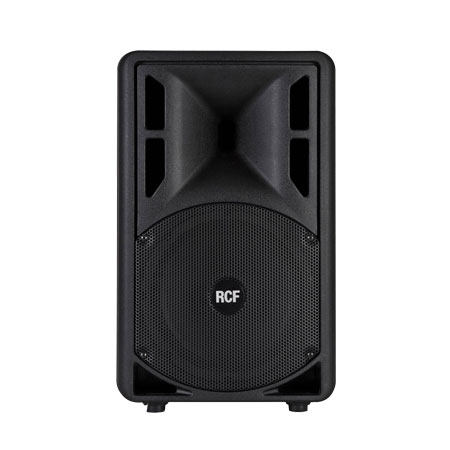

RCF ART 310A MKIII

Description

Thanks to its incredible amplifier's power, the high quality transducers and very compact size cabinet, it is the ideal speaker in all the situations where the output of a PA system and the size of a monitor are important. The 10" woofer features a 2.0" voice coil and delivers very high efficiency and controlled bass reproduction.

It can be used for live sound, playback, monitoring, corporate events and presentations. The ART 310-A is very easy to transport everywhere.

Key Features & Specifications:

FEATURES

• 800 Watt Peak, 400 Watt RMS, bi-amplification
• 127 dB max spl
• 90 x 70, Wide dispersion constant directivity horn
• 10" high power woofer 2.5" voice coil
• 1" HF driver, titanium dome, 1.5" voice coil

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:50 Hz ÷ 20000 Hz
• Max SPL:127 dB
• Horizontal coverage angle:90°
• Vertical coverage angle:70°
• Compression Driver:1", 1.5" v.c.
• Woofer:10", 2.0" v.c

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:xlr
• Output connectors:xlr
• Input sensitivity:0 dBu
• Mic. Input Sensitivity:-40

PROCESSOR SECTION

• Crossover frequencies:1800 Hz
• Protections:DC / short cir.
• Limiter:Fast limiter
• Controls:Volume/EQ settings

AMPLIFIER SPECIFICATIONS

• Total power:800 W PEAK
• High frequencies:200 W PEAK
• Low frequencies:600 W PEAK
• Total power:400 W RMS
• High frequencies:100 W RMS
• Low frequencies:300 W RMS
• Cooling:Convection
• Connections:VDE connector in

CABINET

• Cabinet Material:Composite PP
• Hardware:2xM10 flying p.
• Handles:1 top
• Pole Mount/Cap:Yes
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:537 / 21.14 mm/inch
• Width:337 / 13.26 mm/inch
• Depth:315 / 12.40 mm/inch
• Net Weight:12.6 / 27.77 kg/lbs
