HDL 20-A Tripod Two Pack

Fully Integrated System

The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

HDL 20-A Features:

• 1400 Watt Peak power - 700 Watt RMS.
• 135 dB max SPL.
• 55 Hz 20 kHz frequency response.
• 2 x 10" Woofers.
• 1 x 3" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

SUB 702-AS II Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

Bespeco PN90XLNO Pneumatic Speaker Stand with Aluminium Tube Structure

Pneumatic speaker stand with aluminium tube structure 35 x 1,5 mm and steel legs 35 x 1,2 mm. Such features make the stand, among its range, the strongest and more stable in the market. Innovative design.

RCF Suspending Bar For HDL 20-A Line Array System [FB-HDL20-LIGHT]

Light Suspending flybar for up to 4 HDL20. includes pole mount adaptor.

• To suspend up to 16 HDL 20-A modules.
• Strong steel construction.

Applications:

American DJ XL-25 25' XLR to XLR Cable

25-Foot XLR male to XLR female cable.

RCF HDL 20-A Specifications

Acoustical Specifications

• Frequency Response -3 dB: 55 Hz ÷ 20000 Hz
• Max SPL: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• Compression Driver: 2", 3.0" v.c.
• Woofer: 2 x 10", 2.5" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware
• Handles: 2 side, 2 back
• Colour: Black

Physical Specifications

• Height: 294 / 11.5 mm/inch
• Width: 705 / 27.7 mm/inch
• Depth: 445 / 17.5 mm/inch
• Net Weight: 29 / 63.93 kg/lbs

Bespeco PN90XLNO Specifications

• Minimum Height 133,5 cm.
• Maximum Height 213 cm.
• Maximum Opening 120 cm.
• Weight 4 Kg.
• Maximum Carriage Capacity 90 Kg.
• Total Volume 0,181 cbm
• Package 6
• Color black/orange
• Paint no toxic powder
• Material of Construction Steel + Aluminium

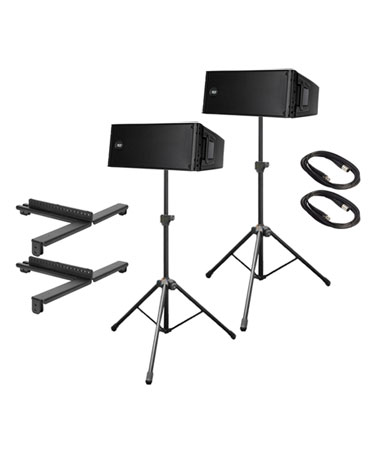

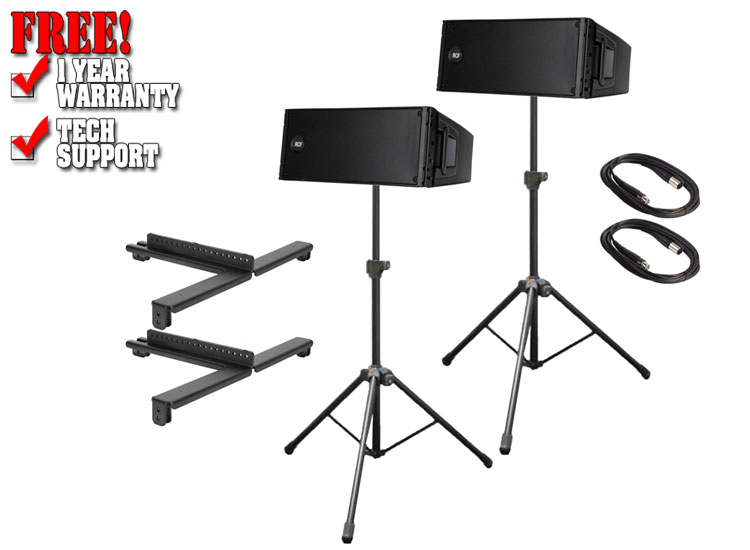

What's in the Box:

This Package Includes:

• (2) RCF HDL 20-A Active Line Array Module Speakers
• (2) Bespeco PN90XLNO Pneumatic Speaker Stands with Aluminium Tube Structure
• (2) RCF Suspending Bar For HDL 20-A Line Array Systems [FB-HDL20-LIGHT]
• (2) American DJ XL-25 25' XLR to XLR Cables

The HDL 20-A Box Includes:

• (1) RCF HDL 20-A Active Line Array Module Speaker
• (1) PowerCON to Edison Power Cord
• (1) User manual

The PN90XLNO Box Includes:

• (1) Bespeco PN90XLNO Pneumatic Speaker Stand with Aluminium Tube Structure

The FB-HDL20-LIGHT Box Includes:

• (1) Stack bar
• (1) Pickup point included
• (1) Pole mount support included
• (7) pins included

The XL-25 Box Includes:

• (1) American DJ XL-25 25' XLR to XLR Cable
