HDL 20-A Rumble Pack

Fully Integrated System

The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

HDL 20-A Features:

• 1400 Watt Peak power - 700 Watt RMS.
• 135 dB max SPL.
• 55 Hz 20 kHz frequency response.
• 2 x 10" Woofers.
• 1 x 3" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

SUB 702-AS II Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

RCF SUB 8006-AS Dual 18" Active High Power Subwoofer

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

SUB 8006-AS Features:

• 5000 Watt Peak power - 2500 Watt RMS.
• 141 dB max SPL.
• 30 Hz - 120 Hz frequency response.
• 2 x 18" Woofer.
• DSP controlled Input section with selectable presets.
• Delay control.
• Integrated mechanics for multiple configuration with HDL 20-A.
• Baltic birch tour grade cabinet.

SUB 8006-AS Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

RCF Suspending Bar For HDL 20-A Line Array System [FB-HDL20-LIGHT]

Light Suspending flybar for up to 4 HDL20. includes pole mount adaptor.

• To suspend up to 16 HDL 20-A modules.
• Strong steel construction.

Applications:

• HDL 20-A clusters.
• Touring.
• Live events.
• Fixed installations.

RCF AC-CONECT-8006 Ground Stack Connector to Attach FB-HDL2018 to SUB8006 (sold as pair)

• Accessory to lock FLY BAR HDL 20-18 to the SUB 8006-AS.
• Accessory to lock FLY BAR HDL 10 to the SUB 8004-AS.
• M20 fixing point.
• Two pieces, 4 pins

American DJ XL-25 25' XLR to XLR Cable

• 25-Foot XLR male to XLR female cable.

Hosa Technology HXX-003 3' REAN XLR3F to XLR3M Pro Balanced Interconnect Cable

This cable is designed to connect gear with XLR outputs to gear with XLR inputs. It is ideal for use in touring and other live-sound applications. Features include:

• 90% OFC spiral shield for a higher signal to noise ratio.
• Silver-plated REAN connectors for superior signal transfer.
• 24 AWG Oxygen-Free Copper (OFC) conductors for enhanced signal clarity.

RCF HDL 20-A Specifications

Acoustical Specifications

• Frequency Response -3 dB: 55 Hz ÷ 20000 Hz
• Max SPL: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• Compression Driver: 2", 3.0" v.c.
• Woofer: 2 x 10", 2.5" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware
• Handles: 2 side, 2 back
• Colour: Black

Physical Specifications

• Height: 294 / 11.5 mm/inch
• Width: 705 / 27.7 mm/inch
• Depth: 445 / 17.5 mm/inch
• Net Weight: 29 / 63.93 kg/lbs

RCF SUB 8006-AS Specifications

Acoustical Specifications

• Frequency Response -3 dB: 30 Hz ÷ 120 Hz
• Max SPL: 141 dB
• Woofer: 2 x 18", 4.0" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover frequencies: Selectable 80 Hz - 100 Hz Hz
• Protections: Thermal, RMS
• Limiter: Fast limiter
• Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

Amplifier Specifications

• Total power: 5000 W PEAK
• Low frequencies: 5000 W PEAK
• Total power: 2500 W RMS
• Low frequencies: 2500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Baltic Birch
• Hardware: Mounting points
• Handles: 4 side
• Colour: Black

Physical Specifications

• Height: 709 / 27.91 mm/inch
• Width: 1109 / 43.66 mm/inch
• Depth: 700 / 27.5 mm/inch
• Net Weight: 90 / 198.41 kg/lbs

HXX-003 Specifications

• Connectors: REAN XLR3F to XLR3M
• Conductors: 24 AWG x 2 OFC
• Shield: 90% OFC Spiral

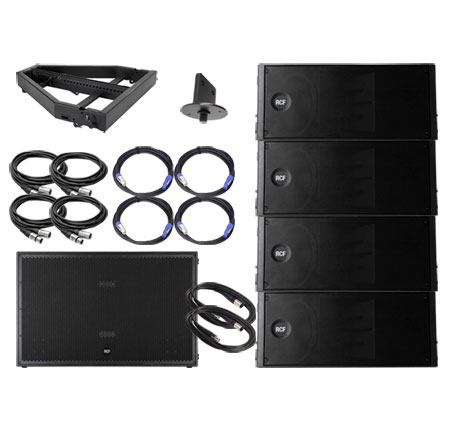

What's in the Box:

This Package Includes:

• (4) RCF HDL 20-A Active Line Array Module Speakers
• (1) RCF SUB 8006-AS Dual 18" Active High Power Subwoofer
• (1) RCF FB-HDL20-18 Flybar for Suspending HDL 20-A
• (2) RCF AC-CONECT-8006 Ground Stack Connectors to Attach FB-HDL2018 to SUB8006
• (2) American DJ XL-25 25' XLR to XLR Cables
• (4) Hosa Technology HXX-003 3' REAN XLR3F to XLR3M Pro Balanced Interconnect Cables
• (4) RCF POWERCON-JUMPER PowerCON jumper cables for line array modules

Each HDL 20-A Box Includes:

• (1) RCF HDL 20-A Active Line Array Module Speaker
• (1) PowerCON to Edison Power Cord
• (1) User manual

The SUB 8006-AS Box Includes:

• (1) RCF SUB 8006-AS Dual 18" Active High Power Subwoofer
• (1) Power cord
• (1) User manual

The FB-HDL20-18 Box Includes:

• (1) Suspending Flybar for HDL 20-A
• (3) pins included
• (1) stack bar included

Each AC-CONECT-8006 Box Includes:

• (2) RCF AC-CONECT-8006 Ground Stack Connector Attach FB-HDL2018 to SUB8006

Each XL-25 Box Includes:

• (1) American DJ XL-25 25' XLR to XLR Cable

Each HXX-003 Box Includes:

• (1) Hosa Technology HXX-003 3' REAN XLR3F to XLR3M Pro Balanced Interconnect Cable

Each POWERCON-JUMPER Box Includes:

• (1) RCF POWERCON-JUMPER PowerCON jumper cable for line array modules
