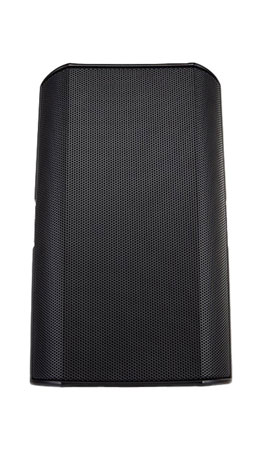

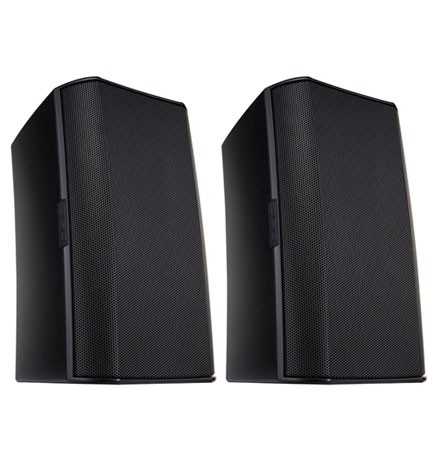

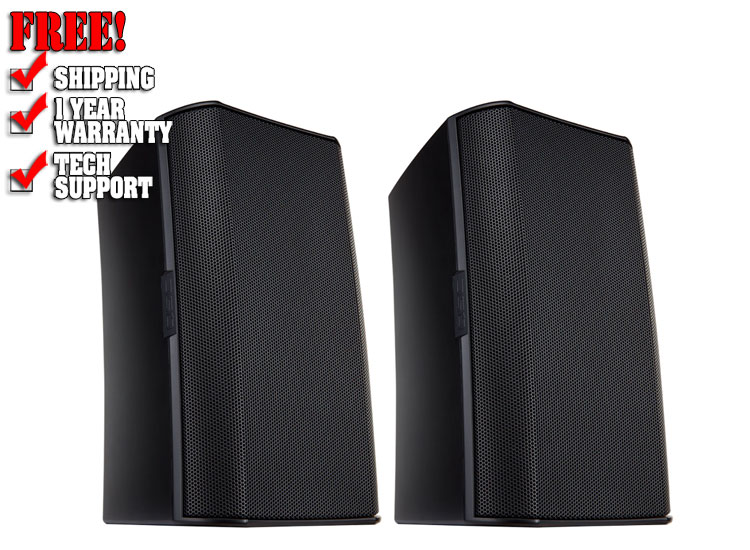

QSC AcousticDesign AD-S6T

6.5-inch Surface-mount Loudspeakers - Black

Wherever you need it, the QSC AcousticDesign AD-S6T is there. This top-notch surface-mount speaker boasts a weather-treated 6.5-inch woofer and 1-inch silk-dome tweeter, and QSC's DMT technology ensures smooth uniform frequency response throughout its 105° conical coverage area. You also get advanced voicing filter sets using QSC Intrinsic Correction, which is available through the company's Q-Sys processing. This install speaker also features low-saturation, low-loss 70V/100V transformers with 8-ohm bypass. The AD-S6T meets IP-54 requirements for dust and splash resistance, its lightweight ABS enclosure offers excellent durability, and its sealed input panel cover and powder-coated grille yield added weather resistance. The rock-solid installation supplied by the AD-S6T's X-Mount system. You can install and deploy this speaker at virtually any angle with zero slippage over time. Anyone searching for a top-flight install loudspeaker for indoor or outdoor applications will be amazed by the AcousticDesign AD-S6T.

Features

• Weather-treated 6.5-in. woofer and 1-in. silk-dome deliver outstanding full-range sound
• DMT technology ensures smooth uniform frequency response throughout a 105° conical coverage area
• Advanced voicing filter sets available via QSC Intrinsic Correction
• Low-saturation, low-loss 70V/100V transformers with 8-ohm bypass
• Meets IP-54 requirements for dust and splash resistance
• Durable ABS enclosure with a sealed input panel cover and powder coated aluminum grille for added weather resistance
• X-Mount system provides rock-solid installation with maximum flexibility and minimum slippage over time

SPECIFICATIONS

• Powered: No
• Power Configuration: 2-way
• Quantity: Pair
• LF Driver Size: 6.5" paper cone woofer
• HF Driver Size: 1" silk dome tweeter
• Power Rating: 150W RMS
• 70V/100V Output: 70V/100V: 60W, 30W, 15W, 7.5W (70V only)
• Impedance: 8 ohms

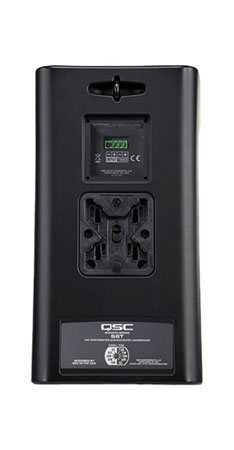

• Inputs: 1 x 4-pin Euroblock
• Frequency Range: 60Hz-20kHz
• Maximum Peak SPL: 116dB SPL
• Horizontal Coverage Angle: 105 Degrees
• Vertical Coverage Angle: 105 Degrees
• Enclosure Material: ABS with Aluminum Grille
• Application: Indoor
• Mounting Options: Wall-mount
• Height: 14.4"
• Width: 8.5"
• Depth: 8.5"
• Weight: 13.6 lbs. (per speaker)
