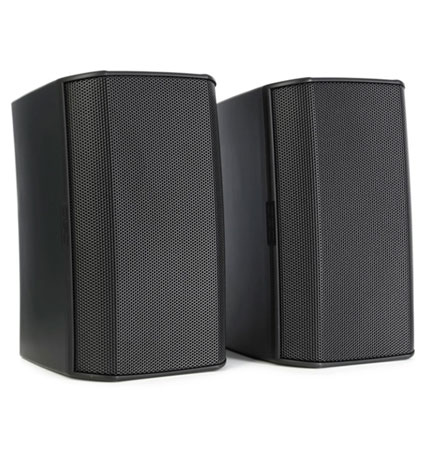

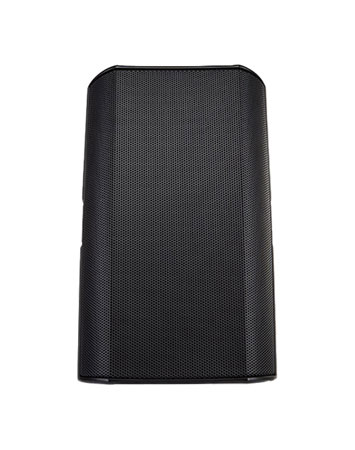

QSC AcousticDesign AD-S4T

4.5-inch Surface-mount Loudspeakers - Black

Wherever you need it, the QSC AcousticDesign AD-S4T is there. This top-notch surface-mount speaker boasts a weather-treated 4.5-inch woofer and 0.75-inch silk-dome tweeter, and QSC's DMT technology ensures smooth uniform frequency response throughout its 120-degree conical coverage area. You also get advanced voicing filter sets using QSC Advanced Intrinsic Correction, which is available through the company's Q-Sys processing. This install speaker also features a low-saturation, low-loss 70-/100-volt transformer with 8-ohm bypass. The AD-S4T meets IP-54 requirements for dust and splash resistance, its lightweight ABS enclosure offers excellent durability, and its sealed input panel cover and powder-coated grille yield added weather resistance. The rock-solid installation supplied by the AD-S4T's X-Mount system. You can install and deploy this speaker at virtually any angle with zero slippage over time. Anyone searching for a top-flight install loudspeaker for indoor or outdoor applications will be amazed by the AcousticDesign AD-S4T.

Features

• Weather-treated 4.5-in. woofer and 0.75-in. silk-dome tweeter deliver outstanding full-range sound
• DMT technology ensures smooth uniform frequency response throughout a 120° conical coverage area
• Advanced voicing filter sets available via QSC Advanced Intrinsic Correction
• Low-saturation, low-loss 70V/100V transformer with 8-ohm bypass
• Meets IP-54 requirements for dust and splash resistance

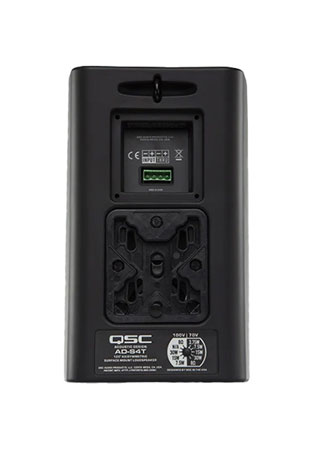

• Durable ABS enclosure with a sealed input panel cover and powder coated aluminum grille for added weather resistance
• X-Mount system provides rock-solid installation with maximum flexibility and minimum slippage over time

SPECIFICATIONS

• Powered: No
• Quantity: Pair
• LF Driver Size: 4.5" Woofer
• HF Driver Size: 0.75" Silk Dome Tweeter
• Total Power: 50W
• 70V/100V Output: 70V/100V: 30W, 15W, 7.5W, 3.75W (70V only)
• Impedance: 8 ohms
• Frequency Range: 68Hz-20kHz
• Maximum Peak SPL: 110dB SPL
• Horizontal Coverage Angle: 120 Degrees (conical)
• Enclosure Material: Weather Resistant
• Height: 10.3"
• Width: 6.34"
• Depth: 6.42"
• Weight: 6.5 lbs.
