QSC AcousticDesign AD-S10T

Surface-mount Loudspeaker - Black

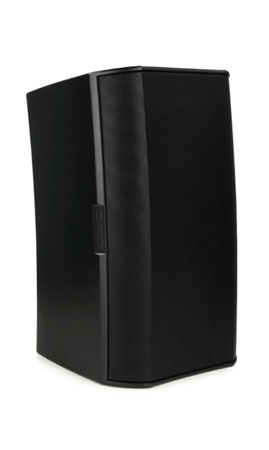

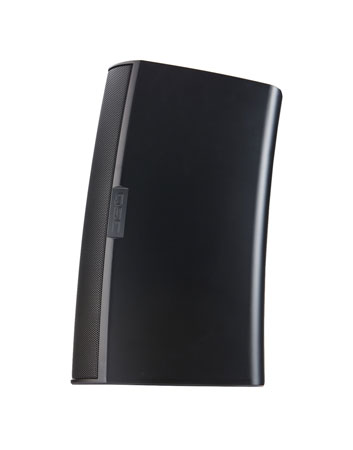

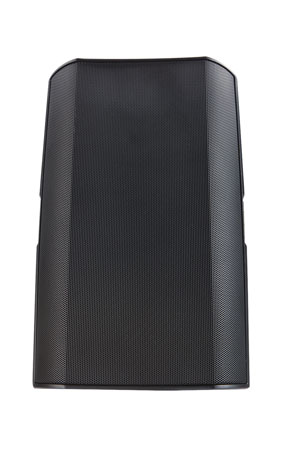

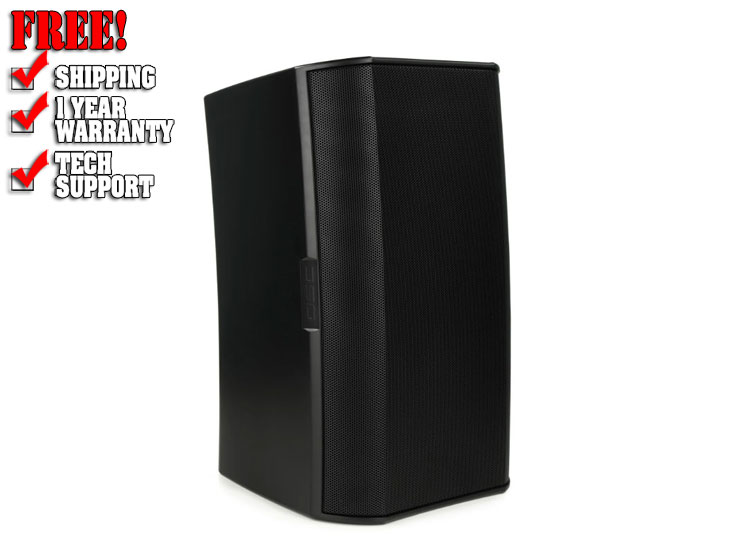

Wherever you need it, the QSC AcousticDesign AD-S10T is there. This top-notch surface-mount speaker boasts a weather-treated 10-inch woofer and 1.4-inch compression driver, and QSC's DMT technology ensures smooth uniform frequency response throughout its 90° conical coverage area. You also get advanced voicing filter sets using QSC Intrinsic Correction, which is available through Q-Sys processing and CXD amplifier platforms. This install speaker also features low-saturation, low-loss 70V/100V transformers with 8-ohm bypass. The AD-S10T meets IP-54 requirements for dust and splash resistance, its lightweight ABS enclosure offers excellent durability, and its sealed input panel cover and powder-coated grille yield you added weather resistance. You can install and deploy this speaker at virtually any angle with zero slippage over time. You also get M10 fittings for optional yoke mounting or suspended installations. Anyone searching for a top-flight install loudspeaker for indoor or outdoor applications will be amazed by the AcousticDesign AD-S10T.

Features

• Weather-treated 10-inch woofer and 1.4-inch compression driver deliver outstanding full-range sound
• DMT technology ensures smooth uniform frequency response throughout a 90° conical coverage area
• Advanced voicing filter sets available via QSC Intrinsic Correction
• Low-saturation, low-loss 70V/100V transformers with 8-ohm bypass
• Meets IP-54 requirements for dust and splash resistance
• Durable ABS enclosure with a sealed input panel cover and powder-coated grille for added weather resistance

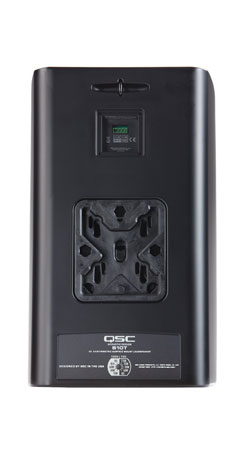

• X-Mount system provides rock-solid installation with maximum flexibility and minimum slippage over time

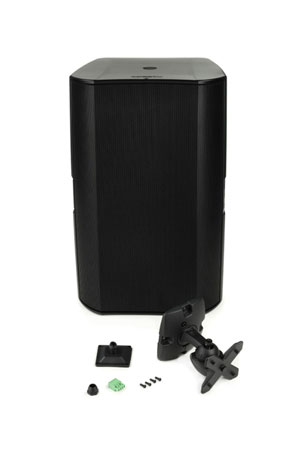

• M10 fittings supply optional yoke mounting or suspended installations

SPECIFICATIONS

• Powered: No
• Power Configuration: 2-way
• Quantity: Single
• LF Driver Size: 10" weather resistant paper cone woofer
• HF Driver Size: 1.4" voice-coil compression driver
• Power Rating: 500W
• 70V/100V Output: 70V/100V: 100W, 50W, 25W, 12.5W (70V only)
• Impedance: 8 ohms
• Inputs: 1 x Euroblock
• Frequency Range: 50Hz-19kHz
• Maximum Peak SPL: 122dB SPL
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 90 Degrees
• Enclosure Material: ABS with aluminum grille
• Application: Indoor
• Mounting Options: Wall-mount
• Height: 20.3"
• Width: 12.5"
• Depth: 11.7"
• Weight: 31 lbs.
