Qsc I-82H

Description

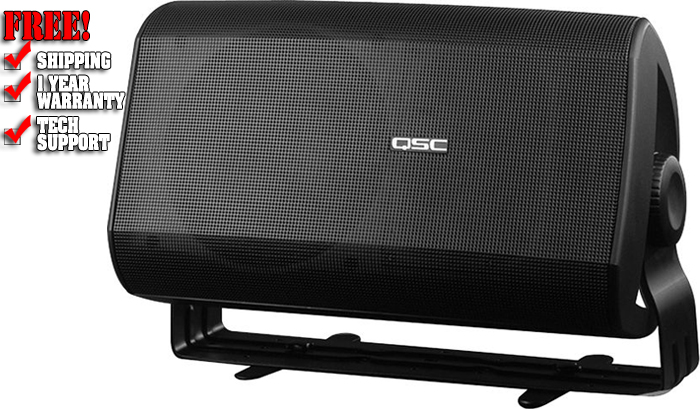

The I-82H enclosure incorporates an 8" weatherproof, LF transducer with a heavy-duty double roll cloth surround and a 1" exit HF compression driver. The HF driver is coupled with QSC's unique Advanced Directivity™ Rotatable Waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its orientation. For quick and secure input setup, the I-82H provides two parallel Speakon® connectors.

An ideal solution for a variety of mobile SR applications, the I-82H includes a pole cup bracket for pole mount applications as well as a 5/8"-27 mic stand adapter that fits most mic and boom stand hardware. With the addition of QSC's new, optional I-YM8 Yoke Mount / Floor Monitor Kit (which contains a bracket with swivel extension feet), the I-82H can be horizontally pole mounted for pan and tilt focusing or used as a floor monitor. For truss mounting, the I-YM8 accepts most industry standard truss clamps.

• 8 inch, 2-way System - in a lightweight, weather-resistant, multipurpose enclosure featuring a heavy duty, powder coated steel grill.
• Advanced Directivity Rotatable Waveguide -(90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
• High Power Capability with Dynamic Protection - rated at 240 watts (IEC) with power protection circuitry to prevent overloads.
• Contemporary Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
• Two Parallel Speakon Connectors - for quick, secure audio input setup.
• Pole Cup and Mic Stand Adapters - included for versatile mounting options.
• Frequency Range: 80Hz - 21kHz (-6dB)
• Frequency Response: 60Hz - 22kHz (-10dB)
• Maximum Output
• Calculated Peak Output: 119dB SPL
• Calculated continuous RMS Output: 113dB SPL
• Impedance: 8 ohm nominal (7 ohm minimum, 210Hz, 135 ohm maximum)
• Power Rating
• RMS Power Handling: 240W (IEC, 8 hours), 200W (IEC, 100 hours)
• Recommended Max Amp Power: 400W RMS
• Sensitivity: 90.5dB, 1 m, free field
• Nominal Coverage: 90 degree H x 60 degree V (-6dB) (rotatable to 60 degree H x 90 degree V)
• Bass Loading: Ported Enclosure tuned to 65Hz
• Band limiting, 6dB signal crest factor
