PreSonus Eris Pro 6 (Single) 2-way Biamped, Active 6.5-inch Coaxial Studio Monitors

Acoustic tuning controls and a three-way Acoustic Space tuning lets you accurately configure the Eris Pro 6 for your room. Flexible input options enable connection to almost any line-level source, from mixers to audio interfaces and more. Provisions for wall and ceiling mounts make it easy to integrate Eris Pro 6 monitors into any stereo or multi-channel system.

Inspired design for inspiring results.

Placing the high-frequency driver in the center of the low-frequency driver increases clarity, widens stereo imaging, and produces an incredibly even mid-range. Vocal clarity, the attack of a snare, and guitar presence shine through, allowing you to quickly and accurately place them in a mix and get the results you desire faster than ever before.

Symmetric response.

The Eris® Pro 6's coaxial design provide a symmetrical dispersion resulting in a crisper stereo image, greater soundstage depth, and superior separation between components in a complex mix.

Set up your studio monitors for your room.

Acoustic Tuning controls ensure you'll get the flattest frequency response possible in your mix environment. You get Low Cut, Mid, and High controls, as well as 3-way Acoustic Space tuning that allows you to easily compensate for the sonic consequences of speaker placement against a wall or in a corner.

Features:

• Single point-source coaxial design for wider sweet spot and better phase alignment
• 6.5-inch, woven-composite, low-frequency driver
• 1.25-inch, silk-dome, high-frequency driver
• 140W, Class AB amplification
• 35 Hz to 20 kHz frequency response
• 106 dB SPL (Peak, @ 1 meter)
• Acoustic Tuning Controls: Acoustic Space (Flat, -2 dB, -4 dB), High Frequency (±6 dB, center 10 kHz, continuously variable), Mid Frequency (±6 dB, center 1 kHz, continuously variable), Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

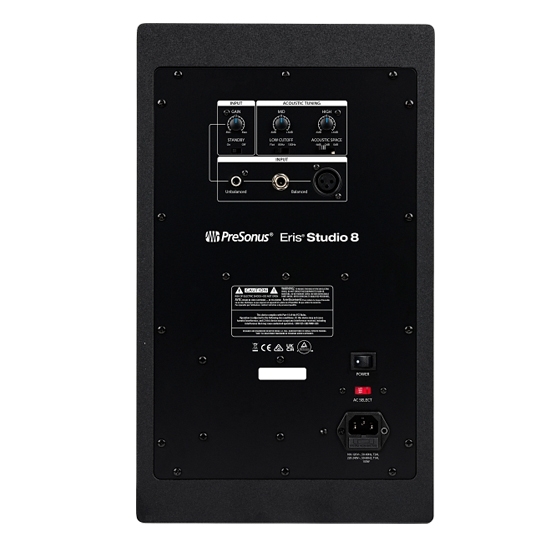

• XLR and 1/4-inch TRS balanced and RCA unbalanced rear-panel inputs
• Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter
• Power Saver mode (engages after 40 minutes)
• Wall and ceiling mountable

Specifications:

• Electronics
  • Voltage : 120V
  • Wattage : 140 Watts
• Miscellaneous
  • Connection Type : IEC
• Hardware
  • Cabinet Material : Vinyl-Laminated, Medium-Density Fiberboard
• Monitors
  • Protections
    • RF interference
    • Output-current limiting
    • Over-temperature
    • Turn-on/off transient
    • Subsonic filter
  • Audio Switches : Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
  • Audio Controls : VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)
  • Peak SPL : 106 dB (@ 1 meter)
  • Crossover Frequency : 3.2 kHz
  • Monitor Inputs : 1- Balanced XLR, 1- Balanced 1/4" TRS, 1- Unbalanced RCA
  • HF Transducers : 1.25" Ultra Low Mass, Silk Dome Tweeter
  • LF Transducers : 6.5" Woven Glass Fiber Composite (Coaxial)
  • Frequency Response : 35 Hz - 20 kHz
  • Input Impedance : 10 kΩ
  • Coverage Pattern : 120 degree (H) x 60 degree (V)
  • Monitor Amplifier Power : LF Amplifier - 75W, HF Amplifier - 65W
• Input Impedance : 10 kΩ
