Pioneer XPRS122

High Quality, Robust Build

Pioneer DJ's all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

Four DSP Modes

Both of the XPRS2 full-range speakers contain four different DSP preset modes-Live, Music, Speech and Studio Monitoring-to address the needs of different listening environments.

16 Customizable User DSP Modes

In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.

Full-Range Speaker Design

The XPRS122 is the larger full range speaker counterpart in Pioneer DJ's XPRS2 Series. Featuring a 12" woofer and 3" voice coil with a 1" exit compression driver and 1.75" voice coil, the speakers deliver comprehensive sound coverage across mid to large audiences and venues. Boasting a frequency response of 48 Hz - 20 kHz and a maximum SPL of 131 dB, the versatile full range speaker delivers powerful sound built to thrive in even the harshest of sound environments such as a live DJ set.

Specifications

Main Features

• Type: 12 inch 2-way active loudspeaker
• Amplifier Output: Class D
  2000W peak

What's in the Box:

• XPRS122 x 1 (not sold as a pair)
• Powerd cord
• Quick start guide
• Important Safety Precautions

Specifications

• Power supply: 110 V to 240 V (50 Hz/60 Hz)
• Power consumption: 800 W
• Frequency Range: 48 - 20000 Hz
• Width: 14.28 in
• Height: 25.08 in
• Depth: 13.78 in
• Weight: 44.53 lb

System characteristic

• DSP modes: Factory Presets (4 types)
  Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
  EQ (4-band equalizer)
  User Programs (16 presets)
• DSP presets modes: Factory presets
  LIVE
  MUSIC

  SPEECH
  MONITOR
• Maximum Sound Pressure: 131 dB
• Cross Over Frequency: 2 kHz

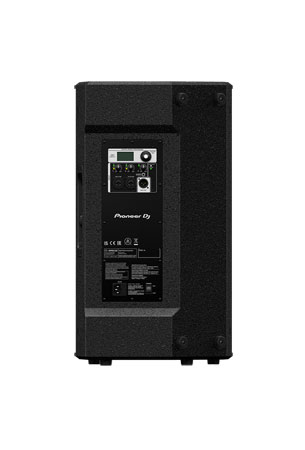

Terminals

• Inputs: MIC / LINE x 1 (Combo)
  HI-Z / LINE x 1 (Combo)
  3.5 mm stereo mini jack x 1 (Unbalanced input)
• Outputs: MIX (XLR)

Speaker

• Driver: 12 inch ferrite LF cone driver
  1.75 inch compression driver
• Finish: Black paint, Rubber feet

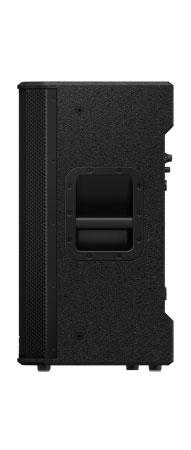

• Handle: 2 metal handles (on left side and top)

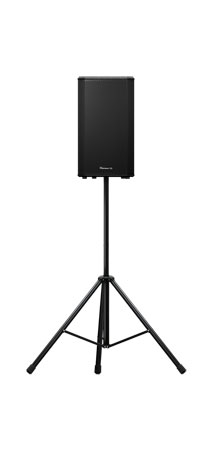

• Pole socket: 35 mm socket
• Rigging point: 10x M10
• Enclosure: Plywood (TSCA)

Protection

• Amplifier Protection: Thermal limiting
  Digital Limiter
  Digital compressor
• Driver Protection: Short circuit protection
• Power unit Protection: Primary AC mains overcurrent protection
  Primary AC mains overvoltage protection
