Powersoft Class D amps for reliable, high-powered performance

Powersoft's new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.

The auto-ranging power supply means you plug in the XPRS Series anywhere in the world - including venues with generators or temporary power supplies - and expect the same high quality sound.

Advanced protection features help prolong your speakers' life

We've packed the speakers with features to protect the driver, amp and power supply - giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker's output to safe levels in the event of output overcurrent.

Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

Power protection

• AC mains over-voltage protection: protects against power surges.
• Plus the status LED on the front of the cabinet can has three settings - power, limiter or off - giving an optional visual reference to the status of the speaker.

High-performance drivers deliver a powerful, full range sound

Both speakers use a high-grade ferrite LF driver (12-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.

Four EQ modes for a variety of genres and environments

Buttons on the back of the speakers give you instant access to four EQ modes:

• Flat: neutral production of the source audio.
• Bass +: amplifies the bass for dance music events.
• Speech: produces clear vocal sounds for seminars and speeches.
• Wedge: reduces the low frequencies to give a more balanced sound if you're using the speaker as a floor monitor.

Rotatable horn lets you mount the speakers vertically and horizontally

The speakers' horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees - giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.

Wedge shape and polemount socket with tilt for a choice of three positions

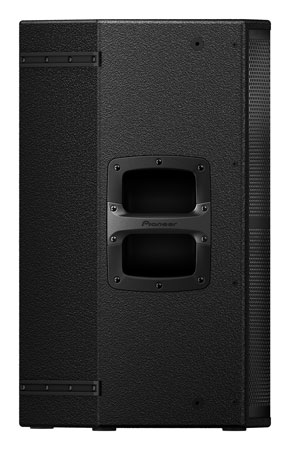

The XPRS12 speakers are wedge shaped, making them ideal floor monitors. Or the polemount socket can be set to straight or tilted to 7 degrees to direct the sound exactly where you want it.

Multiple inputs and outputs for flexible, easy set-up

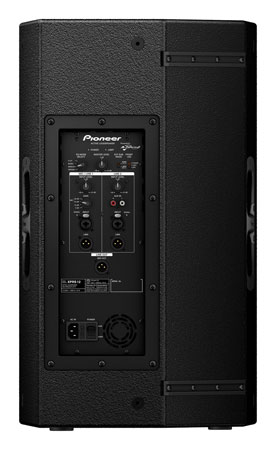

The speakers have two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a MIC and other external devices at the same time - including using an AUX cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones. Each input can be controlled individually or using the master controls for lines one and two. Plus two balanced XLR through output terminals enable easy connection to other speakers and subs.

• Speaker Type: 12" 2-way full range, bass reflex, bi-amp, active speaker
• System characteristic:
• Frequency Response(-10 dB) 50 Hz to 20 kHz
• Dispersion (H x V) 90° x 60° (rotatable)
• Maximum SPL (peak@1m/1w) 135 dB
• Crossover Frequency 2.0 kHz
• Amplifier
• Amplifier type Class D
• Power Rating 2400 W peak / 1200 W cont. (LF800 W/HF400 W)
• Input connectors 2x XLR/TRS Combo (balanced), 2x RCA (unbalanced)
• Impedance 10 kO
• Output connectors 2x Through output XLR (balanced)
  1x Mixed output XLR (balanced)
• Speaker
• LF driver 12-inch ferrite LF cone driver
• HF driver 1.75-inch titanium diaphragm neodymium compression driver
• Enclosure 15 mm birch plywood, bass reflex type
• Finish Impact-resistant, black semi-matt textured
• Handle 2 (on both sides)
• Pole socket 35 mm socket (0°/7° multi-angle)
• Rigging point 12x M10
• Protection
• Amplifier Protection Thermal limiting, over-temperature muting, output overcurrent
• Driver Protection DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
• Power unit Protection Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
• Power unit/other
• Supported voltages 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz)
• Power consumption 167 W
• Dimensions (W x H x D) 380 x 647 x 398 mm
• Weight 23.1 kg
