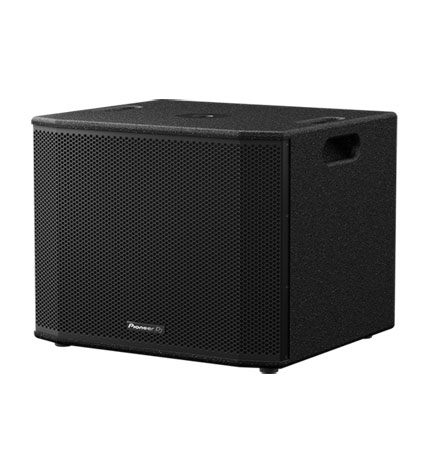

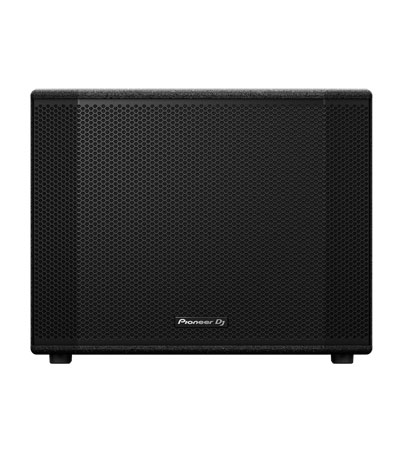

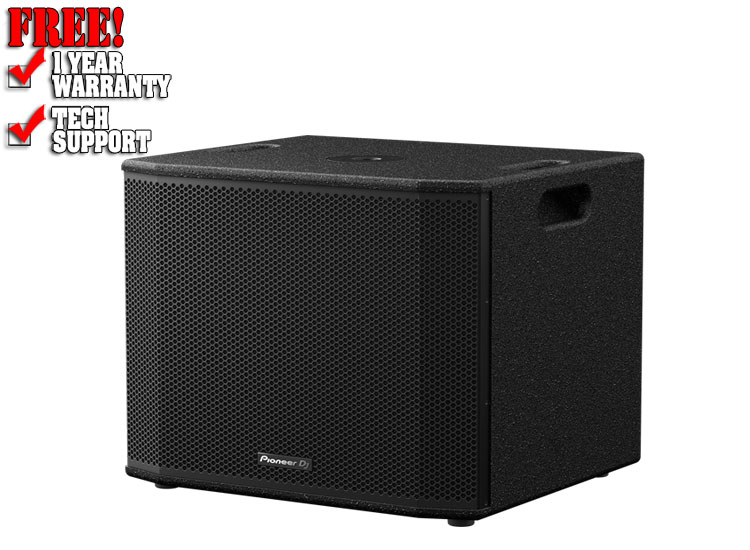

Pioneer XPRS1152S

High Quality, Robust Build

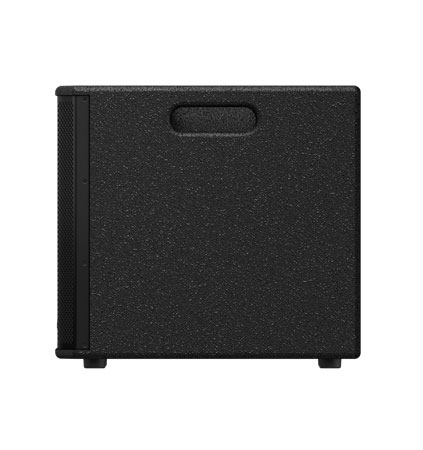

Pioneer DJ's all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

Three DSP Modes

Both of the XPRS2 subwoofers contain three different DSP preset modes-Boost, Extended LF, and Normal-to suit different listening environments.

Accurate Audio Performance / Frequency Response

The XPRS1152S employs a 15" ferrite woofer with a 3" voice coil with long excursion to produce low frequencies with paramount accuracy.

Providing a frequency response of 45 Hz - 120 Hz and a maximum SPL of 129 dB; the subwoofers pack in the performance of a permanent install subwoofer with the compact mobility required by today's mobile artists, performers and venues.

Specifications

Main Features

• Type: 15 inch active subwoofer
• Amplifier Output: Class D
  4000W peak

What's in the Box:

• XPRS1152S x 1 (not sold as a pair)
• Powerd cord
• Quick start guide
• Important Safety Precautions

Specifications

• Supported voltages: 110 V to 240 V (50 Hz/60 Hz)
• Power consumption: 800 W
• Frequency Range: 45 - 120 Hz
• Width: 22.83 in
• Height: 17.72 in
• Depth: 19.8 in
• Weight: 57.98 lb

System characteristic

• DSP modes: EQ Mode Select (3 DSP Preset Modes(Switch))
  LPF
  POLARITY
• DSP presets modes: BOOST
  EXTENDED LF
  NORMAL
• Maximum Sound Pressure: 129 dB

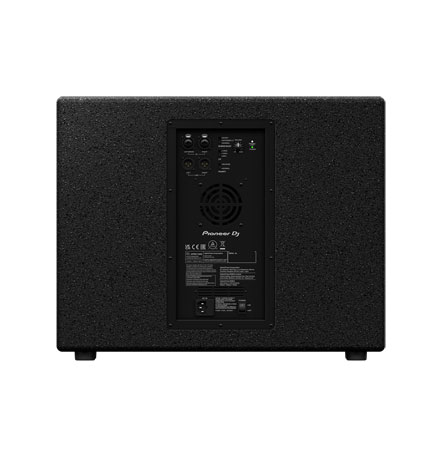

Terminals

• Inputs: Left Mono (Combo)
  Right (Combo)
• Outputs: Left Mono (XLR)
  Right (XLR)

Speaker

• Driver: 15 inch ferrite LF cone driver
• Finish: Black paint, Rubber feet
• Handle: 2 (on both sides)

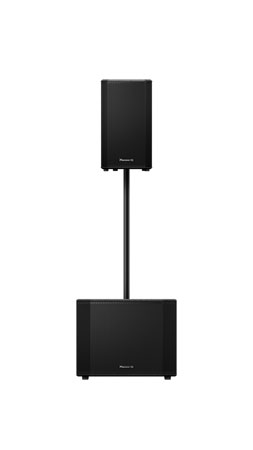

• Pole socket: 35 mm socket
• Enclosure: Plywood (TSCA)

Protection

• Amplifier Protection: Thermal limiting
  Digital compressor
• Driver Protection: Short circuit protection
• Power unit Protection: Primary AC mains overcurrent protection
  Primary AC mains overvoltage protection
