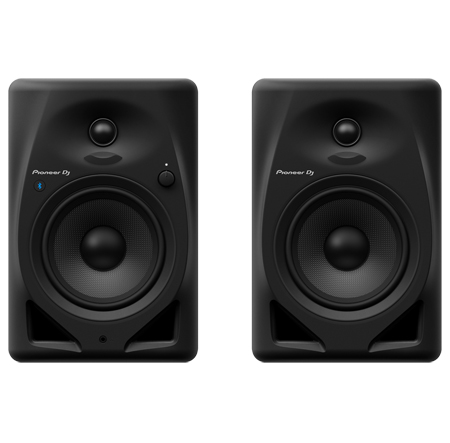

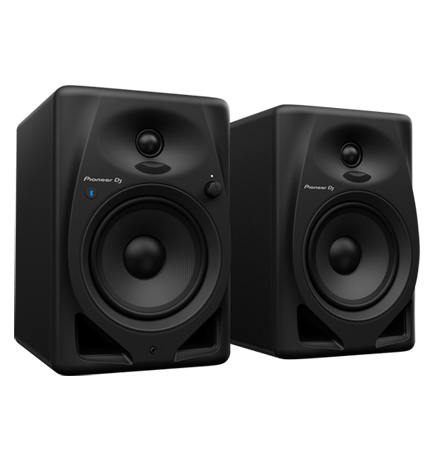

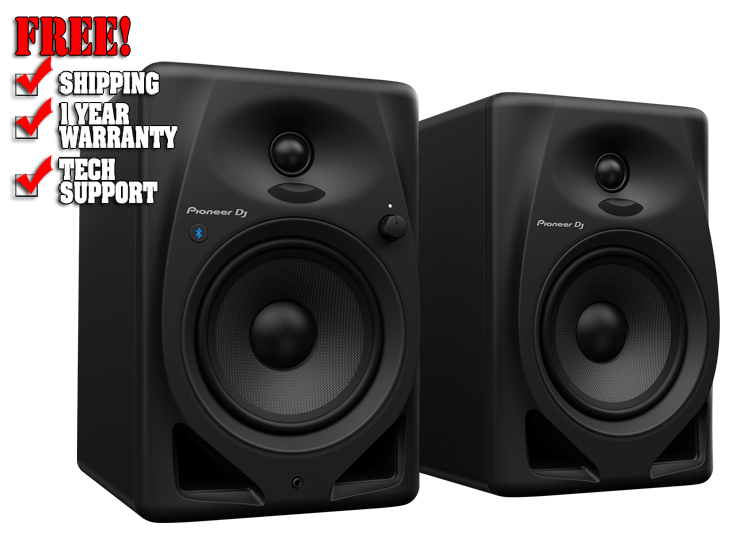

Pioneer DM-50D-BT

Time alignment

The woofer and tweeter are perfectly aligned so you'll hear all sound frequencies clearly

Grooved ducts

The grooves on the ducts reduce air friction so bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.

5-inch woofer

The 5-inch woofer creates powerful sound without distorting, even if you pump up the volume.

2-way sound mode - optimized for DJing and music production

There's no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM-50D-BT speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.

Easy to use with different DJ or production equipment

With RCA, mini jack, and the newly added TRS input terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.

Bluetooth® connectivity

The Bluetooth® technology included in the DM-50D-BT enables you to easily pair your smartphone, mobile device, or PC / Mac and play high-quality tracks wirelessly.

Specification

Main Features

• Type: 2-way bass reflex, active monitor speakers
• Tweeter: 3/4" (19 mm) soft dome
• Woofer: 5" (127 mm) fiberglass cones

Accessories

• DM-50D-BT
• Power cord
• Audio converter cable (3.5 mm stereo mini plug to RCA)
• Speaker cord
• Bottom cushion
• Quick Start Guide
• Precautions for Use
• Warranty

Specifications

• Dimensions (W x H x D): Lch: 175 x 262 x 257 mm / 6.89" x 10.32" x 10.12"
  Rch: 175 x 262 x 247 mm / 6.89" x 10.32" x 9.72"
• Weight: Lch: 3.9 kg / 8.6 lbs.
  Rch: 3.5 kg / 7.7 lbs.
• Power Supply: AC 100-240 V, 50 Hz / 60Hz
• Amplifier Output: Lch: 25 W / 4 Ω
  Rch: 25 W / 4 Ω
• Impedance: 10 kΩ
• Enclosure: Bass reflex
• Enclosure material: MDF vinyl laminate
• Power Consumption: 25 W
• Power consumption during standby mode: 0.3 W or less

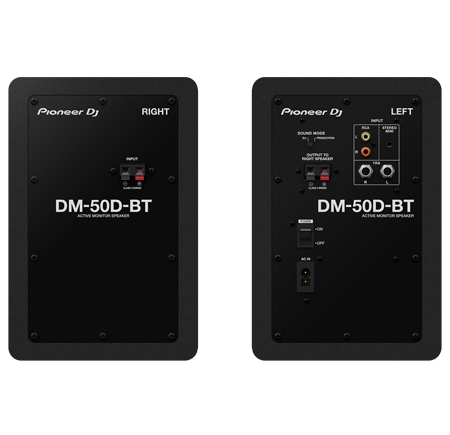

Terminals

• Inputs: 1/4" TRS jack x 1 (balanced input)
  RCA pin jack x 1 (unbalanced input)
  3.5 mm stereo mini jack x 1 (Unbalanced input)
• Outputs: 3.5 mm stereo mini jack x 1
