Peavey PVX™p Sub

Peavey Electronics® set the standard for affordable, feature-packed powered P.A. solutions more than four decades ago. The new Peavey PVX™ Series of active and passive loudspeakers are the culmination of decades of R&D and experience building the best portable, all-in-one audio solutions-bringing legendary Peavey performance and reliability to audio pros and musicians of all levels.

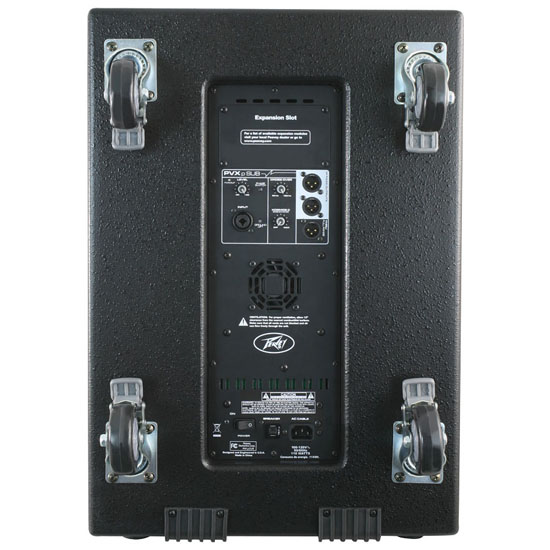

Continuing the PVX Series, the PVXp™ Sub from Peavey features an ultra-reliable power section that provides a total of 800 Watts of peak available power with DDT™ compression. This powered enclosure also features a 15" heavy-duty woofer with a 3" voice coil. The PVXp Sub provides a balanced input via a combination jack that accepts balanced TRS 1/4" input as well as a balanced XLR input. There are two balanced thru high pass XLR outputs, and a Full-Range XLR output. There is an adjustable Level control, as well as a combination LED indicator, that illuminates when power is on and when the "soft-limiting" DDT™ circuit is activated.

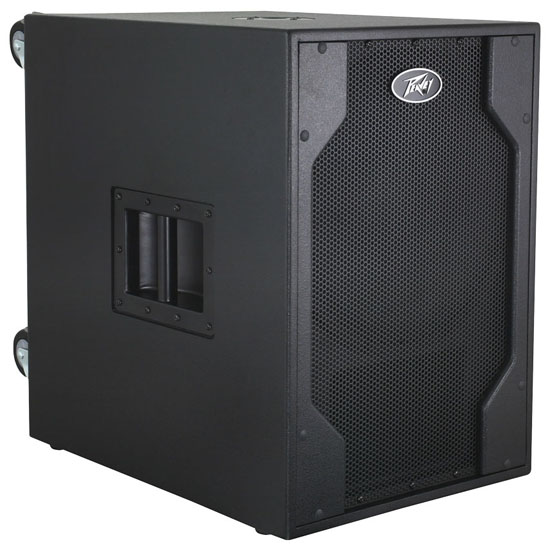

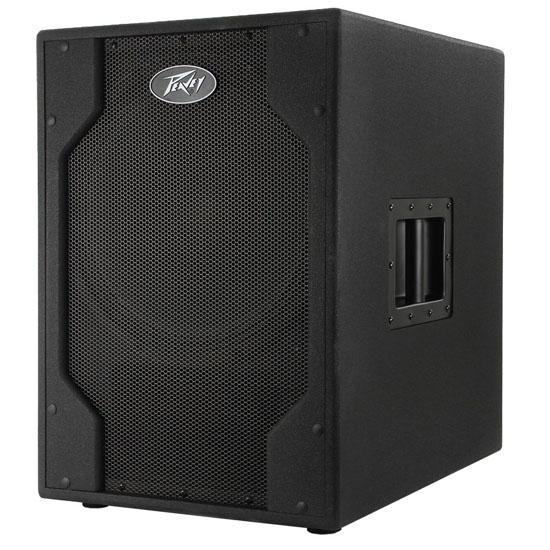

Peavey PVXp Sub is housed in a durable enclosure that includes a pole mount for additional PVX speakers, a black powder-coated steel grille provides driver protection and a clean, professional appearance.

Features:

• 15" heavy-duty woofer
• Internal line level low-pass/high-pass crossover network
• Fully adjustable KOSMOS® C for increased bass impact
• XLR/one quarter inch combo jack input
• Power amp has forced air cooling for maximum reliability

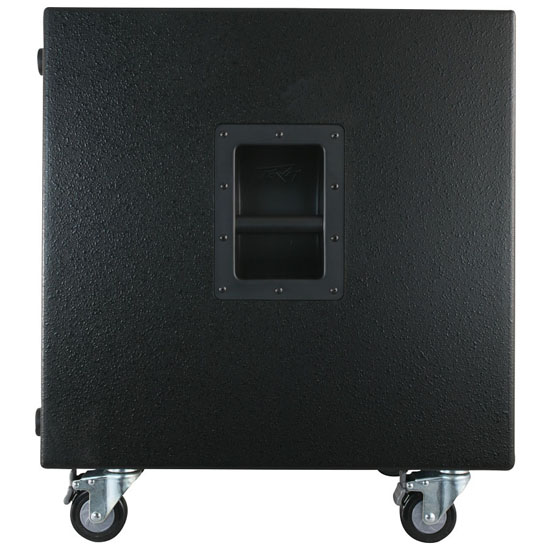

• Large heavy-duty locking casters
• Perforated steel grill
• Steel handles
• T-nut woofer mounting
• Rugged dado and rabbet construction plus internal braces for lightweight yet strong cabinet
• 850 Watts peak available power
• Compact dimensions for a 15" woofer based sub
• Threaded pole for top speaker mount
• Two high-pass XLR outputs, one full range thru XLR output
• Speaker pole included

Specifications

• Speaker Configuration : Subwoofer
• Speaker Type : Powered
• DSP On-Board : Yes
• Power Program : 470 Wx`
• Power Peak : 800 W
• Sensitivity (1W/1m) : 97 dB
• Maximum SPL : 127 dB
• Speaker Frequency Response : 48 Hz - 138 Hz (-6 dB)
• LF Driver : 15" Woofer, 3" Voice Coil
• Input Connectors : 1 x XLR-1/4" Combo
• Output Connectors : 3 x XLR
• Pole Mount : Yes (M20)
• Enclosure Material : MDF
• Color : Black
• Net Weight : 76.0 lbs (34.50 kg)
• Product Height : 24.25" (616 mm)
• Product Width : 16.75" (426 mm)
• Product Depth : 23.00" (584 mm)
• AC Power Input : 100-120VAC, 50-60 Hz & 220-240VAC, 50-60 Hz version available
