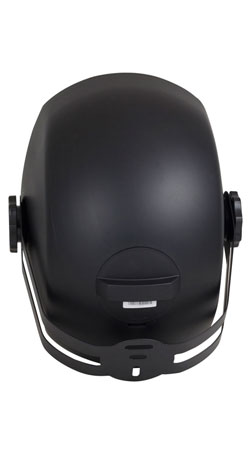

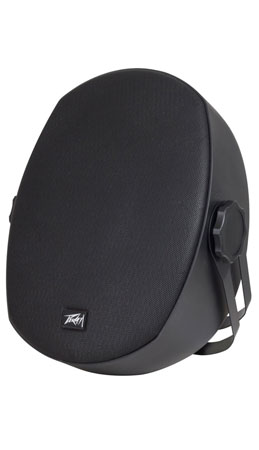

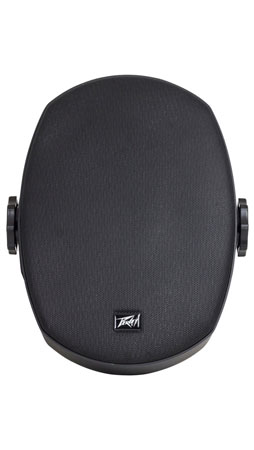

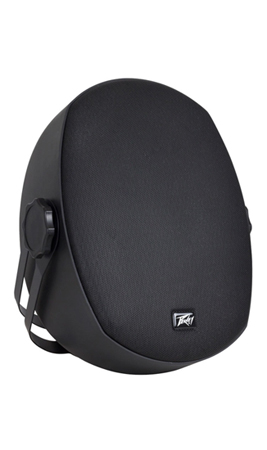

Peavey Impulse® 8c

The Impulse® 8c two-way speaker system is a lightweight-yet-rugged molded sound reinforcement enclosure. Designed for install applications, these weather resistant speakers are ideal for music playback or speech. These units are compatible with 100V, 70V or standard 8 Ohm inputs. For 100V, 70V transformer operation there are selectable power levels. For 100V setting, there is a 30W, 20W, 10W, and 5W tap selection.

Features Impulse 8c

• Two-way sound reinforcement enclosure
• 8" woofer
• 100V, 70V or 8 Ω operation
• Power Handling: 60 Watts
• Weather resistant
• Durable molded enclosure
• Includes steel wall mounting bracket
• Metal grille
• Impedance: 8 Ω
• Color: Black

Specification

• Speaker Configuration : Full Range 2-way
• Speaker Type : Non-Powered
• IP Rating : Weather Resistant
• Power RMS : 10, 20, 70 W @ 8 O - Selectable taps - 30, or 5 W @ 70/100V
• Nominal Impedance : 8 O
• Sensitivity (1W/1m) : 88 dB
• Maximum SPL : 106 dB
• Speaker Frequency Response : 50 Hz - 20 kHz
• Coverage (H x V) : 80° x 50°
• HF Driver : 1" Silk Dome Tweeter
• LF Driver : 8" Woofer
• Input Connectors : 2 x Binding Post
• Suspension Points : Steel Wall Mounting Bracket included
• Enclosure Material : Polypropylene
• Color : Black
• Net Weight : 12.0 lbs (5.50 kg)
• Product Height : 14.65" (372 mm)
• Product Width : 9.25" (235 mm)
• Product Depth : 10.55" (268 mm)
