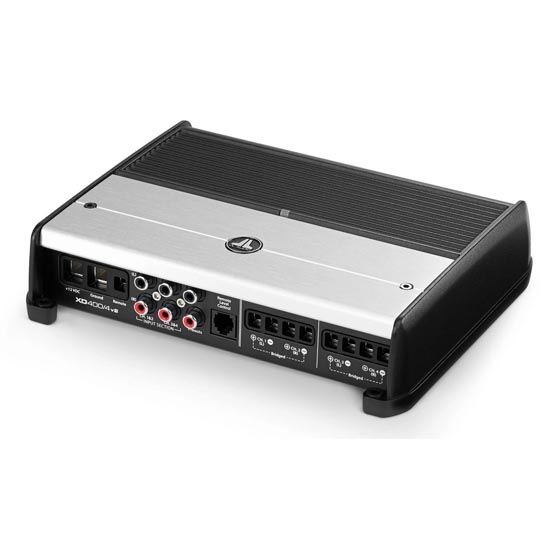

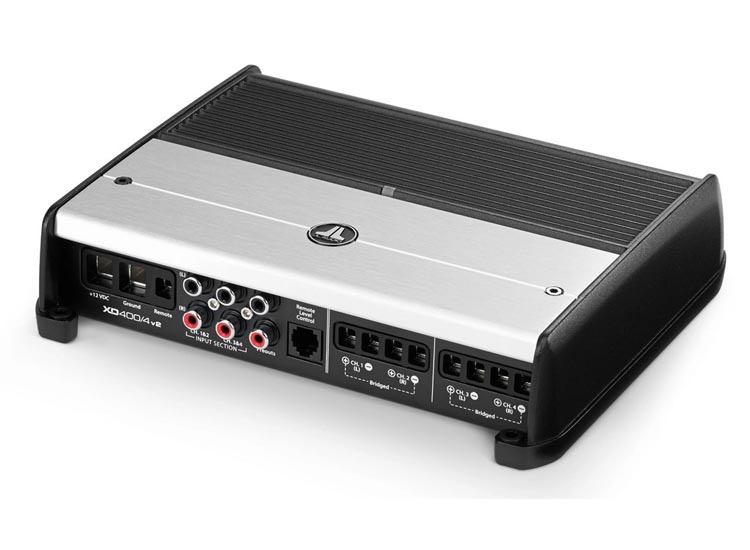

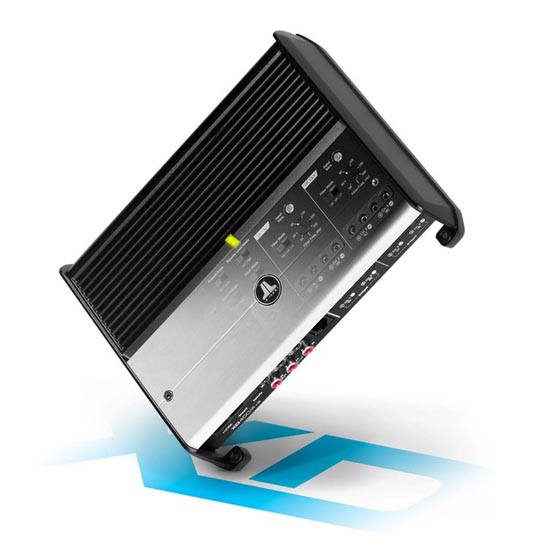

JL Audio XD400/4v2

4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V

This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

Use the XD400/4v2 in combination with our XD600/1 monoblock to build a 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the XD400/4v2 by itself to power two satellites, plus a subwoofer. With XD's, the possibilities are endless.

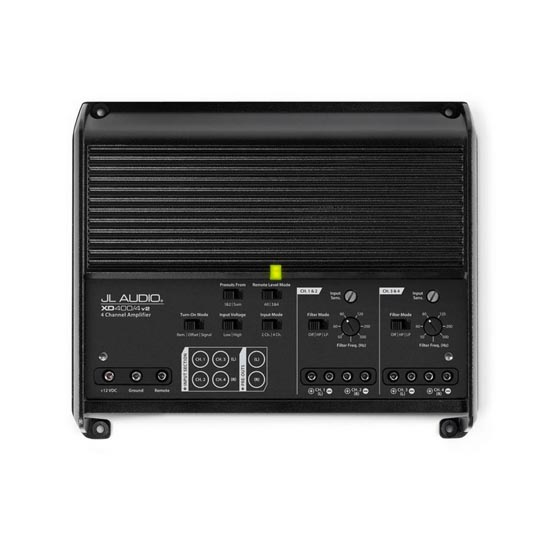

The XD400/4v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

The XD400/4v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

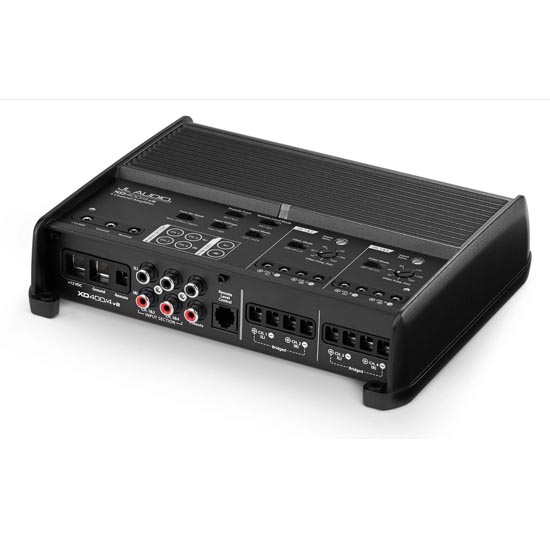

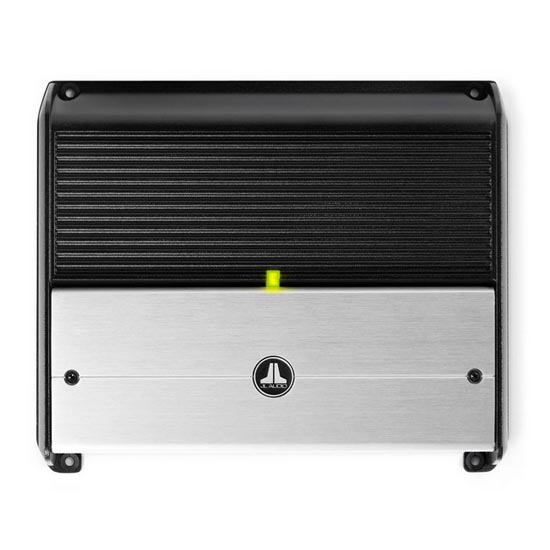

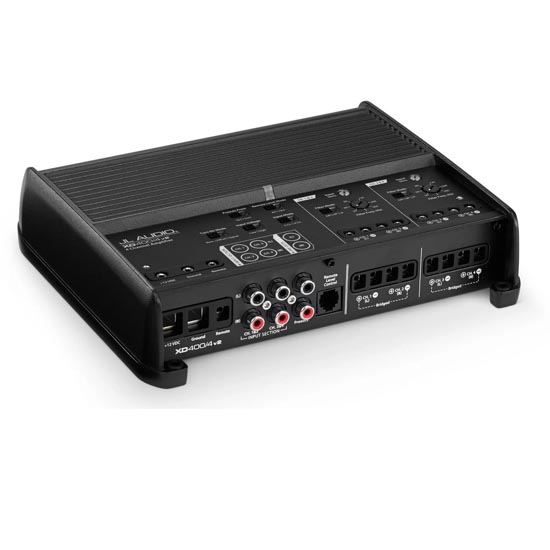

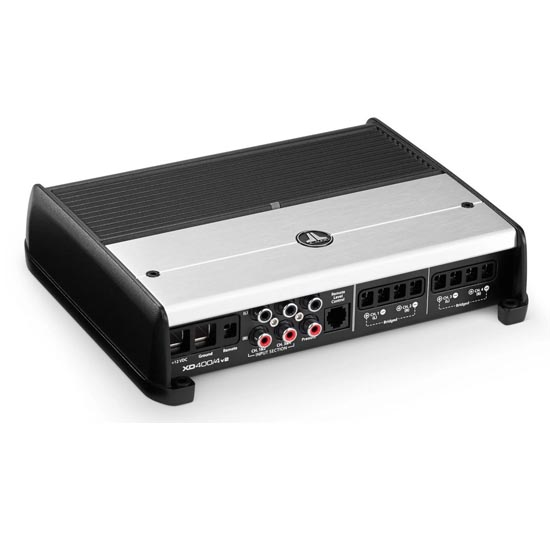

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Specification

Rated Continuous (RMS) Power @ 14.4 V

• @ 4 Ω : 75 W RMS x 4
• @ 2 Ω : 100 W RMS x 4
• Bridged @ 4Ω : 200 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V

• @ 4 Ω : 60 W RMS x 4
• @ 2 Ω : 90 W RMS x 4
• Bridged @ 4Ω : 180 W RMS x 2

General Specifications:

• Frequency Response : 12 Hz - 22 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W : >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >150 / 50 Hz
• Damping Factor @ 2 Ω : >75 / 50 Hz
• THD+N @ Rated Power : <1% @ 2 Ω per Ch.

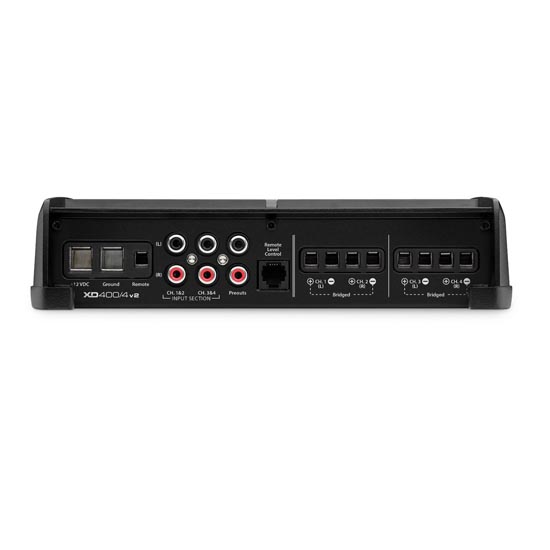

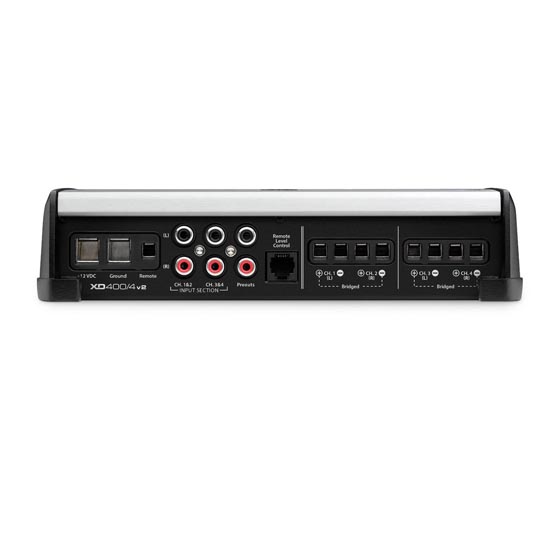

• Input Voltage Range @ RCA Inputs : Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 40 A (AFS, AGU or MaxiFuse™)

Signal Processing

• Filter Mode(s) : Low-Pass or High-Pass
• Filter Slope(s) : 12 dB/octave
• Filter Frequency Range : 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometers : Yes
• Filter Defeat Function : Yes
• Remote Level Control : Optional (HD-RLC)
• Remote Level Modes : 2 or All Channels
• Channel Input Mode Switch : Yes (2/4 ch.)
• Pass-Through Preamp Output : Buffered
• Source Channel Selection for PreOuts : Yes

Physical Specifications

• Height (H) : 2.05 in / 52 mm
• Width (W) : 8.52 in / 216 mm
• Depth (D) : 7.09 in / 180 mm
• Net Weight : 6.3 lb / 2.86 kg

Manuals:

• Download XD400/4v2 Product Manual
