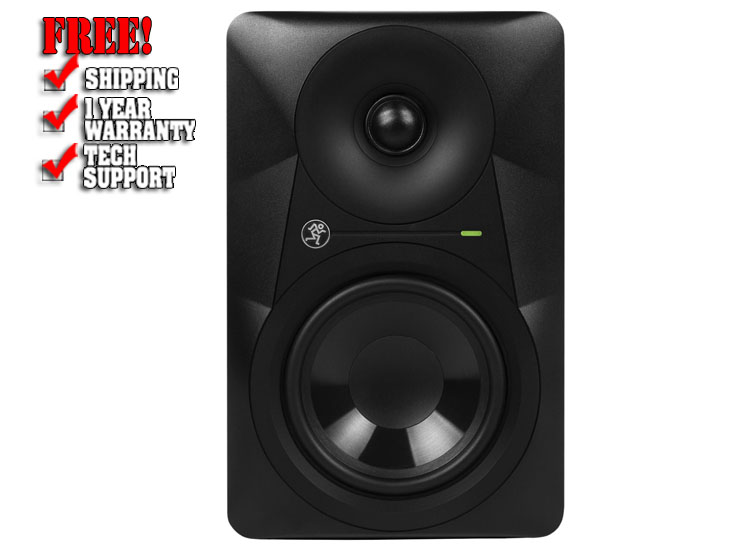

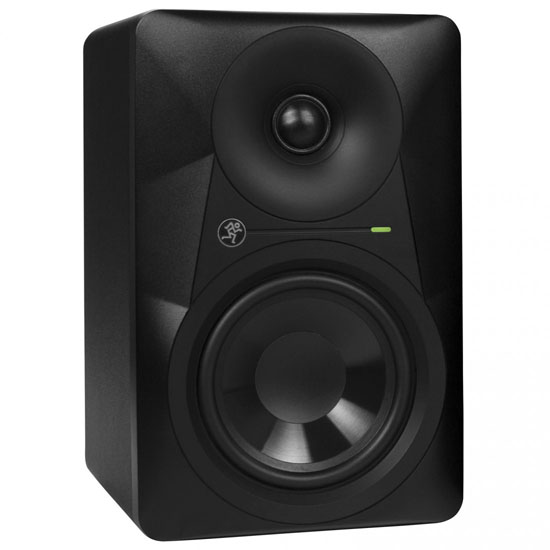

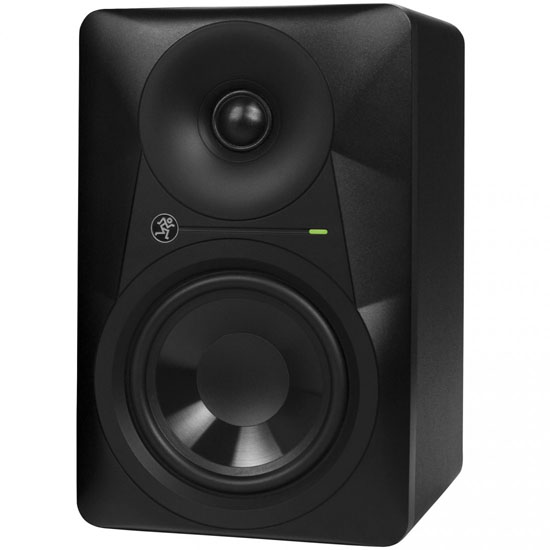

Mackie MR524 5" Powered Studio Monitor

Features:

• Designed for superior mix translation and accuracy for professional results in any studio
• Equipped with Mackie's proven logarithmic waveguide design
• Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
• Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
• 1" silk dome tweeter provides fast transient response for detailed high end and vocal clarity
• 5" polypropylene woofer delivers responsive, dynamic low frequency response
• 50 watts of bi-amplified Class A/B amplification
• Frequency response: 45 Hz – 20 kHz
• Optimize MR monitors for your mixing environment
• Adjustable acoustic space filters maintain flat response in typical placement configurations
• HF filter applies boost or cut to compensate for particularly dull or bright sounding rooms
• Professional all-wood cabinet design built to last and look great in any studio
• Custom designed internal bracing adds stiffness for reduced distortion and enhanced low frequency response

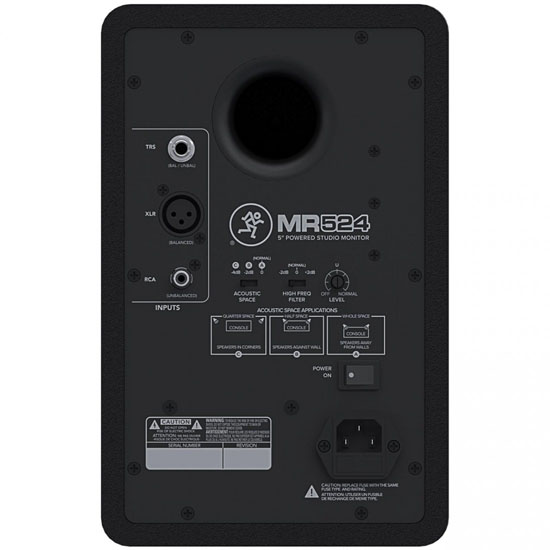

• Flexible inputs for simple connection to almost any audio source
• Acoustically optimized with sound-tightening acoustic absorption material
• Add the companion MRS10 studio subwoofer for powerful, deep low frequency extension perfect for electronic music, hip-hop and more

Specifications:

• Acoustic Performance:
  • Frequency Response (-3 dB): 57 Hz - 20 kHz
  • Frequency Response (-10 dB): 45 Hz - 23kHz
  • Sound Pressure Level @ 1 meter, +4 dBu into Balanced Input: 102 dB SPL @ 1m
  • Maximum SPL Per Pair: 108 dB SPL @ 1m
• Transducers:
  • Low Frequency : 5.25" / 133 mm polypropylene woofer
  • High Frequency : Neodymium magnet driven 1" / 25 mm silk dome tweeter
• Amplifiers
  • Low Frequency Power : 40 watts, 4 O load, 80 watts peak
  • High Frequency Power : 25 watts, 6 O load, 50 watts peak
  • Type: Monolithic IC, Class AB with DMOS power stage
• Electronic Crossover
  • Crossover Type : 24 dB/octave
  • Crossover Frequency : 2 kHz
  • Sensitivity : +4 dBu at 300 HZ for fulloutput
  • Input Impedance : 20 kO, balanced bridging; 10 kO unbalanced
• Equalization
  • High Frequency EQ : ±2 dB @ 3kHz and above
• AC Power Requirements:
  • Power Requirements: ~120 V, 60 Hz, ~220 V - 240 V, ~100V, 50/60 Hz
  • Note: MR Monitors do not support multiple voltage configurations. Make sure the voltage rating for your particular model (as indicated on the rear panel near the IEC socket) corresponds with your local AC mains voltage.
  • AC Connector:3-pin IEC 250 VAC, 15 A male
  • Fuse:115 VAC: T 1.6 AL / 250 V, 230 VAC: T 800 mAL / 250 V
  • Power Consumption:120 watts with music, loud mix 10 watts quiescent (idle)
• Physical Properties
  • Enclosure:0.47" / 12 mm thick MDF with 0.83" / 21 mm MDF front Panel
  • Height:11.1" / 281 mm
  • Width:7.1" / 180 mm
  • Depth:8.7" / 221 mm
  • Weight:10.2 lb / 4.6 kg
  • Damping:Adiabatic batting

What's in the box?

• (1) Mackie MR524 5" Powered Studio Monitor
• (1) IEC Power Cord
