The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily.

Features:

• 1460 W Peak-power and 125 dB max. SPL
• Powerful bass reproduction with 2 x 8" subwoofer

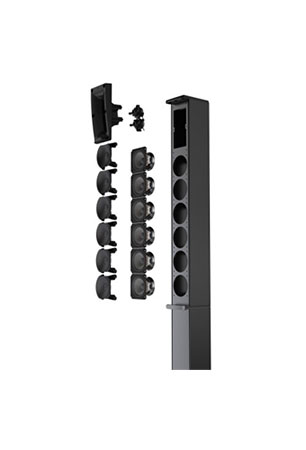

• Balanced mids thanks to 6 x 3.5" full-range speakers
• Precise and silky highs with 2 x 1" high-frequency drivers
• Cardioid column for controlled low-mid and midrange sound dispersion
• BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
• Optimised bass-reflex design improves bass response and reduces air flow noise
• Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups
• Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume
• AAC coding for HD Bluetooth® 5.0 streaming
• Automatic setup detection for quick and easy operation

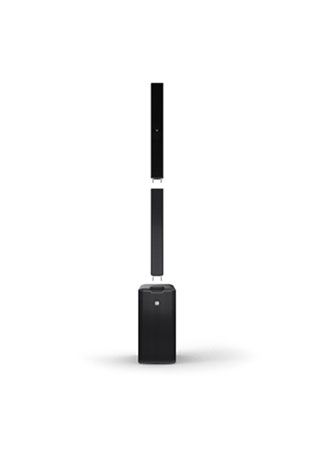

• Fast and simple assembly without stands or cables
• Rugged birch plywood subwoofer housing with durable polyurea-coating
• Lightweight, powder-coated aluminium column housing

Specifications

General

• Product type PA Complete Systems
• Type Powered
• Color Black
• Max. SPL (Peak) 125 dB
• Frequency response (-10dB) 39 Hz - 20000 Hz
• Dispersion (H x V) 120° x 30 °
• Total Height 2052 mm
• Weight 30,7 kg
• Features Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer

• Woofer dimensions 2 x 8 "
• Woofer dimensions (mm) 2 x 203 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• Woofer voice coil 2 "
• Woofer voice coil (mm) 50.8 mm
• Cabinet construction Bass Reflex
• Housing material 15 mm Birch Plywood
• Cabinet surface Polyurea
• Dimensions Subwoofer (W x H x D) 305 x 607 x 403 mm
• Subwoofer weight 20.5 kg

Mid/Hi System

• Midrange dimensions 6 x 3.5 "
• Midrange dimensions (mm) 6 x 89 mm
• Midrange magnet Ferrite
• Midrange brand Custom-made
• Midrange voice coil 0.75 "
• Midrange voice coil 19 mm
• Tweeter dimensions 2 x 1 "
• Tweeter dimensions (mm) 2 x 25.4 mm
• Tweeter magnet Neodymium
• Tweeter brand Custom-made
• Tweeter voice coil 1 "
• Tweeter voice coil (mm) 25.4 mm
• Wave Guide CD Waveguide
• Loudspeaker inputs 1
• Speaker input connections Custom-made multipin
• Cabinet construction mid/high Passive Cardioid
• Mid/Hi system cabinet material Aluminium
• Mid/Hi system cabinet surface Powder-coated
• Mid/Hi system width 103 mm
• Mid/Hi system height 1460 mm
• Mid/Hi system depth 135 mm
• Mid/Hi system weight 10.2 kg

Amplifier module (integrated in subwoofer)

• Amplifier Class D
• System output (RMS) 730 W
• System output (Peak) 1460 W
• Protection circuits DC protection, Multiband limiter, short circuit, thermal protection
• Cooling Convection
• Controls Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
• Indicators Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
• Mains connector IEC power cable (included)
• Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
• Fuse T 3.15AL / 250 V
• Power consumption 300 W
• Ambient temperature (operating) 0 - 40 °C
• Relative Humidity < 80% (non-condensing)
• Line Inputs 2
• Line Input Connectors Combo XLR / TRS
• Line Outputs 1 x Sub OUT, 2 x THRU
• Line Output Connectors XLR male
• Number of speaker outputs 1
• Loudspeaker Output Connectors Custom-made multipin
• Bluetooth Standard A2DP
• Bluetooth Audio Decoder AAC, SBC

DSP characteristics

• Bit depth AD/DA converter 24 bit
• Sampling frequency 48 kHz
