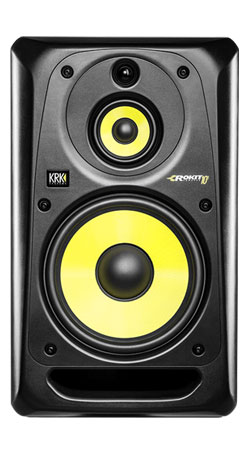

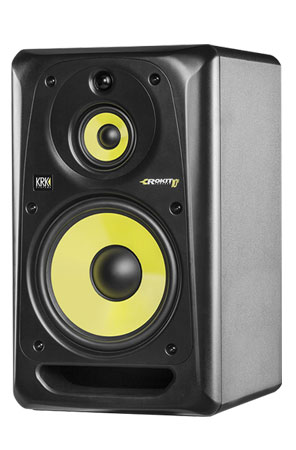

KRK ROKIT 10-3 G3

The largest Monitor of the ROKIT Family, the KRK ROKIT 10-3 G3 will deliver every detail of performance thru its ample headroom and tight bass tuning.

Features:

• True 3-Way Design enabling the most important part of the frequency spectrum to be reproduced by a separate midrange driver, resulting in an incredibly neutral midrange response.
• Axis Control - The monitors can be placed and positioned vertically and horizontally, enabled by the rotatable MF/HF Baffle.
• Mid-Field - The Rokit Powered 10-3 is a mid-field monitor, with the optimal operating distance of 1m-4m depending on preference, room size, geometry, orientation, and configuration.
• Curved Baffle virtually eliminates diffraction distortion
• Front-firing Port is shape optimized to reduce turbulence and reduce boundary coupling.
• Tweeter Waveguide design provides amazing detail and imaging by optimizing directivity and phase response.
• 1" Neodymium Soft Dome Tweeter This tweeter design utilizes a silk dome for detailed high frequency reproduction.
• Ferro fluid Damping / Cooling The properties of ferro-fluid are used to control distortion and heat dissipation of the tweeter.
• Glass Aramid Composite creates very rigid Woofer and Midrange cones for excellent transient response and accurate vocal reproduction.
• KRK High Efficiency Tri-Amp a triple amplification system provides discrete low-distortion power for each driver. While our active three-way crossover systems provide smooth and accurate frequency response.
• Thermal and Overload / Clip Protection are integral to the design enhancing the safety and ensuring long life of the product.

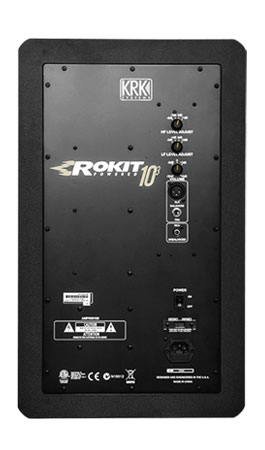

• Volume Control on rear of unit allows a high resolution gain range from -30 dB to +6 dB.
• Total Connectivity - The Rokit Powered 10-3 is fitted with dedicated balanced XLR, and 1/4" Line inputs and unbalanced RCA inputs.

Technical Specifications:

• Configuration:3-Way
• System type:Active Studio Monitor
• Low-Frequency:10" Aramid Glass Composite woofer
• Mid-Frequency:4" Aramid Glass Composite Midrange
• High-Frequency:1" soft dome tweeter
• Frequency Response:31Hz - 20kHz
• Max Peak SPL:113 dB
• Amplifier Class:Class A-B
• Power Output:140W
• High Frequency:30W
• Mid-Frequency:30W
• Low Frequency:80W
• Input Impedance (Ohms):10 K Ohm balanced
• HF Level Adjust:-2dB, -1dB, 0, +1dB
• System Volume:(-30dB - +6dB)
• Indicators:Power
• Input Connectors: Unbalanced RCA
      Balanced 1/4" TRS
      Balanced XLR
• AC Power Input: Selectable 110V-120V / 220V-240V (50Hz - 60Hz)
  or 100V (50Hz - 60 Hz)
• Enclosure Construction:MDF
• Finish:Black vinyl wrap
• Port Configuration:Front firing slot port
• Dimensions (H x W x D): 21.5" (545mm) x 12.8" (325mm) x 14.4" (365mm)
• Weight:46 Lbs. (21 Kg.)
• Cutsheet
