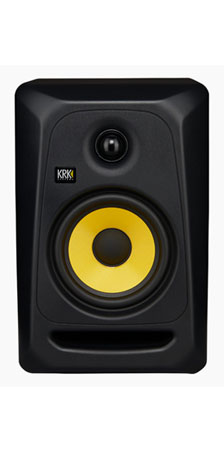

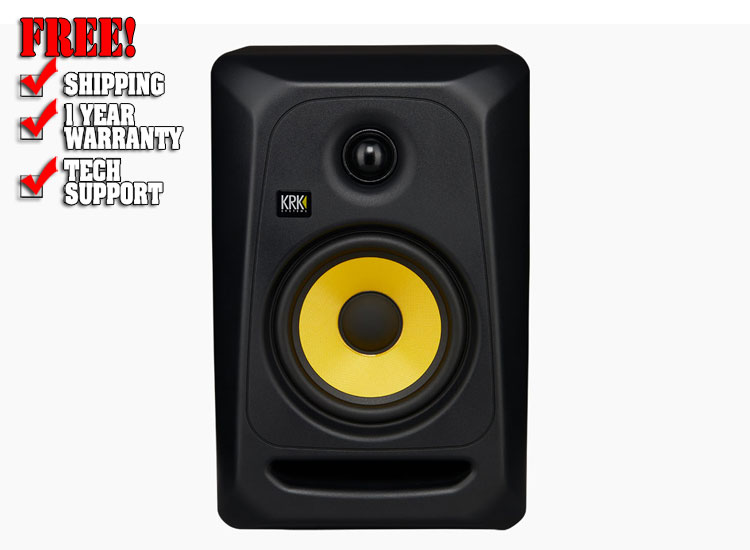

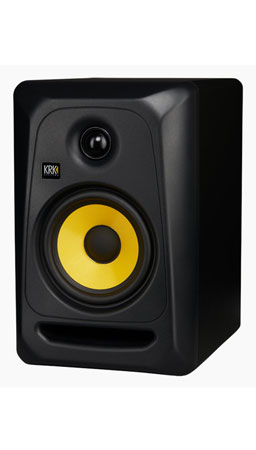

KRK CLASSIC 5

Professional Studio Monitor

Building on KRK's legacy of sonic accuracy and performance, the new KRK CLASSIC 5 powered studio monitors incorporate over 30 years of innovation from the world's leading studio monitor manufacturer. Borrowing concepts from previous ROKIT lines-some of the most used studio monitors in the world, the CLASSIC 5 defaults to a new flat frequency solution towards more critical listening-translating into more accurate mixes. With the optional ability to engage the +2 dB KRK Bass Boost, the CLASSIC 5 can also provide the enhanced bass response and sound that music creators around the world have loved for years.

The CLASSIC 5 is an active (self-powered) two-way studio monitor that utilizes a 1" textile soft dome tweeter paired with a 5" glass aramid woofer. The built-in power amplifiers provide a total of 50 watts of power, with a 30 watt amp driving the woofer, and a 20 watt amp for the tweeter.

The largest Monitor of the ROKIT Family, the KRK CLASSIC 5 will deliver every detail of performance thru its ample headroom and tight bass tuning.

Classic 5 Features

• 50 watt, 5" active studio monitor / Self-powered. Amps matched to drivers; no external amp hassles
• Custom bi-amped, class A/B amplifiers / Provide high headroom and low distortion
• Heavy-duty enclosure / Durable
• Front-firing port / Allows placement flexibility (i.e. near walls) without interference from a rear-firing port
• Dedicated low and high frequency level adjustment controls / Allows you to optimize the monitor's response to better match the room acoustics and the user's personal preferences
• 5" glass aramid composite woofer / Rigid and lightweight driver for optimal sound quality
• 1" textile soft dome tweeter / Smooth high frequency response with excellent HF extension to 34.5 kHz
• Bass extension to 46 Hz / Excellent low frequency response for such a compact monitor

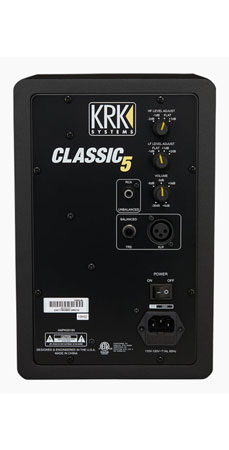

• Universal connectivity with XLR, 1/4" TRS, and RCA inputs / Interfaces with just about any mixer and/or audio interface
• Volume control / Allows you to fine-tune your overall monitoring level
• System-optimized auto-limiter / Prevents unexpected peaks from damaging the speakers and provides consistency and clarity at high volumes
• Foam isolation pads on bottom / Protects the surface the monitors are sitting on and provides isolation for improved clarity
• 101 dB Max Peak SPL

Technical Specification

• Configuration 2-Way
• System type Active Studio Monitor
• Low-Frequency Transducer 5" Glass Aramid Woofer
• High-Frequency Transducer 1" Textile Soft Dome Tweeter
• Frequency Response (+/- 3dB) 56Hz - 30kHz
• Frequency Range (-10dB) 46Hz - 34.5kHz
• Crossover Frequency 2.6kHz
• Average Beamwidth (Horizontal) 133 Degrees (900 Hz - 9 kHz)
• Average Beamwidth (Vertcal) 90 Degrees (900 Hz - 9 kHz)
• Max Peak SPL (With Limiter) 101 dB
• Max Average SPL (With Limiter) 98 dB
• Max Calculated SPL 99 dB
• Amplifiers Class A-B
• High Frequency Power Output (Watts) 20 Watts
• Low Frequency Power Output (Watts) 30 Watts
• Amplifier Distortion (THD+N) < 0.1% THD+N 20 Hz - 20 kHz (-3 dB Max Power)
• Input Impedance (Ohms) 10 KO Balanced / 7 KO Unbalanced
• Input Sensitivity 0 dBu Balanced / -15 dBV Unbalanced
• SNR (Signal to Noise Ratio) > 94 dB
• Controls System Volume -30 dB - +6 dB
• LF Level Adjust (-1 dB, FLAT, +1 dB, +2 dB) Below 200 Hz
• HF Level Adjust (-2 dB, -1 dB, FLAT, +1 dB) Above 2.6 kHz
• Indicators Power
• Input Connectors RCA, Balanced 1/4" TRS, Balanced XLR
• Ouput Connectors N/A
• AC Fuse (Slow Blow / Time Lag) 120 VAC (T1AL, 250 V) 240 VAC (T500mAL, 250 V)
• Idle (Mute) AC Power Consumption 14 Watts (NA SKU)
• Idle (Standby) AC Power Consumption < 0.5 Watts
• Maximum AC Power Consumption 79 Watts (NA SKU)
• Enclosure Construction 15 mm MDF / High Impact Polystyrene
• Finish Black Vinyl Wrap
• Grille N/A
• Hardware Foam Isolation Pads
• Product Dimensions (H x W x D) 9.68" (290 mm) x 7.40" (226 mm) x 11.20" (332 mm)
• Product Weight 12.95 lb (5.87 kg)
